| Product Overview |
|---|

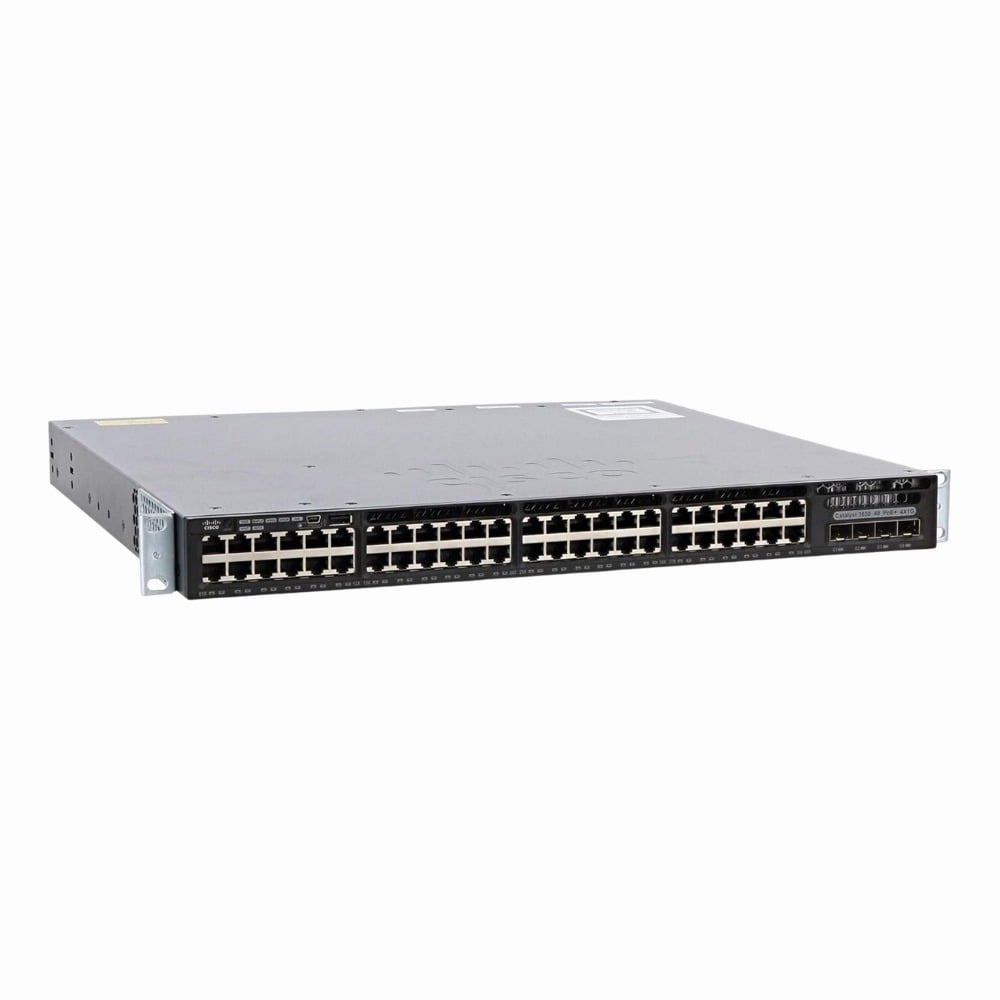

The Cisco Catalyst 3650-48PD switch is designed to deliver both data connectivity and power through its 48 PoE+ ports, making it a solid choice for enterprise network environments. Its Layer 3 capabilities allow it to handle routing tasks, which supports more complex network setups beyond simple switching. With four SFP uplink ports, it fits well where fast and flexible connections to the core network are needed, often found in wiring closets or data centers managing diverse connected devices. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | EDU-C3650-48PD-S |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 x RJ-45 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, RJ-45, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T,1000Base-X |
| UpLink Ports | 4 x SFP (1000Base-X) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 77.4 Mpps |
| DRAM | 4 GB |
| Flash Memory | 2 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 entries (approx.) |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD |
| Remote Protocols | Yes |
| Management Interfaces | Console (RJ-45), USB Console, SSH, Telnet, SNMPv2/v3, Web UI (HTTP/HTTPS), RMON |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMPv2c,SNMPv3,RESTCONF |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 16.1 in (44 x 445 x 410 mm) |
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Product Description |
|---|
The Cisco Catalyst 3650 Series switch provides a reliable networking solution for medium to large enterprise environments. It features Power over Ethernet Plus (PoE+) support across all 48 ports, enabling it to supply power to devices like IP phones, wireless access points, and security cameras without additional cabling. This switch is often found in enterprise wiring closets or data centers where high performance and scalability are essential. Built for network administrators and IT teams, the C3650-48PD supports advanced Layer 3 features, making it suitable for routing between VLANs and supporting complex network topologies. Its combination of gigabit Ethernet ports and fiber uplinks helps maintain efficient communication across diverse network segments. Key Features
In practice, this switch is commonly deployed in enterprise networks to connect end devices while managing traffic efficiently across different network layers. Its PoE+ capability simplifies installations by combining power and data over a single cable, reducing setup complexity. Network teams rely on it to maintain stable and scalable infrastructure that supports both current devices and future expansions. |
