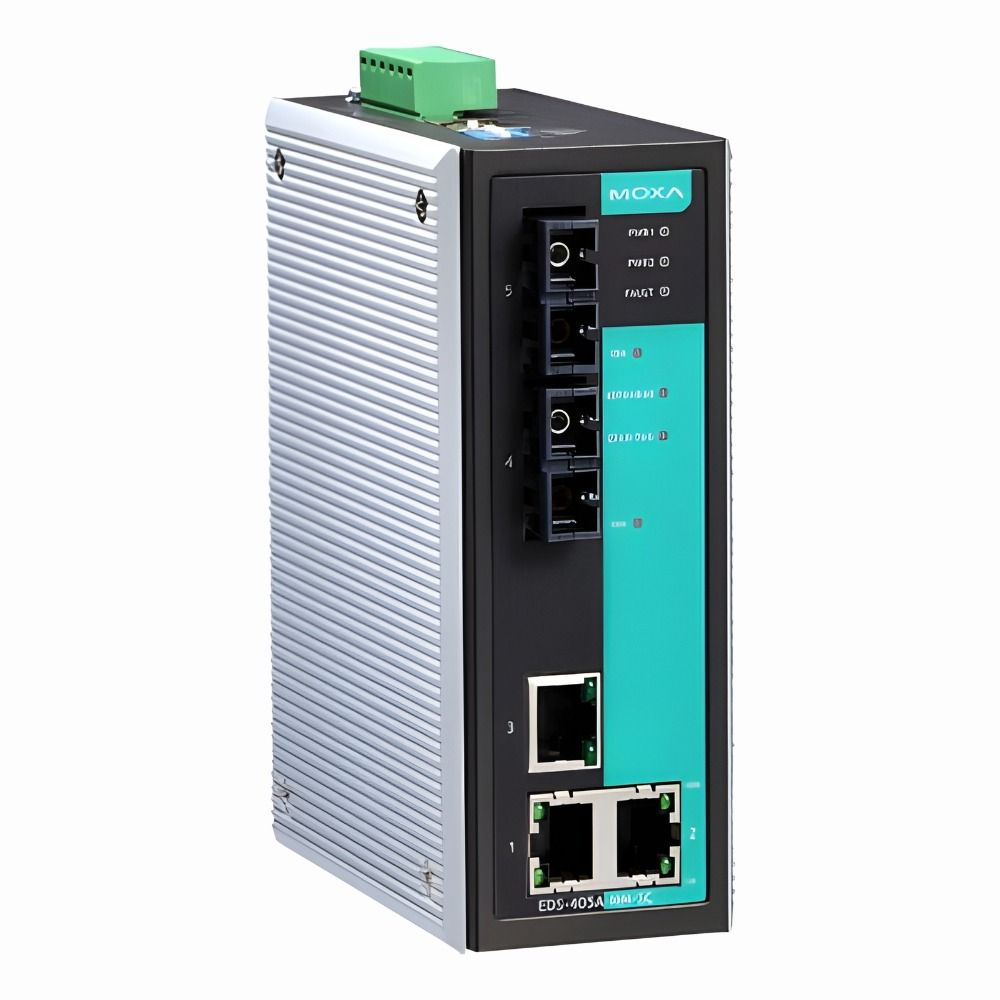

Name: EDS-405A-SS-SC Moxa 3x10/100BaseT(X) Managed Switch 2x100BaseFX SM SC
Brand: Moxa
SKU: EDS-405A-SS-SC
Price: 1245.75 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Overview
The EDS-405A-SS-SC managed switch combines three 10/100BaseT(X) copper ports with two 100BaseFX single-mode fiber ports featuring SC connectors. It fits into industrial networks where both short-range and long-distance Ethernet connections are needed, giving users control over traffic and stable communication across varying environments.

General Information
Brand	Moxa
Part Number	EDS-405A-SS-SC
Condition	Refurbished

Technical Information
Switch Ports	3 x 10/100BaseT(X) (RJ45), 2 x 100BaseFX (SC, single-mode)
Number of Ports	5-Ports
Port Speed	10/100 Mbps, 100 Mbps (fiber)
Switching Capacity	1 Gbps
Switch Forwarding Rate	~1.95 Mpps (64-byte packets)
Max VLANs Supported	4094
Connector Type	RJ45 (copper), SC (single-mode fiber)

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Security	SNMP v1/v2c, 802.1X, Port security, RMON, Storm control
Remote Management Protocol	SNMP, HTTP/HTTPS (Web), Telnet, SSH, CLI (console)

Power & Cooling
Fans	Fanless

Physical Characteristics
Weight	4.00
Operating Temperature	-10 to 60 °C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w (RSTP), IEEE 802.1p, IEEE 802.1Q

Product Description
The EDS-405A-SS-SC is a compact managed Ethernet switch designed for industrial networking applications. It offers a combination of copper and fiber optic ports, enabling both standard and long-distance connections. This switch is often found in automation systems, transportation networks, and energy sectors where reliable, manageable Ethernet connectivity is critical. Built for engineers and network administrators, it provides control over network traffic and supports essential monitoring features. Its rugged design ensures consistent performance even in demanding environments. Key Features Flexible port arrangement with both copper and fiber interfaces Single-mode fiber ports with SC connectors for extended reach Supports managed switch functions like VLAN and QoS Designed to operate reliably in industrial settings Easy integration into existing Ethernet networks This switch is typically deployed in factories, transportation hubs, and outdoor communication sites. It helps maintain network stability by allowing precise traffic management and reducing downtime. Users benefit from its balance of performance and ruggedness without the complexity of high-end models.

Use Cases
The EDS-405A-SS-SC is ideal for industrial automation and control systems requiring a mix of copper and fiber optic connectivity, especially where network stability and long-distance communication are crucial. Users in manufacturing plants, transportation systems, and remote monitoring installations will find this switch beneficial for maintaining reliable and manageable networks in challenging conditions. How It's Used: Connecting factory floor devices to centralized control systems in manufacturing environments with both short copper and long-distance fiber links. Integrating traffic management and surveillance systems in transportation infrastructure requiring robust and scalable network segmentation. Extending network connectivity to remote sites and substations in energy and utility networks using single-mode fiber for long reach. Supporting edge computing nodes in industrial IoT setups where compact managed switches ensure low-latency data processing near sensor arrays. Building resilient communication links in water treatment plants or hazardous locations where electromagnetic interference requires fiber optic cabling. By facilitating a blend of copper and fiber connections with management capabilities, the EDS-405A-SS-SC enables operators to optimize network performance and expand infrastructure without compromising reliability. This versatility supports operational efficiency and scalability in complex industrial environments.
