EAP783 TP-Link BE22000 Tri-Band Wi-Fi 7 Ceiling-Mount Access Point

SKU:
EAP783-BE22000
Weight: 4.00 lbs
Condition: Refurbished

✔ Tri-band Wi-Fi 7 access point with speeds up to 22 Gbps
✔ Supports 2.4 GHz, 5 GHz, and 6 GHz frequency bands
✔ Advanced security with WPA3 and 24 SSIDs for guest networks
✔ Centralized cloud management via Omada SDN Controller or app

In stock

$580.00

Product Overview

The TP-Link Omada EAP783 is a tri-band Wi-Fi 7 access point designed for high-density enterprise networks. Offering speeds of up to 22 Gbps and advanced features like Multi-Link Operation, Omada Mesh Technology, and WPA3 security, it ensures seamless and secure connectivity. With centralized cloud management and support for PoE++, it is an efficient, powerful, and scalable networking solution.

General Information

Brand TP-Link
Part Number EAP783
Product Type Wireless Access Points
Series Omada

Technical Information

Data Rate 6 GHz: Up to 11520 Mbps
5 GHz: Up to 8640 Mbps
2.4 GHz: Up to 1376 Mbps
WiFi Standard IEEE 802.11 a/b/g/n/ac/ax/be
Security WPA3, Secure Guest Network with up to 24 SSIDs, Rogue AP Detection
Antenna Internal Omni
2.4 GHz: 4× 4 dBi
5 GHz: 4× 5.5 dBi
6 GHz: 4× 5 dBi
Ethernet Port 2 x 10 Gbps Ethernet Ports (20 Gbps Aggregation Speed)
Compatibility Omada SDN Controllers, Omada Mesh Systems, Any IEEE 802.11 a/b/g/n/ac/ax/be Devices
Operating Modes Access Point, Mesh Extender, Repeater
Management Centralized Cloud Management via Omada SDN Controller, Omada App

Physical Characteristics

Dimensions 11 x 11 x 1.8" / 280 x 280 x 46.5 mm
Weight 4.00
Condition Refurbished

Miscellaneous

Eco Friendly Yes
Compliance Standards RoHS, CE, FCC


Product Description

The TP-Link EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point is a cutting-edge solution for delivering fast and reliable wireless connectivity in high-density environments. This high-performance access point supports tri-band Wi-Fi 7 technology, providing blazing speeds of up to 11520 Mbps on the 6 GHz band, 8640 Mbps on the 5 GHz band, and 1376 Mbps on the 2.4 GHz band.

Key features:

  • Multi-Link Operation (MLO): Ensures seamless connectivity across multiple bands.
  • 320 MHz Bandwidth: Delivers ultra-fast data transmission.
  • 6 GHz Support: Expands available channels for less congestion and higher speeds.
  • 4K-QAM: Enhances data density for more efficient communication.
  • Multi-RUs & OFDMA: Optimizes resource allocation for better performance.
  • MU-MIMO & BSS Color: Improves capacity and reduces interference.

Designed for demanding bandwidth-intensive applications, the EAP783 BE22000 is perfect for environments with high user density. It offers centralized management, mesh networking capabilities, and AI roaming for a consistently smooth user experience.

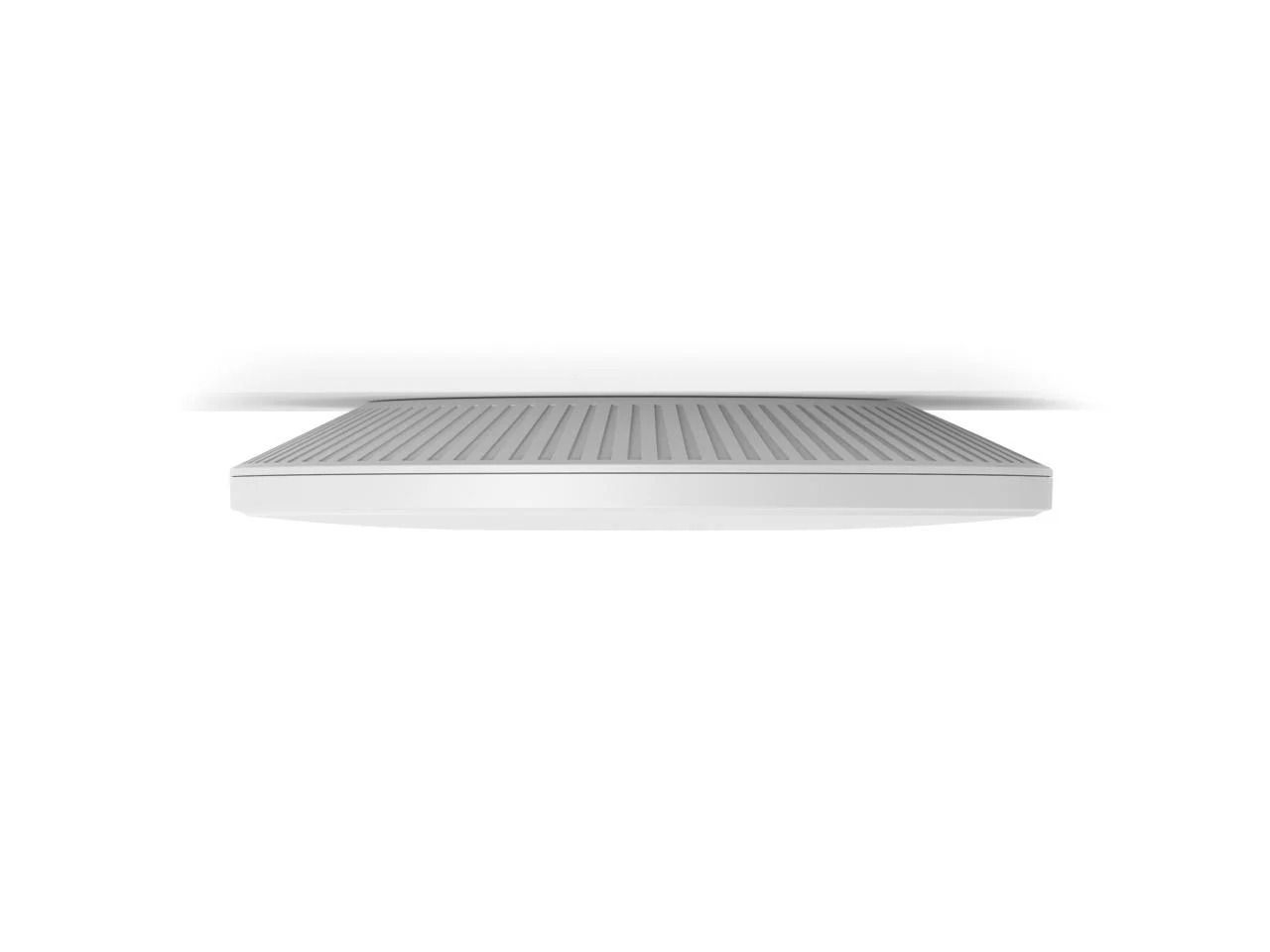

Mount it on ceilings or walls to blend seamlessly with any interior decor, making it an ideal choice for both professional and residential settings.


Use Cases

The TP-Link Omada EAP783 is ideal for deployment in high-density enterprise environments where robust and seamless wireless connectivity is critical. It benefits IT administrators managing complex networks requiring scalable bandwidth solutions across multiple frequency bands.

How It's Used:

  • Deployed in corporate headquarters to support dense user populations with high-bandwidth applications such as video conferencing and cloud collaboration.
  • Integrated into large campus networks for universities or research institutions to provide reliable Wi-Fi 7 connectivity across academic buildings.
  • Used in hospitality venues like hotels to deliver secure and high-speed wireless access to guests and staff simultaneously.
  • Implemented in data centers or edge computing nodes to maintain uninterrupted wireless access for operational devices and monitoring systems.
  • Applied within co-working spaces to handle diverse workloads and multiple virtual networks through extensive SSID support.
  • Utilized in retail environments with high foot traffic to ensure low latency and secure guest Wi-Fi alongside business-critical communications.

This access point supports efficient network scalability and operational continuity by leveraging centralized cloud management and PoE++ power delivery, making it suitable for evolving enterprise network demands.
