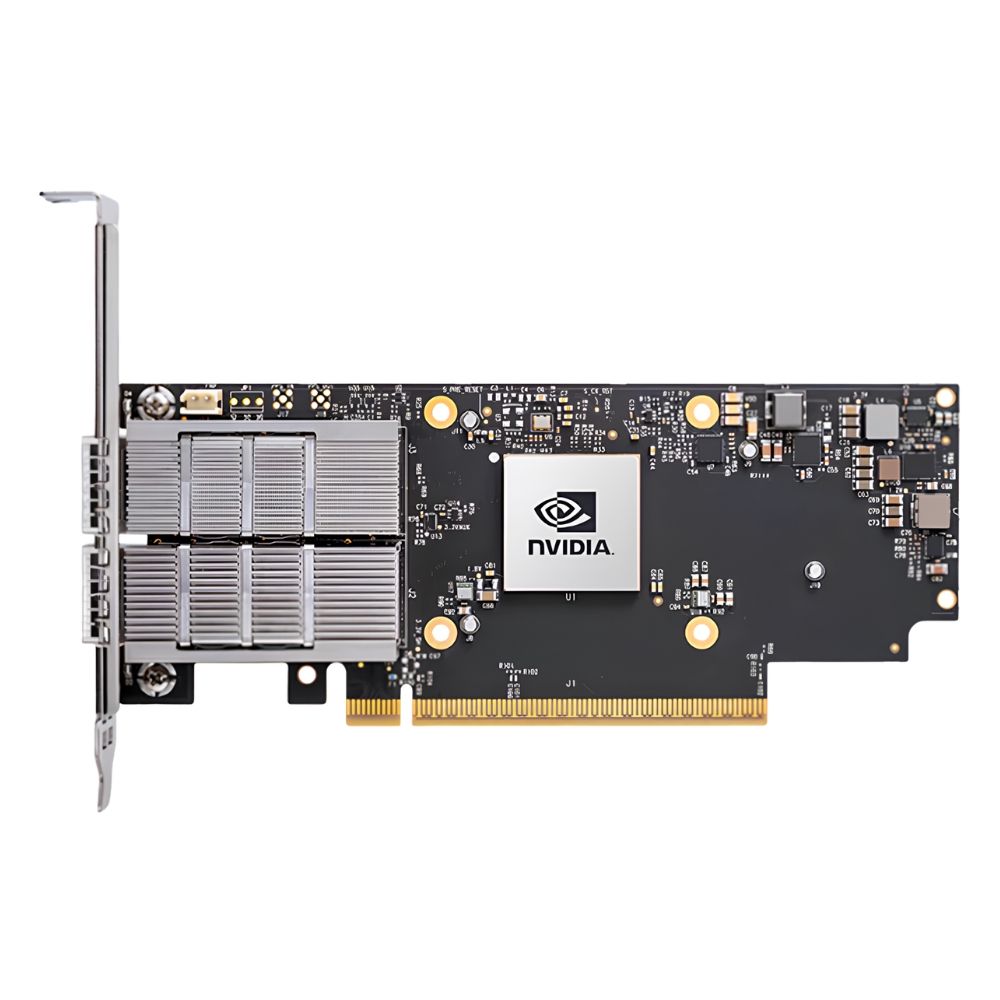

Name: DHJP4 Dell X485V 400Gbps NDR InfiniBand OSFP PCIe 5.0 x16 Adapter
Brand: Dell
SKU: DHJP4
Price: 1340.00 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The Dell X485V adapter is a single-port 400Gb/s NDR InfiniBand network card designed for use in servers with PCIe 5.0 x16 slots. It features the OSFP form factor and supports Secure Boot, aligning with security protocols while omitting onboard cryptographic functions. It is a full-height adapter suited for standard server installations.

General Information
Brand	Dell

Technical Information
Product Type	Network Interface Card
Chipset/Controller	NVIDIA ConnectX-7
Virtualization Support	SR-IOV, vNIC
Data Rate (Speed)	400GbE
Data Center Bridging	No
Interface (Bus)	PCIe 5.0
Number of Ports	1-Port
OS Compatibility	VMware ESXi 8.0, RHEL
Network Management	SNMP, IPMI
Offload Support	RDMA, RoCE v2, PXE Boot, Jumbo Frames
Bracket Height	Full Height (Standard)

Connectivity & Physical
Form Factor	Full Height Full Length
Port Type	OSFP
Weight	3.00
Condition	Refurbished

Miscellaneous
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC

Product Description
The Dell X485V adapter provides a single 400Gb/s NDR InfiniBand port designed for high-throughput networking environments. It fits into PCIe 5.0 x16 slots using the OSFP form factor and is built to support demanding data center workloads requiring low latency and high bandwidth. This full-height network adapter does not include cryptographic features but supports Secure Boot to ensure platform integrity during startup. It is typically used in enterprise and hyperscale data centers where InfiniBand connectivity is essential. Key Features Single-port 400Gb/s NDR InfiniBand interface for high data transfer rates OSFP form factor designed for PCIe 5.0 x16 slots Full-height card suitable for standard server slots Secure Boot capability for secure platform initialization No onboard cryptographic acceleration included This adapter plays a critical role in environments where high-bandwidth, low-latency interconnects are needed for HPC clusters, AI workloads, and large-scale virtualization. Its Secure Boot support adds a layer of system security during boot, although it does not provide cryptographic processing on the card itself.

Use Cases
The Dell X485V adapter is typically deployed in data centers and enterprise environments that require high-bandwidth, low-latency interconnects for data-intensive applications. It supports workloads where InfiniBand networking is critical, such as HPC clusters and AI infrastructure. How It's Used: Connecting compute nodes in high-performance computing clusters Facilitating AI and machine learning data transfers Providing networking in virtualization environments requiring low latency Deploying in servers equipped with PCIe 5.0 x16 slots and OSFP support Enabling secure platform boot processes via Secure Boot The adapter serves as a key component for network infrastructure that demands high throughput and efficient data exchange. It integrates into standard server hardware, supporting operations that rely on InfiniBand technology without including onboard cryptographic acceleration.

FAQ's
What interface does the Dell X485V use? The Dell X485V uses a single-port 400Gb/s NDR InfiniBand interface designed for high-speed networking in data centers. Which PCIe slot is required for this adapter? This adapter requires a PCIe 5.0 x16 slot compatible with the OSFP form factor for proper installation. Does the X485V include onboard cryptographic features? No, the Dell X485V does not have built-in cryptographic acceleration capabilities. Is the card compatible with Secure Boot? Yes, the Dell X485V supports Secure Boot to ensure secure system initialization. What are the physical dimensions of the card? The Dell X485V is a full-height network adapter designed to fit standard server slots requiring this size. What environments benefit from this adapter? This adapter is suited for data centers and HPC clusters requiring high-bandwidth, low-latency InfiniBand connectivity.
