| Product Overview |
|---|

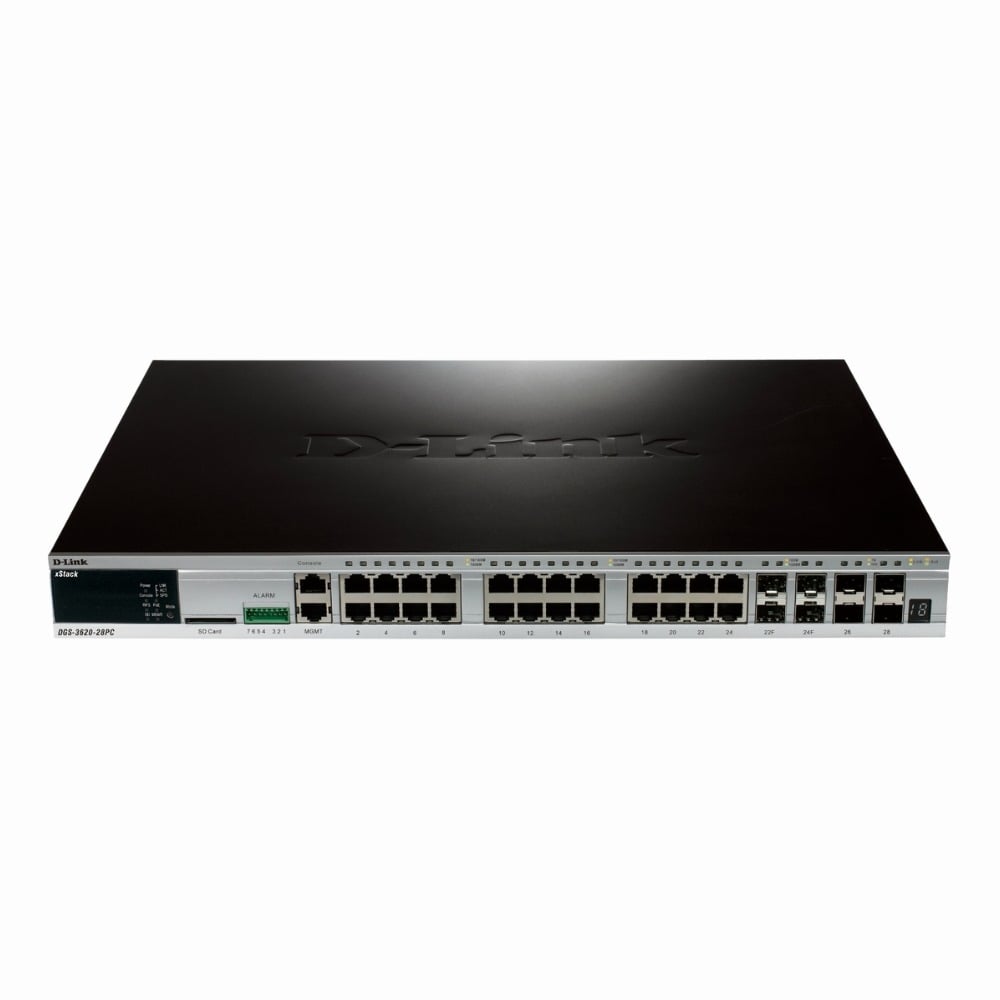

The D-Link xStack DGS-3620-28PC/EI is a Layer 3+ switch designed to deliver both high-speed Ethernet connectivity and PoE power to network devices. It fits well in business and campus networks where centralized management of data and power is needed, supporting a variety of end devices without additional power sources. |
| General Information | |
|---|---|
| Brand | D-Link |
| Part Number | DGS-3620-28PC/EI |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 28 (24 x Gigabit PoE (802.3at) + 4 x SFP) |
| Number of Ports | 28-Ports |
| Port Speed | 10/100/1000 Mbps |
| Switching Capacity | 56 Gbps |
| Switch Forwarding Rate | 109.375 Mpps |
| DRAM | 256 MB |
| Flash Memory | 64 MB |
| Max VLANs Supported | 1-4094 |
| Connector Type | 24 x RJ-45 Gigabit PoE, 4 x SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 |
| Management and Configuration | |
|---|---|
| Management Type | Web GUI, CLI, SNMP v1/v2/v3, RMON, Telnet/SSH |
| Security | ACLs, 802.1X, Port Security, DHCP Snooping, IP Source Guard, BPDU Guard |
| Remote Management Protocol | HTTP/HTTPS, SSH, Telnet, SNMP |
| Routing Protocol | Static Routing, RIP v1/v2, OSPF, VRRP |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable fan modules (variable airflow) |
| Power | AC input; PoE budget ~370W (system) |
| Physical Characteristics | |
|---|---|
| Weight | 4.00 |
| Operating Temperature | 0°C to 50°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.3af/at |
| Product Description |
|---|
The D-Link xStack DGS-3620-28PC/EI is a versatile Layer 3+ switch that combines high-speed connectivity with power-over-Ethernet functionality. Often found in enterprise networks and campus settings, it simplifies managing both data and power delivery over a single cable. Built for network administrators and IT professionals, this switch supports a range of devices like IP cameras, wireless access points, and VoIP phones, providing reliable power and data transmission simultaneously. Its routing capabilities enable efficient traffic management across different network segments. Key Features
This switch is typically deployed in mid to large-size business networks where both data throughput and power delivery are critical. Its real-world role is to streamline infrastructure by reducing cabling complexity while maintaining flexible network design options. |
