| Product Overview |
|---|

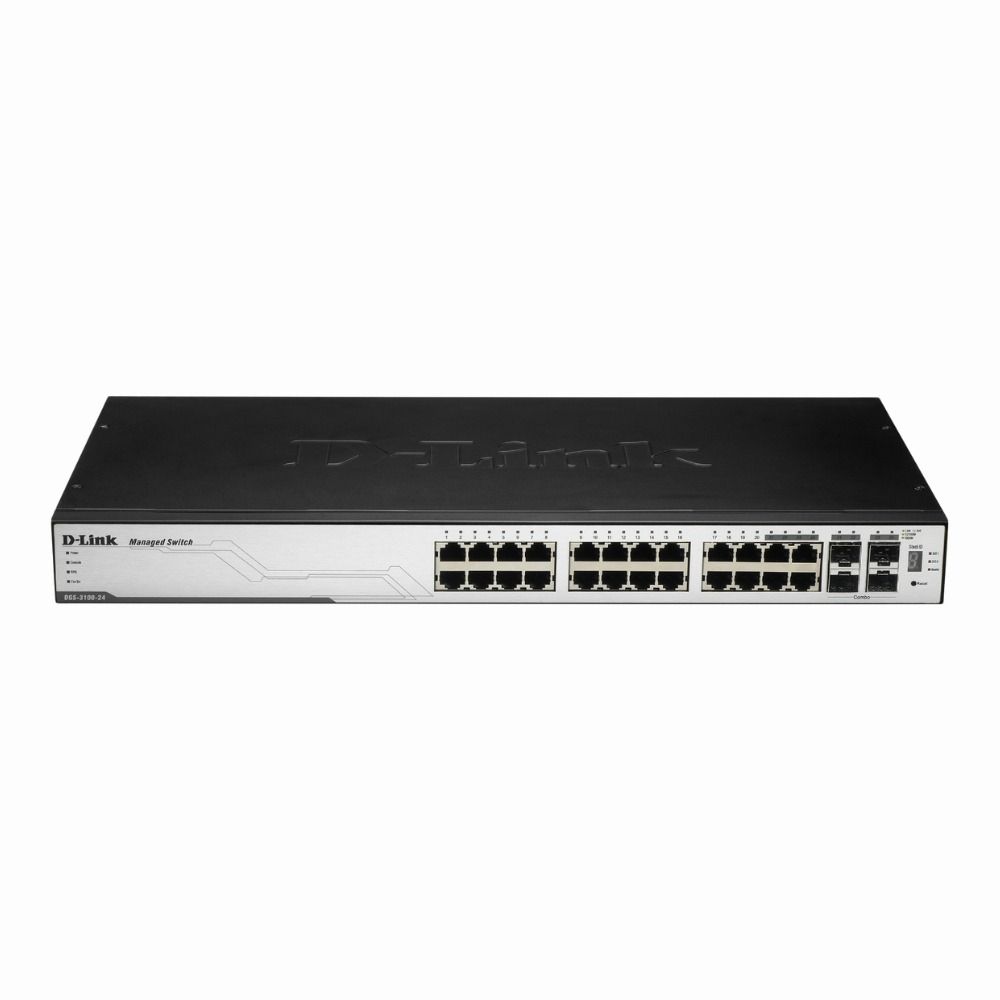

The D-Link DGS-3100-24P is a Layer 2 managed Gigabit Ethernet switch with PoE capabilities and flexible fiber options. It fits well in business and institutional networks that require reliable power and data delivery from a single device while supporting network expansion through stacking and fiber connectivity. |
| General Information | |
|---|---|
| Brand | D-Link |
| Part Number | DGS-3100-24P |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 x 10/100/1000Base-T PoE+ ports, 4 x Combo SFP (1000Base-X) |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, Combo RJ-45/SFP, RJ-45, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x Combo SFP (1000Base-X) |
| POE Support | PoE+ |
| Switching Capacity | 56 Gbps |
| Switch Forwarding Rate | 109.375 Mpps |
| DRAM | 128 MB |
| Flash Memory | 32 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Yes |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8K entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (Console/SSH/Telnet), SNMP v1/v2c/v3, RMON, Syslog |
| Security | 802.1X,RADIUS,ACL |
| Remote Management Protocol | SNMP,HTTP,HTTPS,SSH,Telnet,RMON |
| Routing Protocol | Static |
| Power & Cooling | |
|---|---|
| Power | AC 100-240V, 50/60Hz; PoE budget 370 W |
| Physical Characteristics | |
|---|---|
| Dimensions | 44 x 440 x 300 mm |
| Weight | 4.00 |
| Operating Temperature | 0 to 40 °C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1X, IEEE 802.3ad |
| Product Description |
|---|
The D-Link DGS-3100-24P is built to handle demanding networking environments that require robust data transfer and power delivery over Ethernet. Often found in office networks, retail setups, and small to medium enterprises, it combines 24 PoE-enabled Gigabit ports with 4 flexible combo SFP slots for fiber connections. This switch is designed for IT teams and network administrators who need reliable management features and Power over Ethernet capabilities to support devices like IP cameras, wireless access points, and VoIP phones. Key Features
This switch is commonly deployed in environments where both data connectivity and power delivery are essential. It plays a key role in streamlining network infrastructure by reducing cabling complexity and consolidating device management. Its flexibility and stackability make it suitable for growing networks that need to maintain performance without constant hardware overhauls. |
