| Product Overview |
|---|

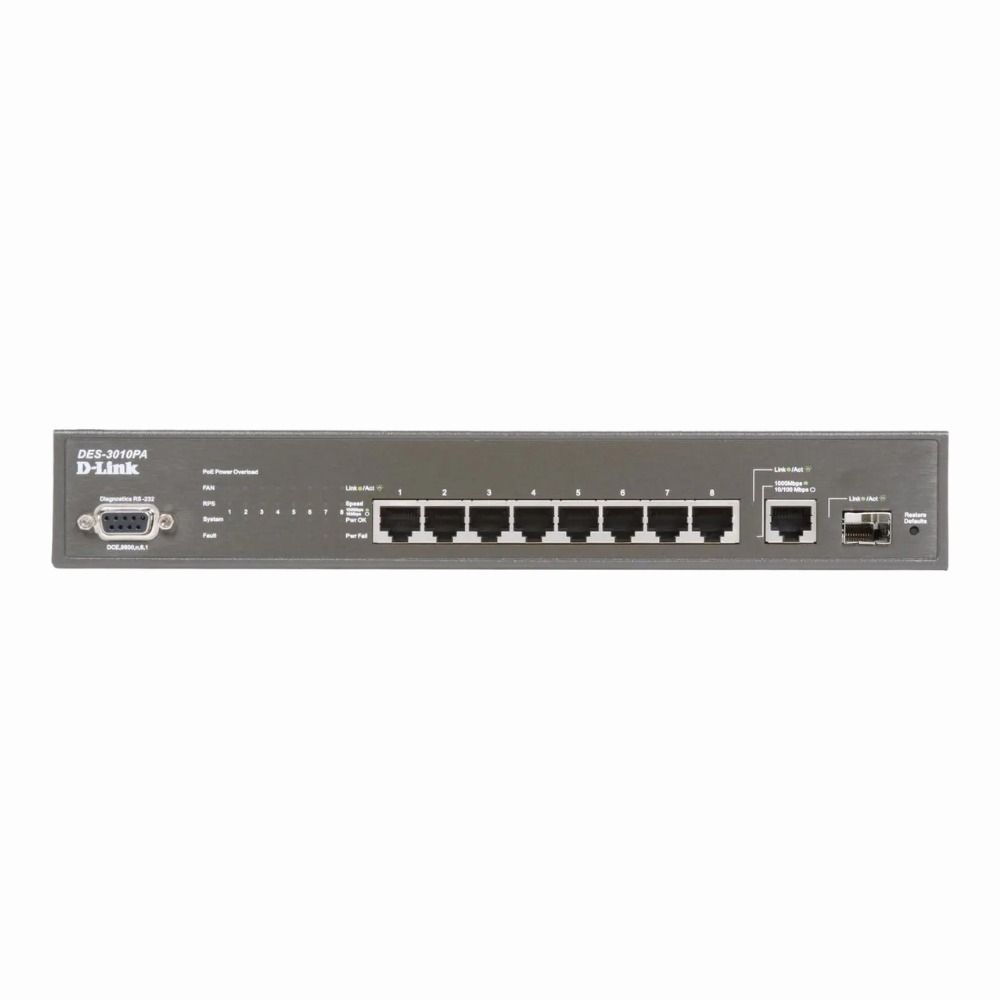

The D-Link DES-3010PA is a versatile managed PoE switch that merges data connectivity with power delivery for network devices. It fits well into environments where space is limited but network demands remain high, such as small office networks or branch locations. Its combination of fast Ethernet ports, a Gigabit uplink, and an SFP slot makes it suitable for a range of networking needs without adding unnecessary complexity. |
| General Information | |
|---|---|
| Brand | D-Link |
| Part Number | DES-3010PA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack, Desktop |
| Switch Ports | 8 x 10/100Base-T (PoE), 1 x 10/100/1000Base-T (Gigabit uplink), 1 x SFP |
| Number of Ports | 8-Ports |
| Port Type | 10/100Base-T, 10/100/1000Base-T, SFP |
| Port Speed | 10/100 Mbps & 1 Gbps |
| UpLink Ports | 1×Gigabit copper + 1×Gigabit SFP uplink |
| POE Support | PoE |
| Switching Capacity | 5.6 Gbps |
| VLAN Support | Yes |
| Max VLANs Supported | Up to 256 VLAN |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ‑45, SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9000 Bytes |
| MAC Address Table Size | 4,000 Entries |
| Management and Configuration | |
|---|---|
| Remote Protocols | SSL, SSH, Web GUI, RMON, Telnet |
| Management Interfaces | Web HTTP(S), CLI/Console, SNMP v1/2c/3 |
| Security Features | 802.1x, RADIUS, TACACS+, SSH, SSL, ACLs, storm control |
| Security | 802.1X, Access Control Lists (ACL), Port Security, Storm Control |
| Remote Management Protocol | HTTP, HTTPS, Telnet, SSH, SNMP (v1/v2/v3), RMON |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | Max PoE Budget 64W |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.7″ × 11″ × 7.1″ |
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D, IEEE 802.3af |
| Product Description |
|---|
The D-Link DES-3010PA is a managed switch designed to connect and power multiple network devices in small to medium-sized business environments. It combines eight 10/100 Mbps ports with PoE capabilities to deliver both data and power over a single cable, reducing clutter and simplifying installation. Often found in office networks, the switch is built for IT managers who need reliable control over their local area network and the flexibility to support a variety of devices such as IP phones, wireless access points, and security cameras. The inclusion of a Gigabit port and an SFP slot adds options for faster uplink speeds and fiber connections. Key Features
This switch is typically deployed in office settings or small campus networks where multiple devices require both network connectivity and power through Ethernet. Its management features allow administrators to optimize network traffic and maintain security, while the PoE functionality reduces the need for separate power adapters, simplifying the overall setup. |
