| Product Overview |
|---|

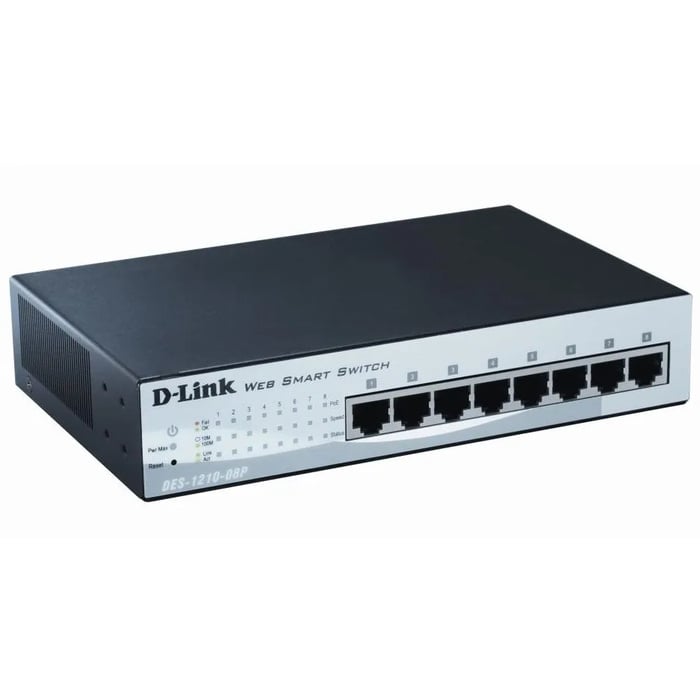

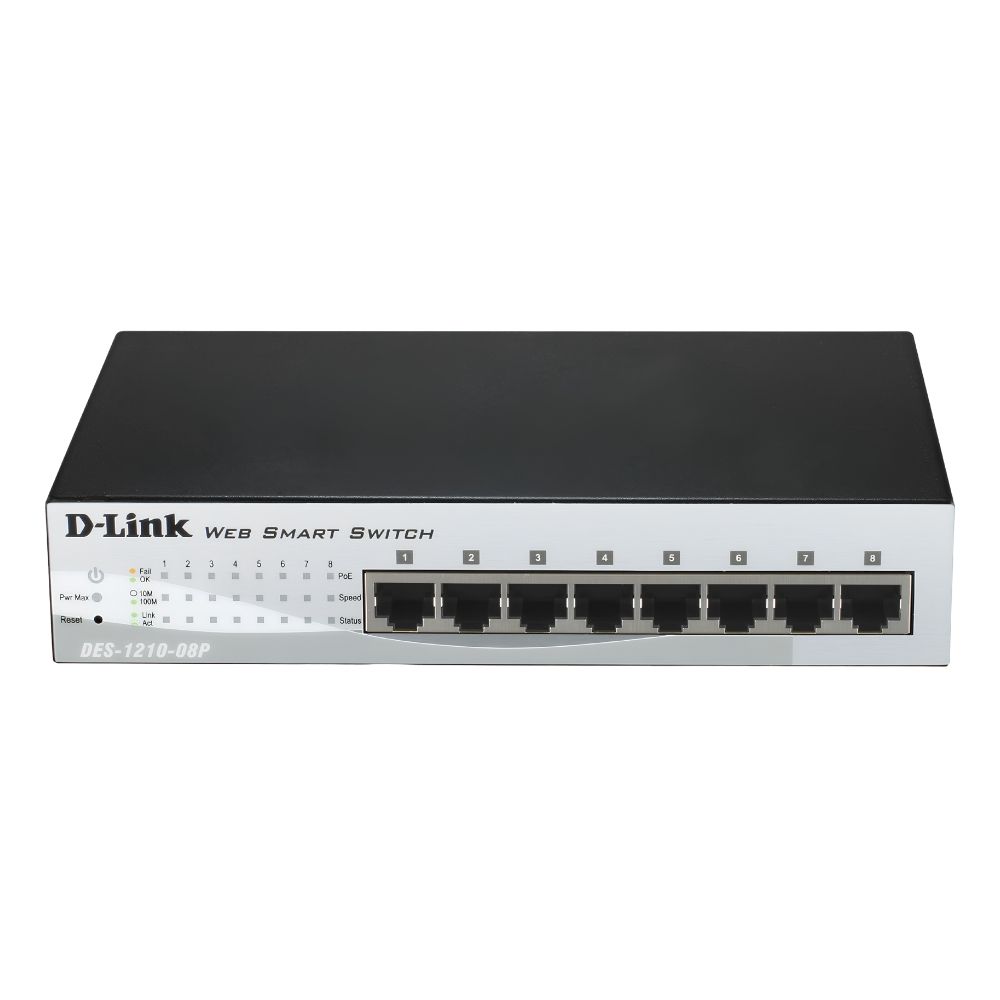

The DES-1210-08P is a Layer 2 managed switch featuring 8 Fast Ethernet ports with PoE support, ideal for networks requiring compact, reliable connectivity and power delivery. It fits well in environments where administrators need control over traffic and device management without complex setups. |
| General Information | |
|---|---|
| Brand | D-Link |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 2, Managed Switch, PoE Switch, Gigabit Switch |
| Form Factor | Desktop |
| Mount Type | 1U Rack, Desktop |
| Switch Ports | 8 |
| Number of Ports | 10-Ports |
| Port Type | 10/100Base-TX, 1000Base-T, Serial Console (RJ-45) |
| Port Speed | 10/100 Mbps |
| UpLink Ports | 2 |
| POE Support | PoE |
| Switching Capacity | 5.6 Gbps |
| Switch Forwarding Rate | 4.17 Mpps |
| DRAM | 64 MB |
| Flash Memory | 8 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45 |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8192 |
| Management and Configuration | |
|---|---|
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (Telnet/SSH), SNMP v1/v2c/v3, RMON, TFTP, Telnet, SSH |
| Security Features | 802.1X,Access Control Lists (ACLs),Port Security,SSL/HTTPS,SSH,Storm Control,DHCP Snooping,IP Source Guard,BPDU Guard |
| Management Type | Managed |
| Security | 802.1X,SSL/SSH,ACLs |
| Remote Management Protocol | SNMP,HTTP,HTTPS,SSH,Telnet,RMON |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | 100-240 VAC, 50/60 Hz; PoE budget ~64 W |
| Power Supply | Internal AC power supply |
| Physical Characteristics | |
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1X, IEEE 802.3af |
| Product Description |
|---|
The DES-1210-08P is a managed Layer 2 switch designed to deliver reliable Fast Ethernet connectivity with integrated PoE capabilities. It is commonly found in small to medium-sized networks where centralized control and power delivery over Ethernet cables are needed. Network administrators and IT professionals often benefit from its combination of performance and management features. Key Features
In practical use, this switch provides a dependable foundation for network segments requiring both connectivity and power. Its managed features allow for flexible configuration and monitoring, contributing to network stability and performance. The integrated PoE simplifies installations by eliminating the need for separate power sources on connected devices. |
| Use Cases |
|---|
This switch is typically deployed in smaller network environments where both power and data connection are required from a single device. It suits offices, retail locations, and branch sites that benefit from managed Ethernet switching and simplified device setup using PoE. How It's Used:
By combining data switching and power delivery, the DES-1210-08P enables efficient network designs that reduce cabling complexity and enhance operational control. It supports scalable network growth while maintaining consistent performance and management ease. |
