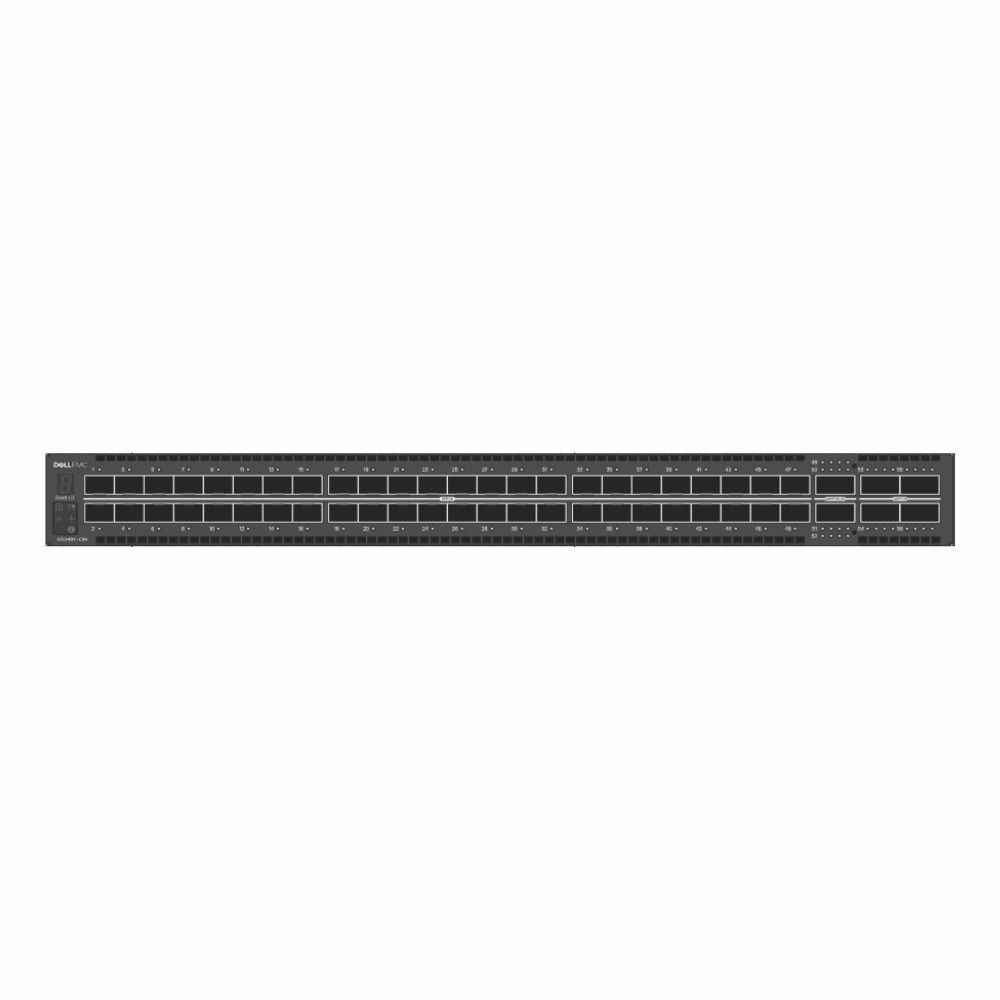

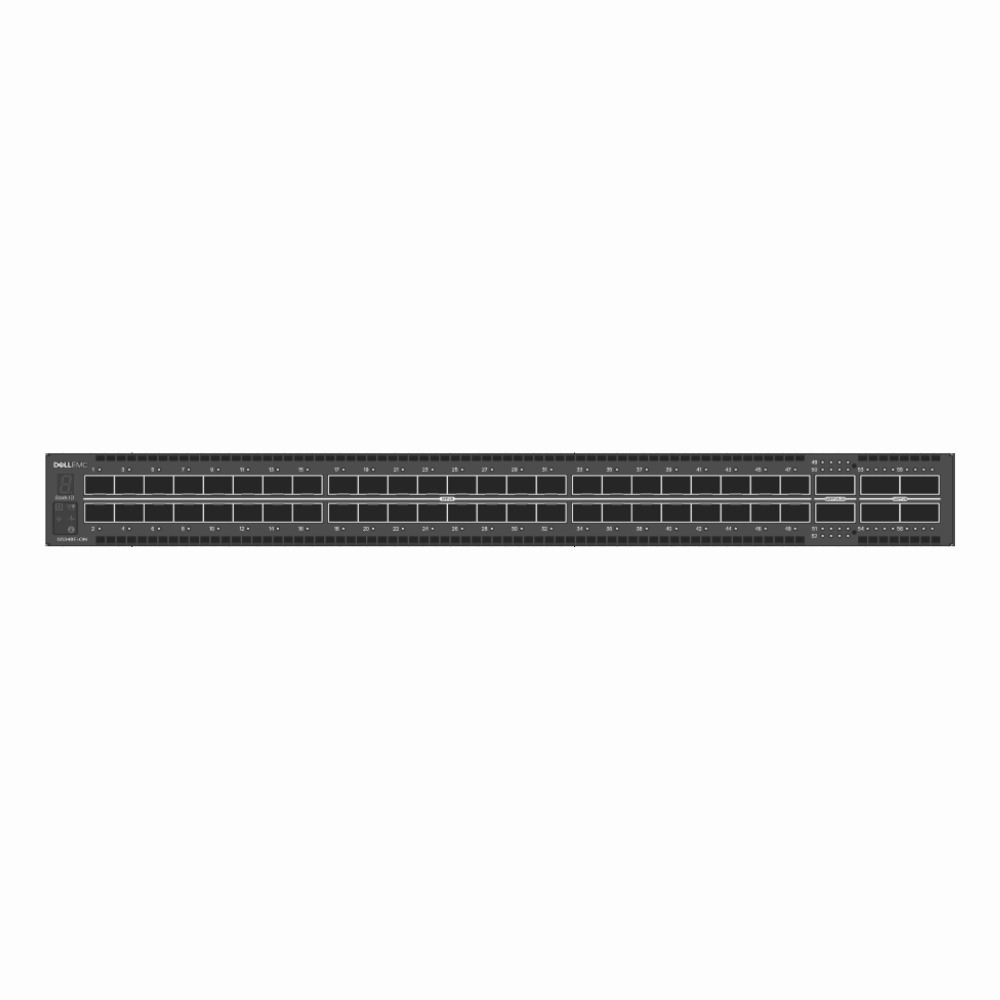

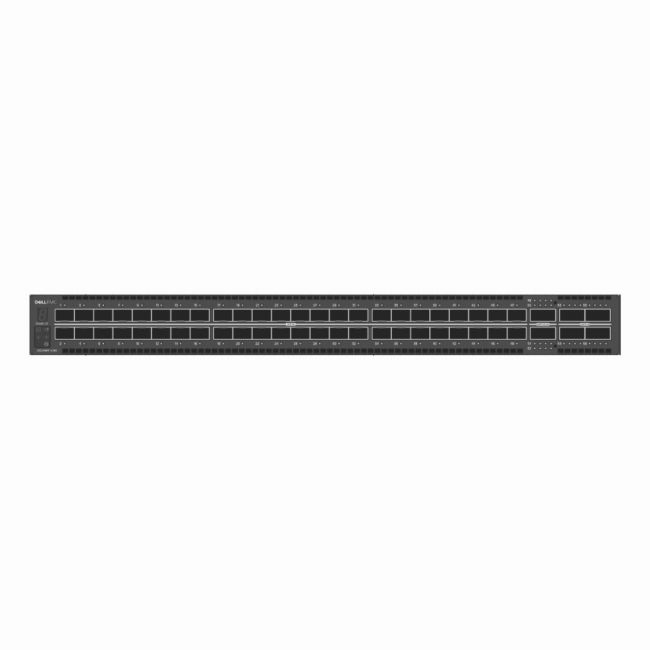

Name: S5248F-ON Dell PowerSwitch S5200-ON Series S5248F-ON 48 x SFP28 Ports 25Base-X + 4 x QSFP28 Ports Layer 3 Managed 1U Rack-Mountable Gigabit Ethernet Network Switch
Brand: Dell
SKU: S5248F-ON
Price: 3720.00 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Product Overview
The Dell PowerSwitch S5248F-ON offers 48 25GbE SFP28 ports and 4 QSFP28 uplinks designed primarily for data center environments. It fits into 1U rack space and provides Layer 3 routing capabilities, making it suitable for aggregation and core networking tasks without added complexity.

General Information
Brand	Dell
Part Number	S5248F-ON
Condition	Refurbished

Technical Information
Switch Type	Managed Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48 x SFP28 (25Gb) + 4 x QSFP28 (100Gb)
Number of Ports	48-Ports
Port Type	25G SFP28, 100G QSFP28
Port Speed	25 GbE, 100 GbE, 200 GbE multi-rate
UpLink Ports	4 × 100 GbE (QSFP28) + 2 × 200 GbE (QSFP‑DD)
POE Support	No
Switching Capacity	2 Tbps
Switch Forwarding Rate	6250 Mpps (64-byte frames, full-duplex aggregate)
DRAM	16 GB
Flash Memory	8 GB
VLAN Support	Yes
Max VLANs Supported	Supports up to 4,000 VLAN IDs
Stackable	No
Layer Support	Layer 2, Layer 3
Connector Type	SFP28, QSFP28, QSFP‑DD; RS‑232 console RJ‑45; USB-A/B

Performance
Latency	≤1 µs (typical, line-rate)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	288,000 MAC addresses

Management and Configuration
Routing Protocols	OSPF, OSPFv3, BGP, VRRP
Remote Protocols	Dell SmartFabric OS10, SONiC via ONIE, SSH, SNMP, CLI, REST API
Management Interfaces	RJ‑45 console, USB-A, USB-B micro, Ethernet OOB
Security Features	ACLs, RADIUS/TACACS, 802.1X, LLDP, PFC, ETS, DCBX, port mirroring
Security	802.1X, ACLs, RADIUS, TACACS+, MAC ACLs, DHCP snooping
Remote Management Protocol	SSH, Telnet, SNMP, RMON, sFlow, NETCONF/REST (platform dependent)
Routing Protocol	IPv4/IPv6, static routing, OSPF, BGP

Power & Cooling
Fans	4 (hot-swappable, front-to-back airflow)
Power	Maximum ~400 W (platform dependent)
Power Supply	Hot-pluggable / redundant PSU support (field-replaceable)

Physical Characteristics
Dimensions	44 mm × 434 mm × 460 mm
Weight	22.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w

Product Description
The Dell PowerSwitch S5248F-ON is a versatile network switch designed to handle demanding data center environments. It offers high-density 25GbE connections with 48 SFP28 ports and four 100GbE QSFP28 uplinks, providing ample bandwidth for server and storage connectivity. Often found in enterprise and cloud data centers, this switch suits organizations needing robust Layer 3 functionality combined with flexibility in port configuration. Network administrators and engineers benefit from its reliable performance and advanced routing to streamline large-scale network traffic. Key Features Supports dense 25GbE device connections with 48 SFP28 slots Includes four QSFP28 ports for high-capacity uplinks or stacking Delivers Layer 3 routing to manage complex network topologies Compact 1U chassis fits standard racks, saving space Compatible with Dell’s open networking OS for customization This switch is commonly deployed in data centers where high throughput and low latency are critical. It plays a key role in server aggregation and spine-leaf architectures, helping maintain efficient and scalable network performance.
