Name: K968K Dell 48-Port Gigabit Ethernet Blade Switch PowerConnect M6348
Brand: Dell
SKU: K968K
Price: 187.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview

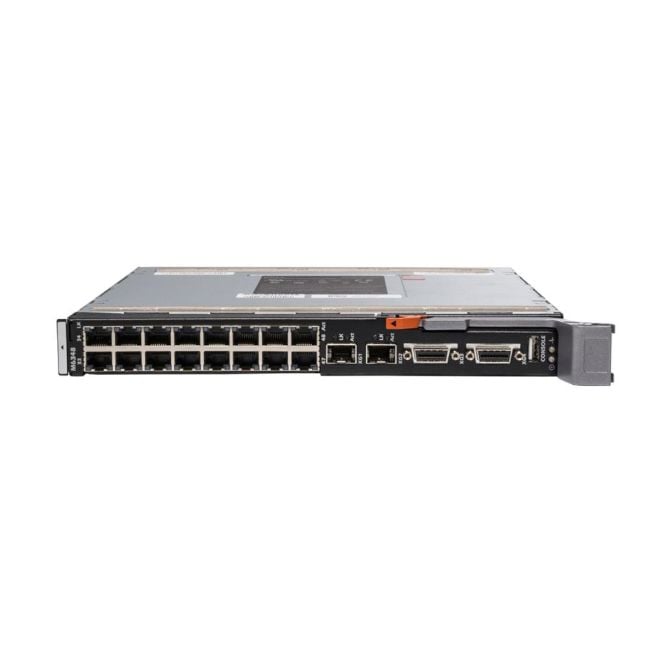

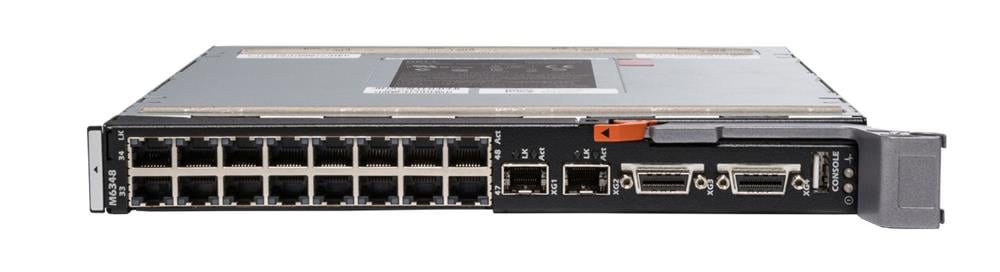

The Dell PowerConnect M6348 is a 48-port Gigabit Ethernet blade switch designed specifically for integration with Dell PowerEdge M1000e chassis. It fits neatly into blade server environments, offering high-density network ports and supporting both Layer 2 and Layer 3 functionalities. This switch is a practical choice for data centers aiming to consolidate networking gear and streamline cabling within blade server setups.

General Information
Brand	Dell
Part Number	K968K
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 10G SFP+, RJ-45, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	1 Gbps,10 Gbps
UpLink Ports	4 x 10Gb SFP+
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
DRAM	256 MB
Flash Memory	64 MB
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	No
Layer Support	Layer 2, Layer 3 Lite
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static
Remote Protocols	Yes
Management Interfaces	Web GUI, Command Line Interface (CLI), SNMP, RMON, SSH, Telnet, Serial Console, USB Console
Security Features	Access Control Lists (ACLs),802.1X,RADIUS,TACACS+,SSH,Port Security,Storm Control
Management Type	In-Band,Out-of-Band
Security	802.1X,RADIUS,TACACS+,SSH,ACLs
Remote Management Protocol	SNMPv1/v2c/v3,SSH,Telnet,HTTP,HTTPS
Routing Protocol	Static

Power & Cooling
Fans	Chassis-cooled (no onboard fans)

Physical Characteristics
Weight	6.50
Operating Temperature	0°C to 45°C

Miscellaneous
Compliance Standards	WEEE, RoHS, cURus, CE, FCC, UL, TUV, cULus, CSA
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3x,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s

Product Description
The Dell PowerConnect M6348 is a blade switch that provides 48 Gigabit Ethernet ports, tailored for use within Dell PowerEdge M1000e blade server chassis. It offers robust network connectivity for environments that require dense, high-speed switching within tight data center spaces. Often found in enterprise data centers and server farms, this blade switch is built for IT administrators who need reliable and scalable network infrastructure inside blade enclosures. It supports core networking functions including VLANs, QoS, and IPv4/IPv6 routing, making it versatile for a range of network designs. Key Features Delivers 48 10/100/1000 Mbps Ethernet ports in a blade form factor Integrates seamlessly with Dell PowerEdge M1000e chassis for space efficiency Offers Layer 2 switching with support for VLANs and link aggregation Includes Layer 3 static routing and advanced network management options Compact design reduces cabling complexity within blade environments This switch is primarily deployed inside blade server enclosures where maximizing port density and minimizing physical footprint are priorities. It helps simplify the network layout by embedding high-speed switching close to the servers and reducing the need for external switches. The PowerConnect M6348 plays a key role in data centers focused on virtualization, cloud computing, and scalable enterprise applications by providing reliable internal network connectivity and efficient traffic management within blade infrastructure.

Use Cases
The Dell PowerConnect M6348 blade switch is commonly deployed within data center environments that utilize Dell PowerEdge M1000e chassis. It is particularly suited for IT professionals managing high-density blade server configurations requiring streamlined network integration and robust Layer 2/3 capabilities to support diverse workloads. How It's Used: Connecting multiple blade servers within Dell PowerEdge M1000e enclosures to reduce cabling complexity in enterprise data centers. Implementing segmented virtual LANs (VLANs) in virtualization-heavy environments to isolate traffic and improve network performance. Supporting scalable storage clusters by providing high-throughput, low-latency connectivity between storage nodes and compute resources. Facilitating secure, high-bandwidth communications in multi-tenant data center setups requiring granular network segmentation. Enabling efficient Layer 3 routing within blade server environments to optimize traffic flow and reduce external switch dependency. This switch enhances operational efficiency by consolidating network ports directly within blade chassis, reducing physical footprint and simplifying management. Its scalability and advanced switching features allow network architects to tailor configurations that meet demanding performance and segmentation requirements in dense server deployments.
