FDT3J

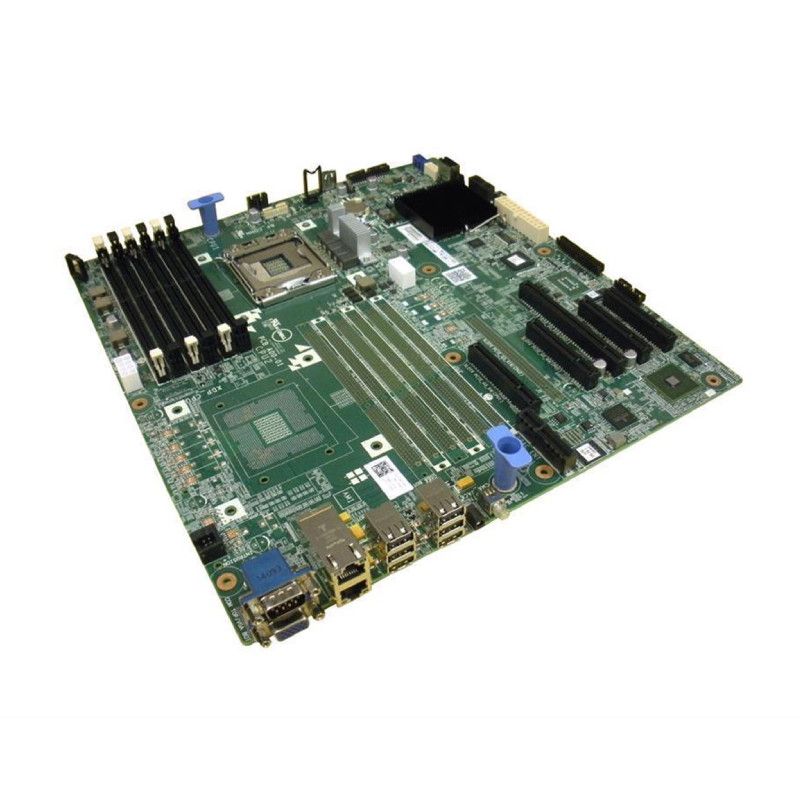

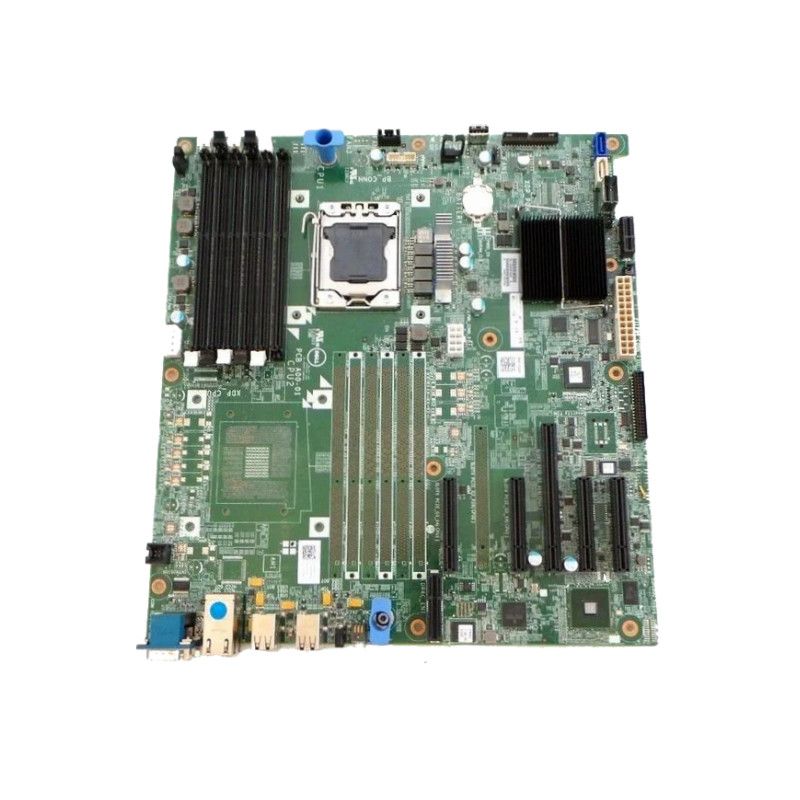

The Dell FDT3J System Board (Motherboard) is designed specifically for the PowerEdge T320 server, delivering robust performance and reliability for enterprise applications. This motherboard supports Intel Xeon E5-2400 and E5-2400 v2 series processors, as well as Intel Xeon E5-1410 series and Intel Pentium 1400 series, ensuring compatibility with a range of powerful processors for various workloads.

With an Intel C602 chipset, the FDT3J motherboard features 6 DIMM slots that support DDR3 ECC Registered or Unbuffered DIMMs, allowing for a maximum memory capacity of up to 192 GB. The memory speed can reach up to 1600 MT/s, providing fast data access and improved system performance.

The motherboard includes 5 PCIe slots for expansion, comprising one x16 slot with x16 bandwidth (3.0), one x8 slot with x4 bandwidth (3.0), another x8 slot with x4 bandwidth (2.0), and two additional x8 slots with x4 and x1 bandwidth (3.0 and 2.0 respectively), enabling versatile configuration options for additional cards.

For networking, the FDT3J features an integrated Broadcom 5720 Dual-Port 1Gb LOM, and it supports various RAID configurations when paired with PERC H310, H710, or H710P storage controllers. The integrated Matrox G200 video controller with 16 MB memory ensures basic graphics capabilities, while the USB ports (2 x USB 2.0 at the front and 4 x USB 2.0 at the rear) provide connectivity for peripheral devices.

The motherboard is also equipped with iDRAC7 and Lifecycle Controller for advanced management capabilities, ensuring smooth operation and easy maintenance.

Key Features:

• Compatible Model: Designed for Dell PowerEdge T320 Server.
• Processor Socket: FCLGA1356, supporting a range of Intel processors.
• Chipset: Intel C602 for optimal performance and stability.
• Memory Slots: 6 DIMM slots supporting DDR3 ECC Registered or Unbuffered DIMMs.
• Maximum Memory Capacity: Up to 192 GB for handling demanding applications.
• Memory Speed: Up to 1600 MT/s for enhanced data processing.
• Expansion Slots: 5 PCIe slots for flexible hardware configuration.
• Integrated Network Controller: Broadcom 5720 Dual-Port 1Gb LOM for networking.
• Storage Controller: Supports RAID configurations with PERC H310, H710, and H710P controllers.
• Video Controller: Integrated Matrox G200 with 16 MB memory for basic graphics.
• USB Ports: 2 x USB 2.0 (front) and 4 x USB 2.0 (rear) for peripheral connectivity.
• Management: iDRAC7 with Lifecycle Controller for efficient management.

The Dell FDT3J System Board is a powerful component for the PowerEdge T320 server, designed to support high-performance applications and provide reliable operation in enterprise environments.
