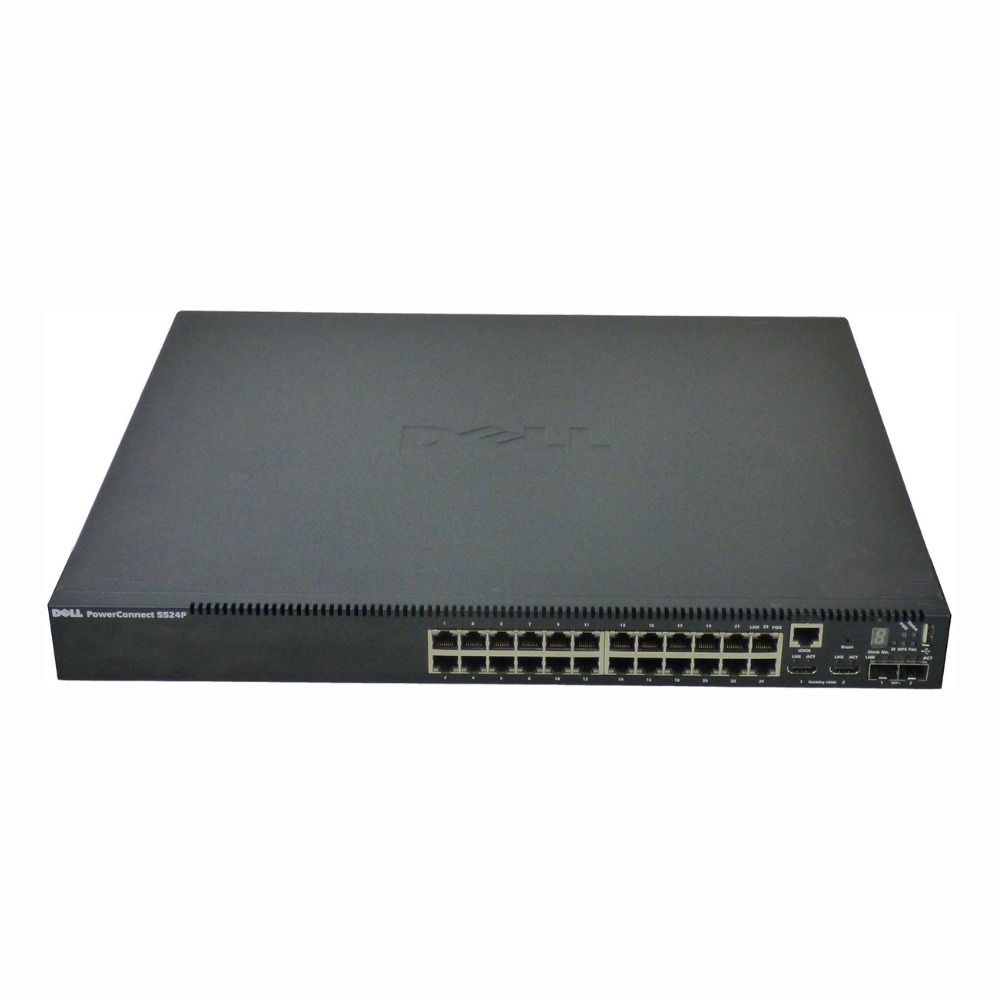

Name: 4T7PN Dell PowerConnect 5500 Series 5524P 24 x Ports PoE x 10/100/1000Base-T + 2 x Ports SFP+ Layer 3 Managed 1U Rack-Mountable Gigabit Ethernet Stackable Network Switch
Brand: Dell
SKU: 4T7PN
Price: 791.21 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell PowerConnect 5500 Series 5524P is a versatile managed switch offering 24 PoE Gigabit Ethernet ports and 2 high-speed SFP+ uplinks. It fits well in enterprise network setups, providing both connectivity and power in a single, rack-mountable unit while supporting Layer 3 routing to manage complex traffic flows.

General Information
Brand	Dell
Part Number	4T7PN
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, SFP+
Port Speed	10/100/1000Base-T
UpLink Ports	2
POE Support	PoE+
Switching Capacity	128 Gbps
Switch Forwarding Rate	95.23 Mpps
DRAM	256 MB
Flash Memory	64 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI, CLI (Console), SSH, Telnet, SNMP, RMON
Security Features	802.1X,ACLs,Port security,MAC filtering,Storm control,SSH,SSL,IP source guard
Remote Management Protocol	SNMPv1/v2/v3,HTTP/HTTPS,SSH,TELNET,RMON
Routing Protocol	Static,RIP

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus

Product Description
The Dell PowerConnect 5500 Series 5524P is designed to handle demanding network environments requiring power over Ethernet and high-speed data transfer. It is commonly found in medium to large enterprise networks, delivering both switching and routing functionalities in a compact 1U form factor. Built for IT professionals and network administrators, this switch supports a range of connected devices including IP phones, access points, and servers. Its PoE functionality simplifies deployment by supplying power and data over the same cable. Key Features Provides 24 ports with PoE to power network devices directly Includes 2 SFP+ slots for fiber optic or high-speed uplink connections Offers Layer 3 routing for managing traffic efficiently within the network Supports stacking to combine multiple switches into a single unit Designed for rack mounting to save space in data centers or wiring closets This switch is typically deployed in business environments where reliable power delivery and robust network management are essential. It helps maintain smooth communication across devices without additional power adapters. Many organizations use it to build scalable and resilient networks that can grow with their operational needs.

Use Cases
The Dell PowerConnect 5500 Series 5524P switch is designed for enterprise environments requiring high-density Power over Ethernet (PoE) connectivity combined with advanced Layer 3 routing capabilities. It is particularly suited for IT teams managing complex network infrastructures where scalable, high-performance switching and power delivery to endpoints such as IP phones, wireless access points, and security cameras are essential. How It's Used: Deploying in corporate campus networks to provide seamless connectivity and power to VoIP phones and wireless access points across multiple floors. Integrating within data center edge deployments to handle aggregation of server traffic while enabling Layer 3 routing for optimized traffic management. Implementing in remote or branch office networks that require simplified management and PoE support for IP surveillance and unified communications equipment. Supporting small to medium business (SMB) networks with scalable stacking capabilities to accommodate growing connectivity demands without disrupting operations. Facilitating network segmentation and routing in enterprise IT environments to improve security and traffic efficiency between different departments or virtual LANs. This switch enhances operational efficiency by combining power delivery and high-speed connectivity in a single chassis, enabling IT administrators to streamline network infrastructure. Its stacking and Layer 3 features provide scalability and improved network performance critical to maintaining resilient and manageable enterprise networks.
