09WH54

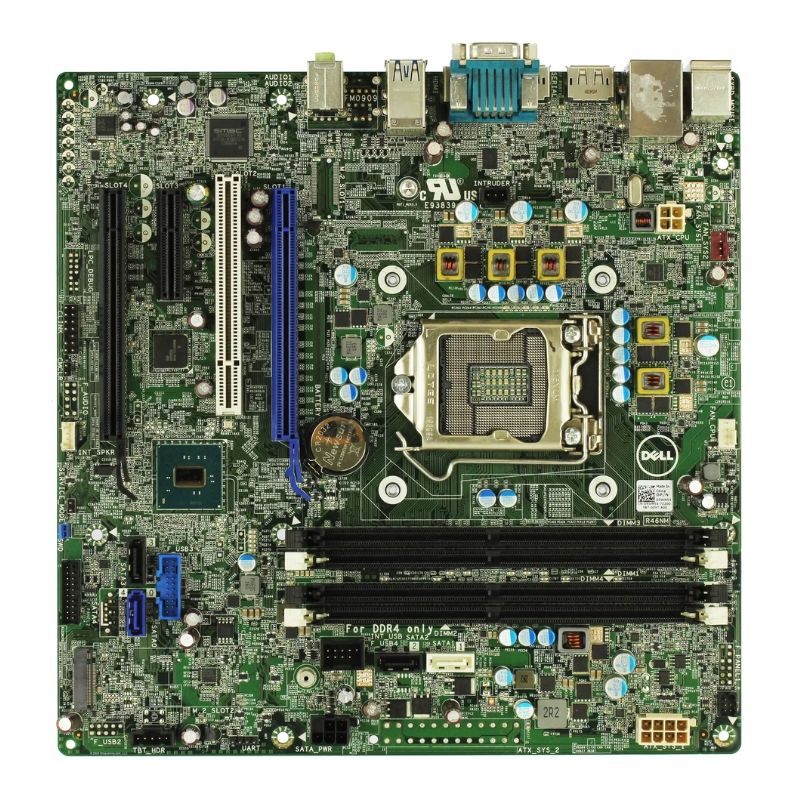

The Dell Precision Tower 3620 System Board (model 09WH54) is designed to support high-performance computing environments. It features the Intel C232 chipset, ensuring stable operation, and is compatible with Intel Xeon E5-1200 v5 series processors as well as 6th generation Intel Core i7 and i5 processors. With 4 DIMM slots supporting up to 64GB of DDR4 SDRAM, the system board provides ample memory capacity for demanding tasks. Additionally, it includes 4 SATA 6Gb/s connectors and an optional M.2 SSD slot for flexible storage options. The board is equipped with various expansion slots and multiple USB ports for connectivity.

Key Features

• Chipset: Powered by the Intel C232 chipset, ensuring reliable system performance and compatibility with a wide range of processors.
• Compatible Processors: Supports Intel Xeon E5-1200 v5 series processors and 6th generation Intel Core i7 and i5 processors, offering flexibility in choosing the ideal CPU for your needs.
• Board Socket Type: Equipped with an LGA 1151 socket type for easy processor installation and compatibility with supported Intel processors.
• Memory Slots: Features 4 DIMM slots, enabling memory upgrades up to 64GB DDR4 SDRAM, ideal for handling resource-intensive tasks.
• Memory Support: Supports DDR4 SDRAM with a maximum capacity of 64GB when fully populated, providing ample room for multitasking and high-performance applications.
• Storage Interfaces: Includes 4 x SATA 6Gb/s connectors for storage devices and 1 x M.2 SSD slot (optional) for fast storage solutions, ensuring versatile storage options for your system.
• Expansion Slots: Offers 1 x PCI Express x16 (wired as x4), 1 x PCI Express x4, and 1 x PCI slot for easy addition of graphics cards and other expansion devices.
• USB Port Form Factor: Provides multiple USB ports, including 2 x USB 2.0 front panel, 2 x USB 2.0 back panel, 2 x USB 3.0 front panel, and 4 x USB 3.0 back panel, ensuring sufficient connectivity for peripheral devices.

This system board is an excellent choice for users seeking a high-performance workstation with expandability options.
