| Product Overview |
|---|

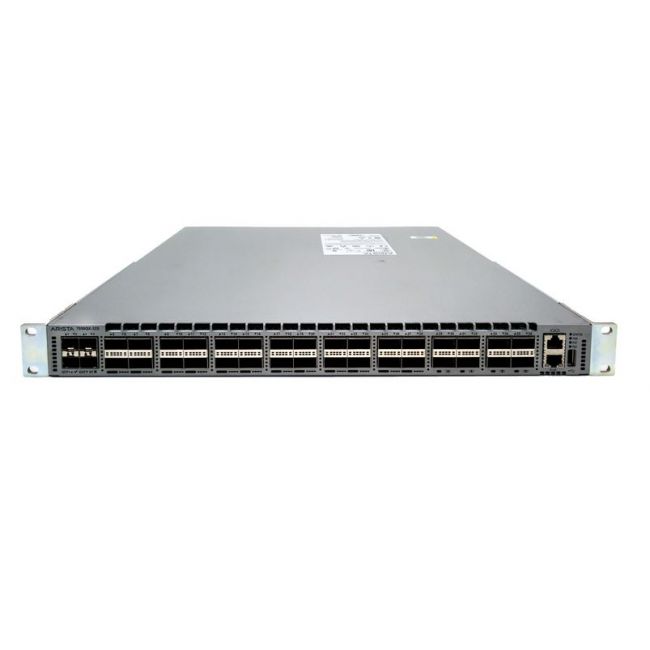

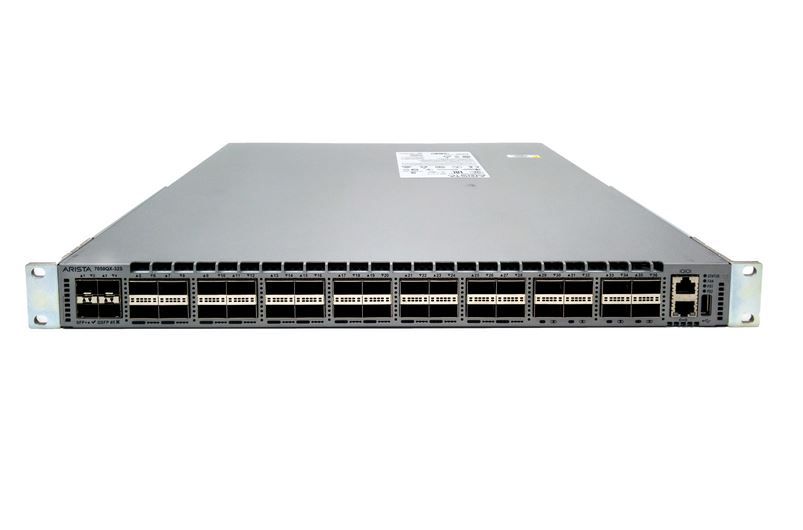

The Arista 7060X 32x 100GbE switch provides a dense, reliable platform for high-speed networking in data centers. It fits into environments where both performance and resilience are essential, handling heavy traffic loads with ease while supporting critical cooling and power needs. |
| General Information | |
|---|---|
| Brand | Arista Networks |
| Part Number | DCS-7060CX-32S-F |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 32 x 100GbE QSFP28, 2 x 10GbE SFP+ |
| Number of Ports | 32-Ports |
| Port Speed | 100Gbps,10Gbps |
| Switching Capacity | 6.4 Tbps |
| Switch Forwarding Rate | 9.52 Bpps (approx. 9,523 Mpps) |
| Max VLANs Supported | 1-4094 |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Management Type | Arista EOS CLI, SNMP, eAPI/REST, Web UI |
| Security | 802.1X, ACLs, TACACS+, RADIUS |
| Remote Management Protocol | SSH, SNMP, REST (eAPI), Telnet |
| Routing Protocol | BGP, OSPF, IS-IS, RIP, PIM, VRF |
| Power & Cooling | |
|---|---|
| Fans | Front-to-rear redundant hot-swappable fans |
| Power | Dual AC redundant power supplies (hot-swappable) |
| Power Supply | 2 x AC |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Product Description |
|---|
The Arista 7060X switch delivers robust, high-performance networking for demanding environments. It's built for data centers that require fast, reliable connections with flexible deployment options. This switch is often found in enterprise and cloud environments where low latency and high throughput are critical. Key Features
This switch is typically deployed in core and distribution layers where bandwidth demands are highest. Its airflow design and redundant power supplies make it well-suited for modern data centers that prioritize uptime and cooling efficiency. Operators benefit from the switch’s combination of speed and flexibility, supporting a wide variety of network loads without compromise. |
