| Product Overview |
|---|

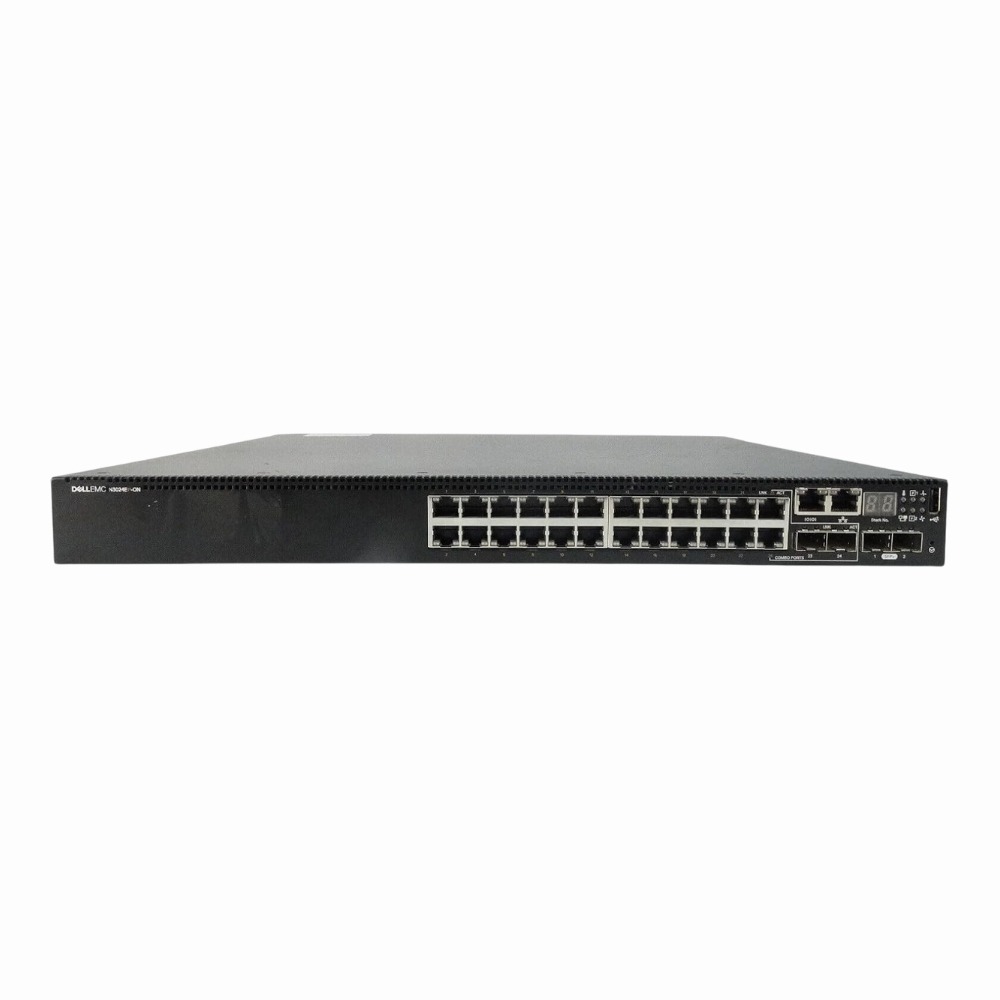

The Dell Networking N3024EP-ON is a 24-port managed switch that integrates high-speed Ethernet connectivity with power delivery through PoE+ and UPoE. It fits into network setups requiring both data and power distribution across multiple devices while offering Layer 3 routing features to support complex network architectures. |
| General Information | |
|---|---|
| Brand | Dell EMC |
| Part Number | CTP7D |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 24 x 10/100/1000Base-T PoE+/UPoE RJ-45 ports; 4 x 1G SFP uplink ports |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP, SFP+ |
| Port Speed | 10/100/1000 Mbps (PoE ports); 10 Gb on SFP+ uplinks |
| UpLink Ports | 2 × 10 Gb SFP+ dedicated; 2 × Gigabit SFP combo |
| POE Support | PoE+ |
| Switching Capacity | 212 Gbps |
| Switch Forwarding Rate | 158 Mpps |
| DRAM | 2 GB |
| Flash Memory | 1 GB |
| VLAN Support | Yes |
| Max VLANs Supported | Up to 4,094 VLANs |
| Layer Support | Layer 3 |
| Connector Type | RJ‑45, SFP, SFP+ |
| Performance | |
|---|---|
| Latency | <5µs |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 Entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | RIP, OSPF, BGP, VRRP |
| Remote Protocols | SNMP v1/v2c/v3, Telnet, SSH, HTTP/HTTPS, USB flash, OOB management |
| Management Interfaces | CLI, Web GUI, SNMP |
| Security Features | RADIUS, TACACS+, ACLs, 802.1X, DoS protection |
| Remote Management Protocol | SNMPv1/v2c/v3, SSH, Telnet, HTTP/HTTPS, RMON, Syslog |
| Routing Protocol | Static routing, RIP (v2), OSPF (v2) |
| Power & Cooling | |
|---|---|
| Power | 715 W |
| Power Supply | 1 × hot‑swap AC; optional redundant |
| Physical Characteristics | |
|---|---|
| Dimensions | 43.5 × 434 × 407 mm |
| Weight | 15.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Q (VLAN), IEEE 802.1p (QoS), IEEE 802.1D/STP, IEEE 802.1w/RSTP, IEEE 802.1s/MSTP, IEEE 802.1X (port-based authentication), IEEE 802.3af/at (PoE/PoE+), IEEE 802.3az (Energy |
| Product Description |
|---|
The Dell Networking N3024EP-ON is a managed switch built for handling demanding network environments. It offers 24 Gigabit Ethernet ports, each capable of providing Power over Ethernet Plus (PoE+) and Universal Power over Ethernet (UPoE) to power connected devices directly through network cables. Often found in enterprise offices, data centers, and campus networks, this switch is designed for network administrators who need flexible control and advanced Layer 3 routing features. Its management capabilities allow for efficient traffic control and improved network performance. Key Features
This switch is typically deployed in environments where reliable power and network connectivity are critical, such as corporate networks or branch offices. Its combination of power and data capabilities helps to simplify infrastructure by reducing the need for separate power sources. Many organizations benefit from its balance of performance and manageability, allowing IT teams to maintain smooth and efficient network operations without excessive complexity. |
