| Product Overview |
|---|

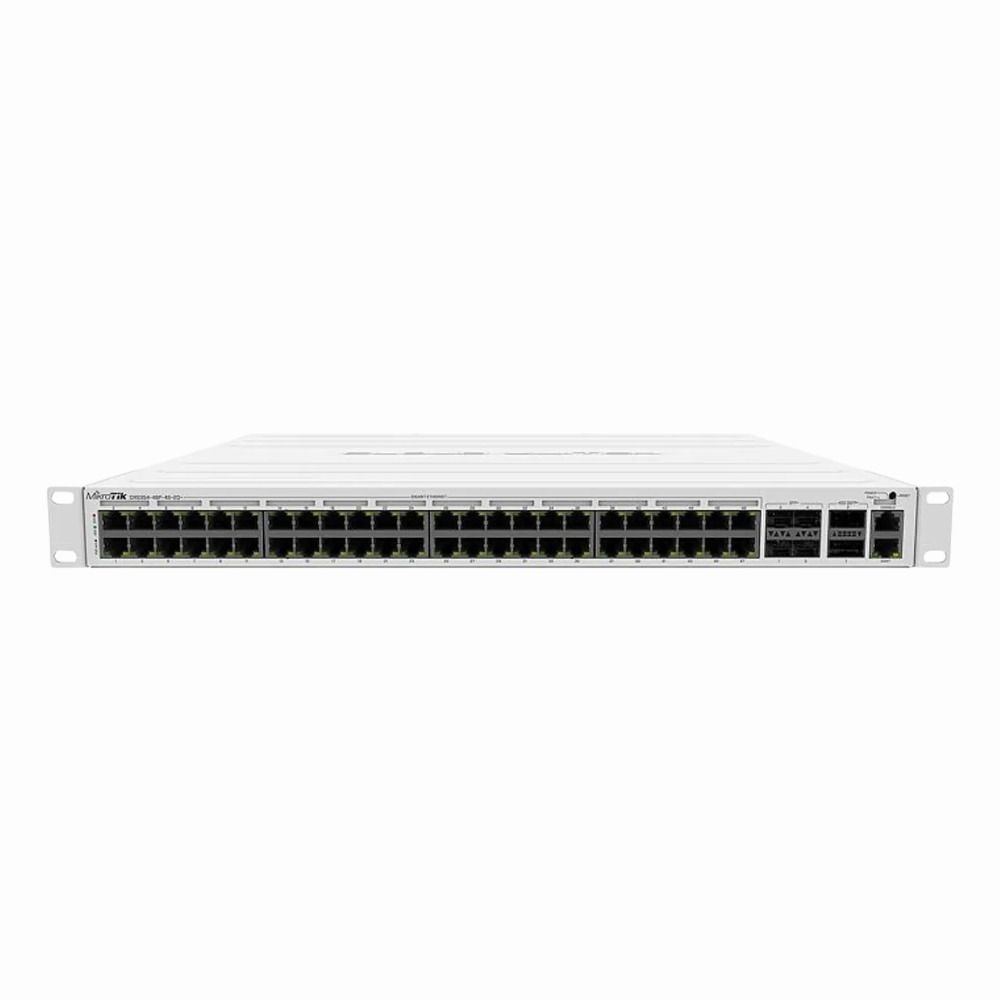

The CRS354-48G-4S+2Q+RM from Mikrotik serves as a combined router and switch with a focus on high port density and flexible connectivity. It fits well into networks needing a mix of traditional Ethernet ports and advanced 10G/40G fiber links, making it suitable for busy enterprise or data center setups. |
| General Information | |
|---|---|
| Brand | MikroTik |
| Part Number | CRS354-48G-4S+2Q+RM |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 54-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, 40G QSFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 1 Gbps (RJ-45),10 Gbps (SFP+),40 Gbps (QSFP+) |
| UpLink Ports | 6 |
| POE Support | No |
| Switching Capacity | 336 Gbps |
| Switch Forwarding Rate | 500 Mpps |
| DRAM | 1 GB |
| Flash Memory | 512 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+,QSFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | CLI (SSH), Web GUI (WebFig), Winbox, API, Serial Console |
| Security Features | 802.1X,Port Security,Access Control Lists (ACLs),Storm Control,DoS Protection,Firewall |
| Remote Management Protocol | HTTP,HTTPS,SSH,Telnet,SNMPv1/v2c/v3,API |
| Routing Protocol | Yes |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | -20 C to 60 C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s |
| Product Description |
|---|
The Mikrotik CRS354-48G-4S+2Q+RM is a versatile cloud router switch designed to handle both switching and routing tasks in medium to large network environments. It's often found in data centers, enterprise LANs, and ISP networks where a combination of high port density and advanced routing is needed. Built for network administrators and IT professionals who require flexible connectivity and reliable performance, this device supports a mix of standard copper and high-speed fiber connections. Its Layer 3 features simplify network management by combining routing and switching in one unit. Key Features
This switch is typically deployed in enterprise networks or service provider infrastructures where both large access layers and fast uplinks are required. Its blend of features provides a straightforward solution for consolidating devices and simplifying network design. Users benefit from a single device that can handle multiple roles without sacrificing performance, streamlining maintenance and reducing hardware footprint. |
