| Product Overview |
|---|

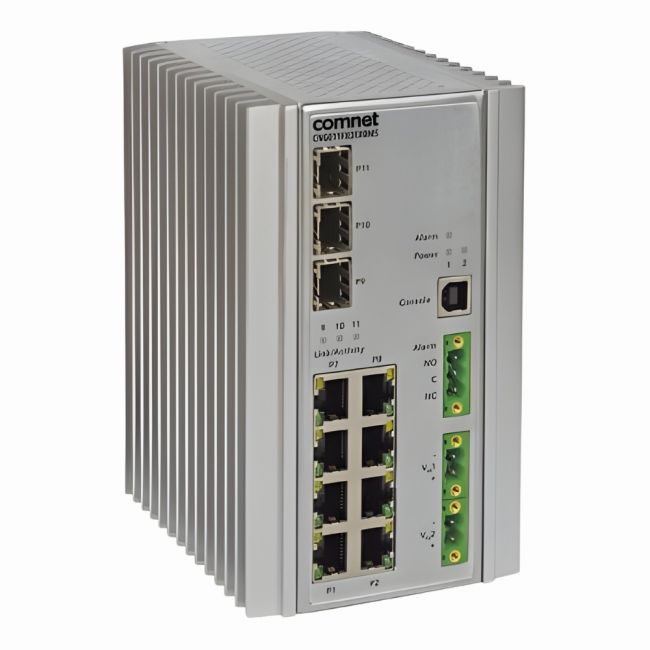

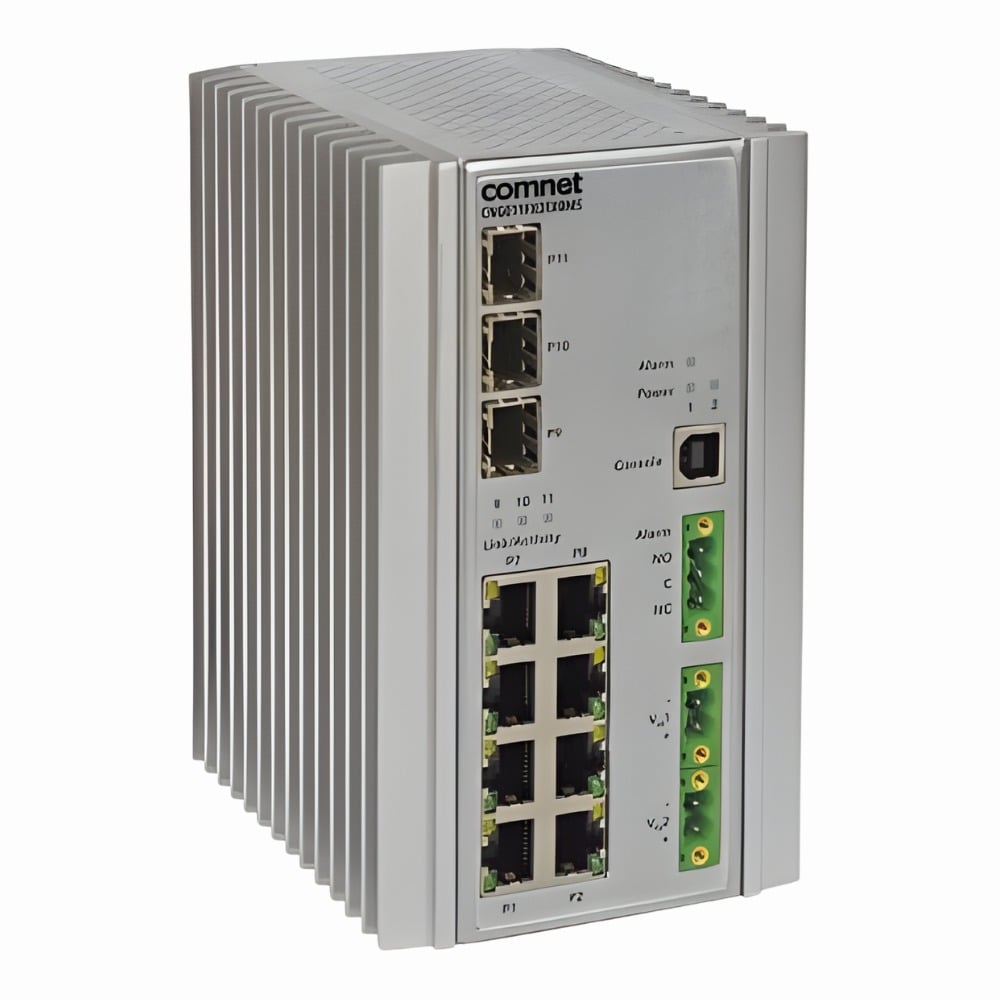

The CNGE3FE8MSPOE/24 is a Layer 2 managed switch that combines copper and fiber ports to support both Fast Ethernet and Gigabit connections. It fits well in environments requiring network segmentation and power delivery to devices over Ethernet, commonly seen in industrial setups or networked security installations. |
| General Information | |
|---|---|
| Part Number | CNGE3FE8MSPOE/24 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Mount Type | Wall Mount, DIN Rail |
| Switch Ports | 8 x 10/100Base-TX, 3 x 100/1000Base-FX |
| Number of Ports | 8-Ports |
| Port Type | 10/100Base-TX |
| Port Speed | 10/100 Mbps for RJ‑45, 100/1000 Mbps for SFP, 2.5 Gbps with supported SFPs |
| UpLink Ports | 3 × SFP (2 support up to 2.5 Gbps) |
| POE Support | PoE |
| Switching Capacity | 13.6 Gbps |
| DRAM | 1 GB |
| Flash Memory | 128 Mb |
| VLAN Support | Yes |
| Max VLANs Supported | Up to 256 VLANs |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ‑45, SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9600 Bytes |
| MAC Address Table Size | 8,000 Entries |
| Management and Configuration | |
|---|---|
| Remote Protocols | SNMP v1/v2c/v3, RMON |
| Management Interfaces | Web GUI, Telnet, CLI, Windows eVision monitoring |
| Security Features | HTTPS/SSH, ACL, 802.1X, Device Binding, Port Guardian |
| Security | 802.1X, Access Control Lists (ACLs), MAC address filtering, Port security |
| Remote Management Protocol | SNMP, HTTP/HTTPS (Web GUI), CLI (console), Telnet, SSH, RMON |
| Routing Protocol | None (Layer 2 switch) |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Physical Characteristics | |
|---|---|
| Weight | 4.00 |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX/100Base-FX), IEEE 802.3z/802.3ab (1000Base-X/T), IEEE 802.1Q (VLAN tagging), IEEE 802.1p (QoS), IEEE 802.3x (Flow control) |
| Product Description |
|---|
This network switch provides a mix of copper and fiber ports, suitable for integrating different types of network devices. It is often found in industrial and commercial environments where reliable data transfer and network management are essential. Built for network administrators needing control over traffic and segmentation, it supports Layer 2 features including VLANs and quality of service settings. The combination of 10/100Base-TX and 100/1000Base-FX ports allows flexible connectivity options. Key Features
Typically deployed in security systems, industrial automation, or enterprise networks, this switch helps connect multiple devices with both speed and reliability. Its PoE capability simplifies powering devices without extra cabling. |
