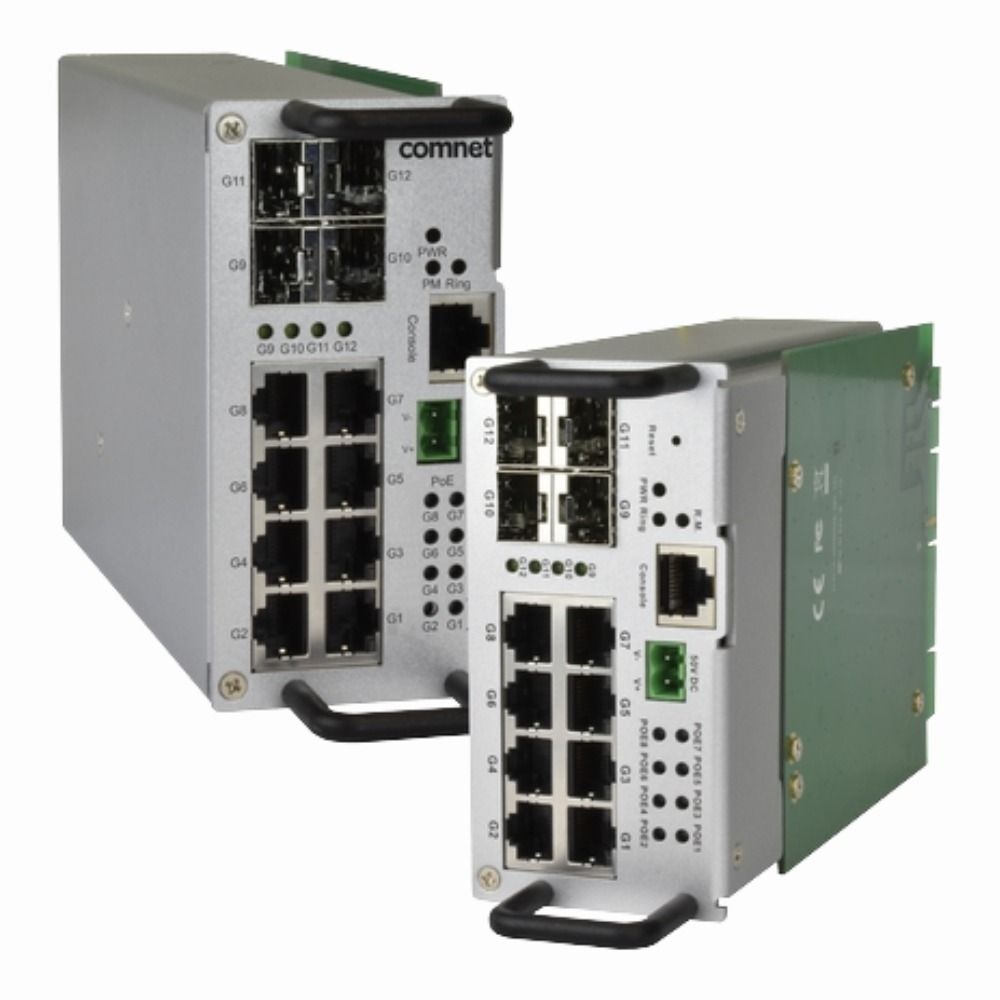

Name: CNGE12FX4TX8MS ComNet 8x1000Base-TX + 4x100/1000Base-FX Layer 2 Managed Fast Ethernet Switch
Brand: ComNet
SKU: CNGE12FX4TX8MS
Price: 1896.00 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The CNGE12FX4TX8MS combines eight copper ports with four fiber ports to provide flexible connectivity options. Built primarily for Layer 2 networking, it fits well in environments that require both fast Ethernet and fiber solutions, allowing for efficient traffic management and reliable data transmission across diverse network setups.

General Information
Brand	ComNet
Part Number	CNGE12FX4TX8MS
Condition	Refurbished

Technical Information
Switch Type	Managed Switch
Form Factor	Compact
Mount Type	Wall Mount, DIN Rail
Switch Ports	8 x 1000Base-T (RJ-45), 4 x 100/1000Base-FX (SFP)
Number of Ports	8-Ports
Port Type	1000Base-T, 1000Base-X, RJ-45, SFP
Port Speed	10/100/1000 Mbps
UpLink Ports	4 x SFP
POE Support	No
Switching Capacity	24 Gbps
Switch Forwarding Rate	17.86 Mpps
DRAM	128 MB
Flash Memory	32 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 2
Connector Type	RJ‑45, SFP

Performance
Latency	<10µs
Jumbo Frame Support	Up To 9600 Bytes
MAC Address Table Size	8,000 Entries

Management and Configuration
Remote Protocols	SNMP v1/v2c/v3, Telnet, SSH, HTTP/HTTPS, RMON
Management Interfaces	Web GUI,SNMP (v1/v2c/v3),CLI (Serial Console - RJ-45),SSH,Telnet
Security Features	802.1X, Port Security, RADIUS, DHCP Snooping
Security	802.1X, ACLs (L2/L3 filtering), Port Security, MAC Filtering, Storm Control
Remote Management Protocol	SNMP, SSH, Telnet, HTTP/HTTPS (Web GUI)

Power & Cooling
Fans	Fanless

Physical Characteristics
Dimensions	5.0 x 5.6 x 3.5 inches
Weight	4.00
Operating Temperature	-40°C to 75°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	RoHS, CE, FCC
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D

Product Description
The CNGE12FX4TX8MS is designed to deliver reliable network performance by combining copper and fiber connections in one managed switch. It is often found in business environments where robust and flexible network management is essential. This switch caters to IT professionals needing to control traffic with Layer 2 features and maintain network stability. Key Features Offers 8 copper ports supporting 1000Base-TX for fast, wired connections Includes 4 fiber ports capable of 100/1000Base-FX for longer distance communication Enables Layer 2 management for VLANs, QoS, and traffic prioritization Supports both standard and jumbo frames to enhance throughput Built with durable components suitable for various networking environments This switch is commonly deployed in office networks, industrial settings, and places requiring mixed media connections. It helps maintain smooth data flow and network segmentation, benefiting network administrators and users alike.

Use Cases
The CNGE12FX4TX8MS network switch is ideally suited for environments that require a blend of fiber optic and copper connections to support diverse network topologies. Network administrators in enterprise IT or campus settings benefit from its Layer 2 management capabilities for efficient segmentation and traffic control in complex infrastructure. It also accommodates scenarios where high-speed data transfer and resilient fiber links are critical. How It's Used: Deploying in university or corporate campus networks to connect multiple buildings using fiber while supporting copper end devices. Integrating into SMB network backbones requiring a mixture of fiber uplinks and copper desktop connections for scalable growth. Supporting edge computing sites where fiber provides reliable long-distance links and copper ports connect local devices. Implementing in data aggregation points within industrial automation networks, combining fast Ethernet with fiber for noise immunity. Facilitating storage clusters connectivity that demands low latency and high throughput leveraging both copper and fiber interfaces. This switch enhances operational efficiency by enabling flexible port configurations and advanced traffic management, ensuring consistent performance across mixed medium environments. Its Layer 2 functionality supports scalable network segmentation, making it a practical choice for evolving IT infrastructures requiring both speed and reliability.
