| Product Overview |
|---|

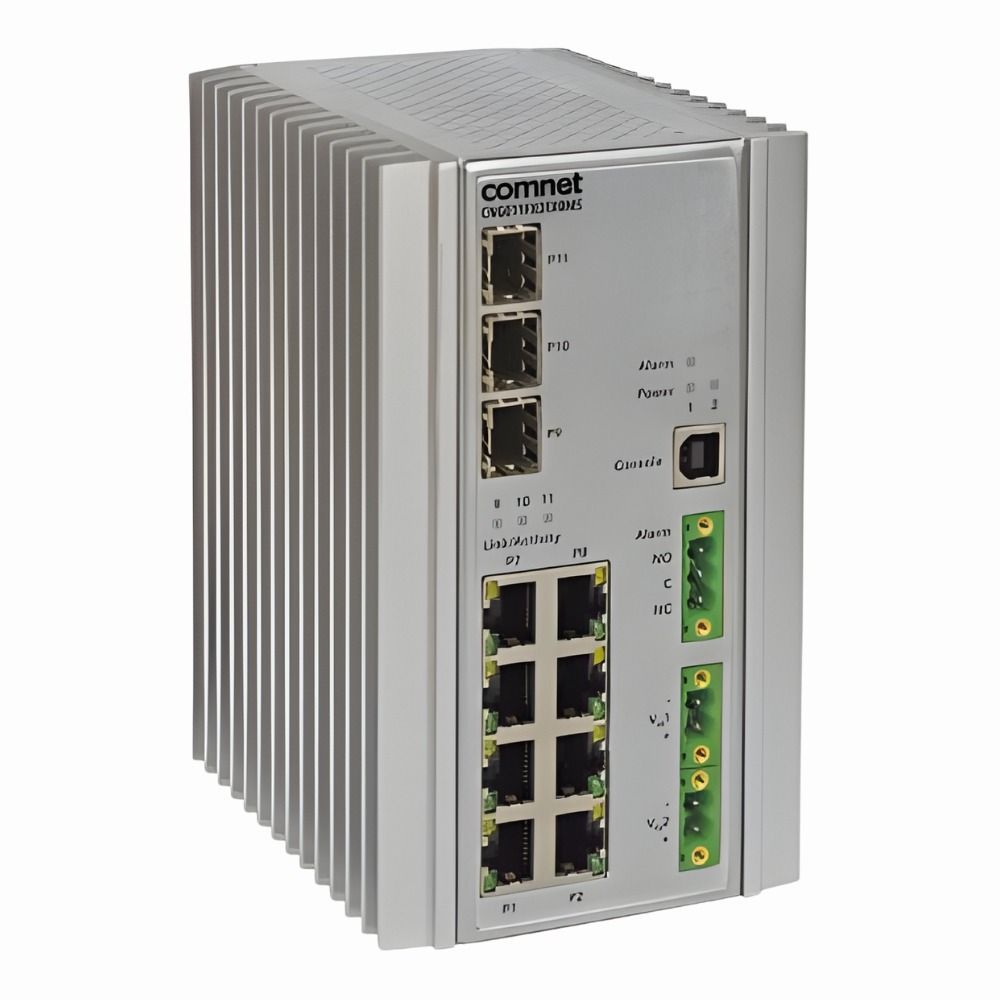

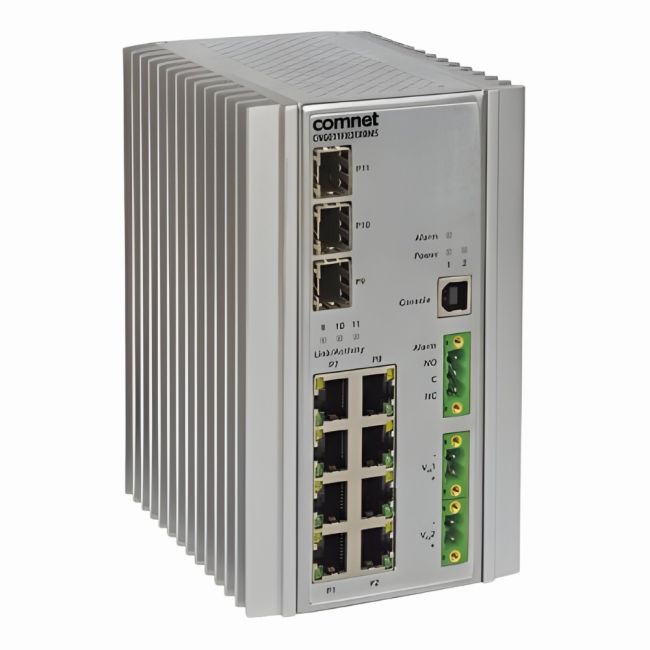

The CNGE11FX3TX8MSPOE/24 from ComNet is an 11-port managed Gigabit Ethernet switch designed for industrial settings. It combines fiber and copper ports with PoE capabilities to support a range of network devices, all while enduring harsh environments where reliability is essential. |
| General Information | |
|---|---|
| Part Number | CNGE11FX3TX8MSPOE/24 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Mount Type | Wall Mount, DIN Rail |
| Switch Ports | 11 |
| Port Type | 10/100/1000Base-T, RJ-45, SFP, Serial Console (RJ-45) |
| Port Speed | 100/1000 Mbps |
| UpLink Ports | 3 SFP Fiber Ports |
| POE Support | PoE+ |
| Switching Capacity | 28 Gbps |
| DRAM | 1 GB |
| Flash Memory | 128 Mb |
| VLAN Support | Yes |
| Max VLANs Supported | Supports up to 256 VLANs |
| Stackable | No |
| Layer Support | Layer 2+, Layer 3 |
| Connector Type | RJ-45 |
| Performance | |
|---|---|
| Latency | ≤7µs |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8,000 Entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static |
| Remote Protocols | SNMP v1/v2c/v3, RMON, HTTP/HTTPS, SSH, Telnet, console, Windows eVision utility |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (SSH/Telnet), SNMP v1/v2c/v3, Serial Console (RJ-45), RMON |
| Security Features | HTTPS/SSH, VLAN, ACLs, 802.1X, device binding, MAC security, RADIUS/TACACS+, ARP inspection, IP‑source guard, SNMPv3 |
| Security | 802.1X, RADIUS, TACACS+, Access Control Lists (ACLs), SSH, HTTPS |
| Remote Management Protocol | SNMPv1/v2c/v3, HTTP/HTTPS, SSH, Telnet |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | 24 VDC input; PoE budget up to 240 W (8 ports × 30W PoE+ max) |
| Physical Characteristics | |
|---|---|
| Dimensions | 6″ × 3.5″ × 4.5″ |
| Weight | 4.00 |
| Operating Temperature | -40 to +75 C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z (1000Base-X), IEEE 802.3x (flow control), IEEE 802.1Q (VLAN), IEEE 802.1p (QoS), IEEE 802.1D (STP), IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Product Description |
|---|
This industrially hardened 11-port Gigabit managed Ethernet switch is built for demanding network applications where durability and performance are critical. It combines three fiber optic ports with eight copper RJ45 ports, accommodating a mix of high-speed fiber and traditional Ethernet connections. Often found in industrial automation, transportation systems, and outdoor communications, this switch supports Power over Ethernet to power devices like IP cameras and wireless access points directly over the network cable. Network administrators benefit from its managed features that enhance control, diagnostics, and security across complex network setups. Key Features
This switch is typically deployed in industrial facilities, transportation hubs, and outdoor surveillance networks. It helps maintain steady network communications where environmental conditions might otherwise cause failures. Users rely on it to keep devices powered and connected without interruption. |
