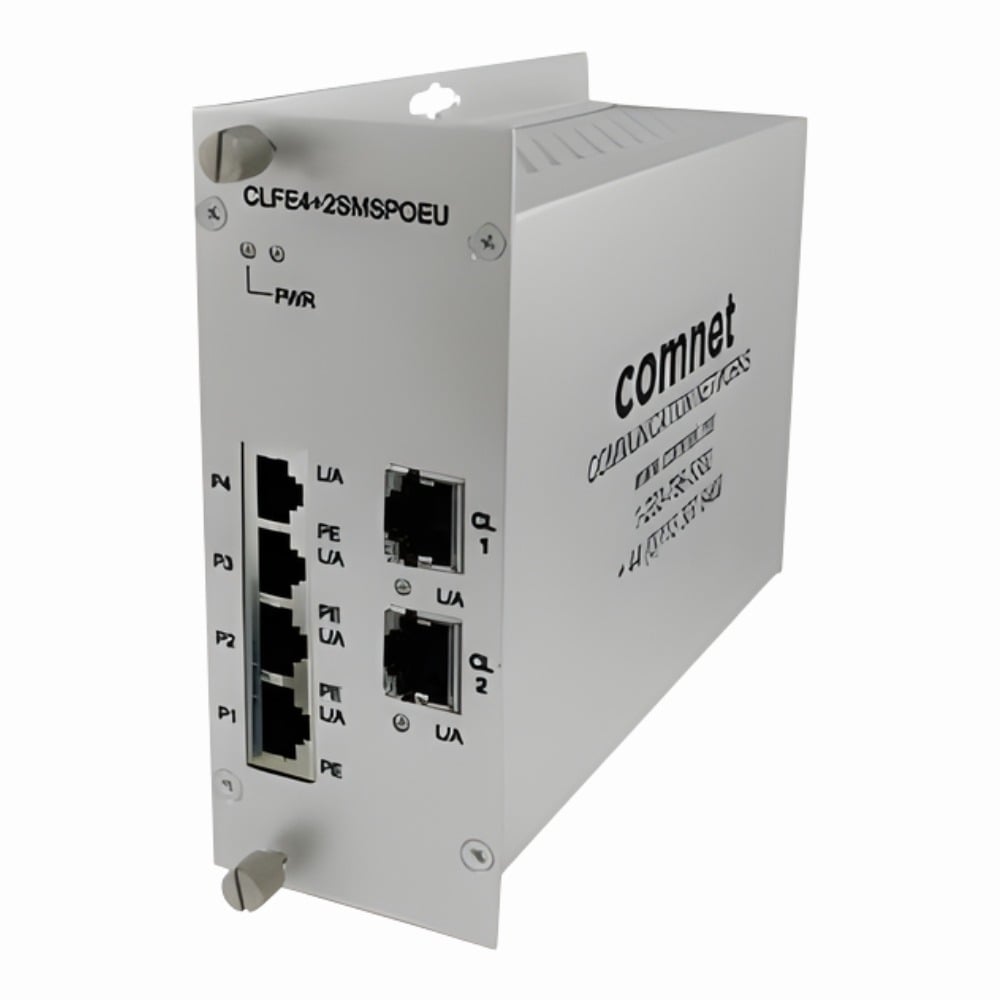

Name: CLFE4+2SMSU ComNet 10/100TX Drop/Insert/Repeat 4TX/2EX PoE+ Self-Managed Switch
Brand: ComNet
SKU: CLFE4+2SMSU
Price: 1152.00 USD
Availability: InStock
Rating: 4.8 (114 reviews)

Product Overview
The CLFE4+2SMSU by ComNet is a compact switch that combines copper and fiber ports with PoE+ capability, tailored for demanding environments. It fits well in applications that need reliable Ethernet extension and flexible network design, especially where remote powering of network devices is essential.

General Information
Brand	ComNet
Part Number	CLFE4+2SMSU
Condition	Refurbished

Technical Information
Switch Type	Managed Switch
Form Factor	Compact
Mount Type	DIN Rail
Switch Ports	6 (4 x 10/100TX copper, 2 x fiber drop/insert ports)
Number of Ports	6-Ports
Port Type	10/100Base-TX, SFP, Serial Console (RJ-45)
Port Speed	10/100 Mbps
UpLink Ports	2 x 100Base-FX
POE Support	PoE+
Switching Capacity	1.2 Gbps
Switch Forwarding Rate	0.89 Mpps
VLAN Support	Yes
Stackable	No
Layer Support	Layer 2
Connector Type	RJ-45

Performance
Latency	<10µs
Jumbo Frame Support	Up To 9000 Bytes
MAC Address Table Size	8,000 Entries

Management and Configuration
Remote Protocols	Yes
Management Interfaces	Web GUI, SNMP v1/v2c, CLI (Serial Console RJ-45)
Security Features	802.1X port authentication, MAC address filtering, DHCP Snooping, Storm Control, Port-based ACLs
Security	Port Security (MAC-based), 802.1X
Remote Management Protocol	HTTP/HTTPS,SNMP (v1/v2c),Telnet,SSH

Power & Cooling
Fans	Fanless (silent)
Power	30W per PoE+ port (120W max)

Physical Characteristics
Weight	4.00

Miscellaneous
Compliance Standards	RoHS, CE, FCC
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at

Product Description
This ComNet CLFE4+2SMSU switch provides a reliable way to extend Ethernet networks using both copper and fiber connections. It’s often found in environments where rugged networking is needed, such as industrial sites or transportation systems. Built for users who require a simple, self-managed switch with Power over Ethernet capabilities, it helps connect devices like cameras or access points without additional wiring. Key Features Four 10/100TX ports deliver PoE+ power to connected devices Two 1000EX fiber ports allow long-distance network links Drop/insert/repeat functionality supports flexible network topologies Self-managed operation simplifies deployment and maintenance Designed for harsh environments with robust construction The switch is typically deployed in settings like transit systems, security networks, and industrial automation. It plays a crucial role by providing consistent power and data exchange where conventional network equipment might not hold up. Users benefit from its straightforward setup and ability to handle mixed media connections seamlessly.

Use Cases
The CLFE4+2SMSU switch is commonly deployed in industrial and enterprise edge networks where extending Ethernet connectivity over fiber is required alongside power delivery to endpoint devices. Its self-managed architecture and mix of copper and fiber ports make it particularly suited for environments demanding network reliability with minimal manual intervention, such as manufacturing floors or campus infrastructures. How It's Used: Extending PoE+ to remote security cameras in campus surveillance installations where fiber is needed for long distances. Providing network drop and insert functionality in industrial automation settings with mixed fiber and copper cabling. Connecting wireless access points at remote outdoor locations requiring both data and power over Ethernet. Supporting point-to-point fiber links between building floors in enterprise networks with centralized power management. Facilitating edge computing sites where compact, self-managed switches simplify network architecture and deployment. By combining fiber extension with PoE+ and self-management, the CLFE4+2SMSU enhances operational efficiency in complex network topologies. It allows scalable deployment of powered devices while reducing configuration overhead, making it a practical solution for distributed infrastructures requiring resilient Ethernet connectivity.
