| Product Overview |
|---|

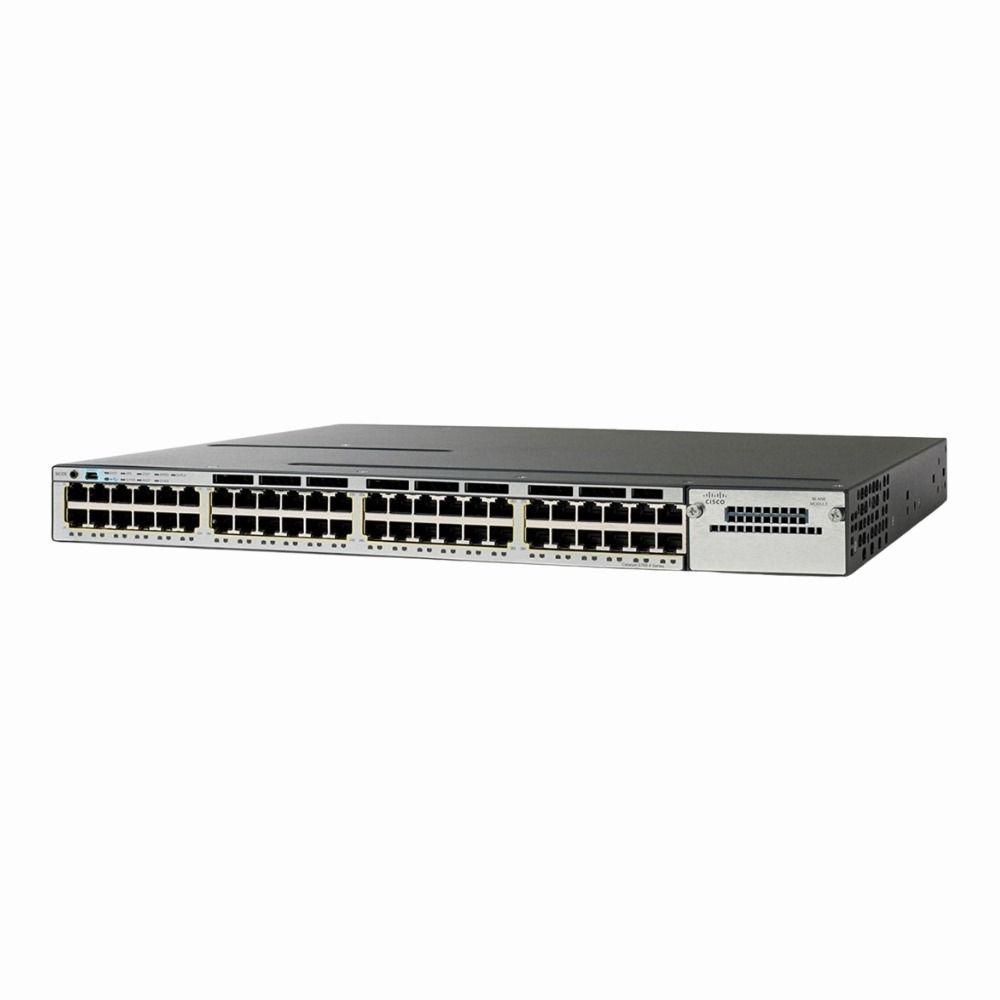

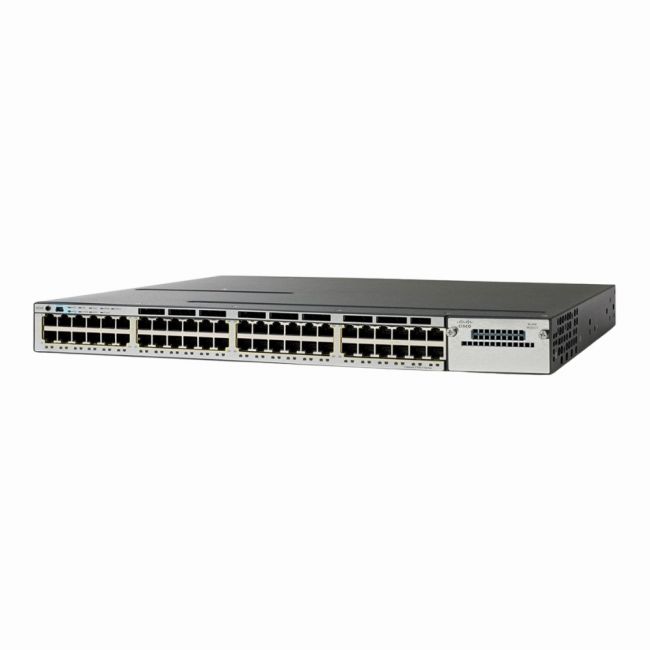

The Cisco Catalyst 3750-X 48-Port UPoE switch is a versatile network device that combines data and power delivery over Ethernet. It fits well in medium to large network setups where multiple devices require both connectivity and power, making network management simpler and more efficient. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3750X-48U-S |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 |
| POE Support | PoE++ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 41.7 Mpps |
| DRAM | 512 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console, SSH, Telnet), Web GUI, SNMPv1/v2/v3, RMON, HTTP/HTTPS, USB |
| Remote Management Protocol | SNMPv1/v2/v3, SSH, Telnet, HTTP/HTTPS, RMON |
| Power & Cooling | |
|---|---|
| Fans | Variable speed, front-to-back, field-replaceable |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.5 in |
| Weight | 10.00 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus, CSA |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The Cisco Catalyst 3750-X Series switch offers reliable Layer 2 switching with Power over Ethernet capabilities, delivering both power and data through a single cable. It's commonly used in enterprise and campus networks to connect devices like IP phones, wireless access points, and computers. Built for network administrators who need flexible management and scalability, this switch supports stacking to manage multiple units as one. It's often found in data centers or wiring closets where robust, high-speed connections are essential. Key Features
This switch is typically deployed in corporate networks, educational institutions, and service provider environments where reliable gigabit connections and power delivery are crucial. It helps streamline network infrastructure by reducing the need for separate power sources and allows easy expansion as networks grow. |
