| Product Overview |
|---|

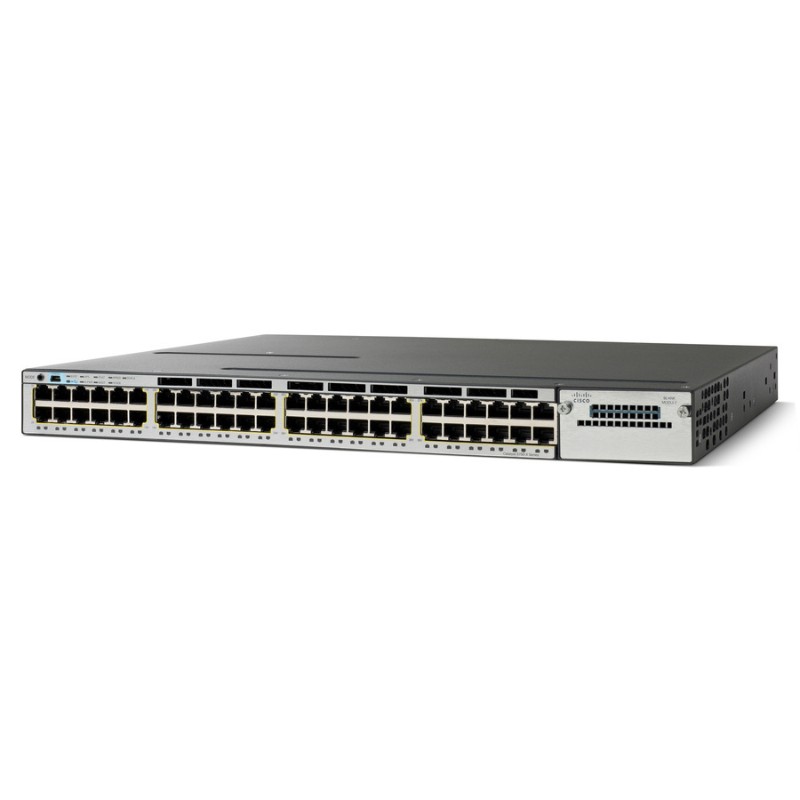

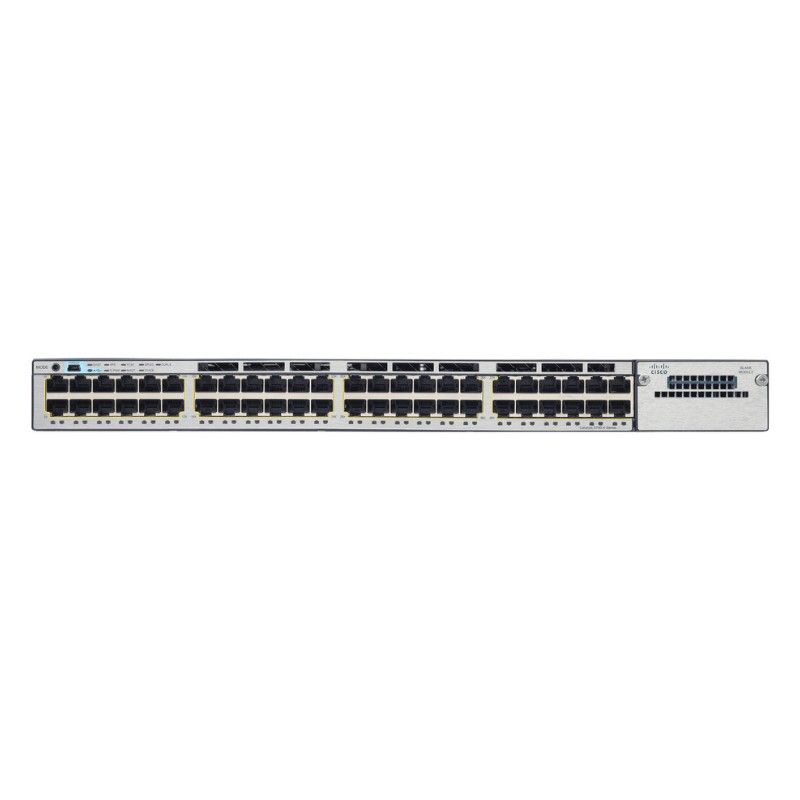

The Cisco Catalyst 3750-X 48T switch offers a dependable way to connect multiple devices within an enterprise network. It fits into rack environments and supports stacking to simplify network growth. This switch handles traffic at Layer 2, making it suitable for managing VLANs and maintaining network efficiency in medium to large networks. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3750X-48T-S |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, RJ-45, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 41.7 Mpps |
| DRAM | 512 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | Web UI (HTTP/HTTPS),Command Line Interface (CLI),Console (RJ-45),USB,SSH,Telnet,SNMP |
| Security | Yes |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS,RMON |
| Routing Protocol | Static,RIP,OSPF,EIGRP,BGP,VRRP,HSRP,GLBP,PIM-SM,IGMP |
| Power & Cooling | |
|---|---|
| Fans | 1 (field-replaceable, variable speed) |
| Power | 350W (maximum) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.5 in (H x W x D) |
| Weight | 10.00 |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad |
| Product Description |
|---|
The Cisco Catalyst 3750-X Series switch is designed to deliver reliable and high-performance Gigabit Ethernet connectivity. Often found in enterprise and campus networks, it manages data traffic efficiently and supports a wide range of network applications. Built for network administrators and IT professionals, this switch aids in creating scalable and manageable network infrastructures. Its stacking capabilities allow multiple units to operate as a single logical switch, simplifying management and reducing complexity. Key Features
This switch is widely deployed in enterprise wiring closets and data centers where reliable network access and performance are critical. It supports a variety of network topologies and helps maintain smooth data flow across connected devices. By handling network traffic intelligently, the 3750-X reduces bottlenecks and improves overall network stability. Its stacking ability means networks can grow without major infrastructure changes. |
