| Product Overview |
|---|

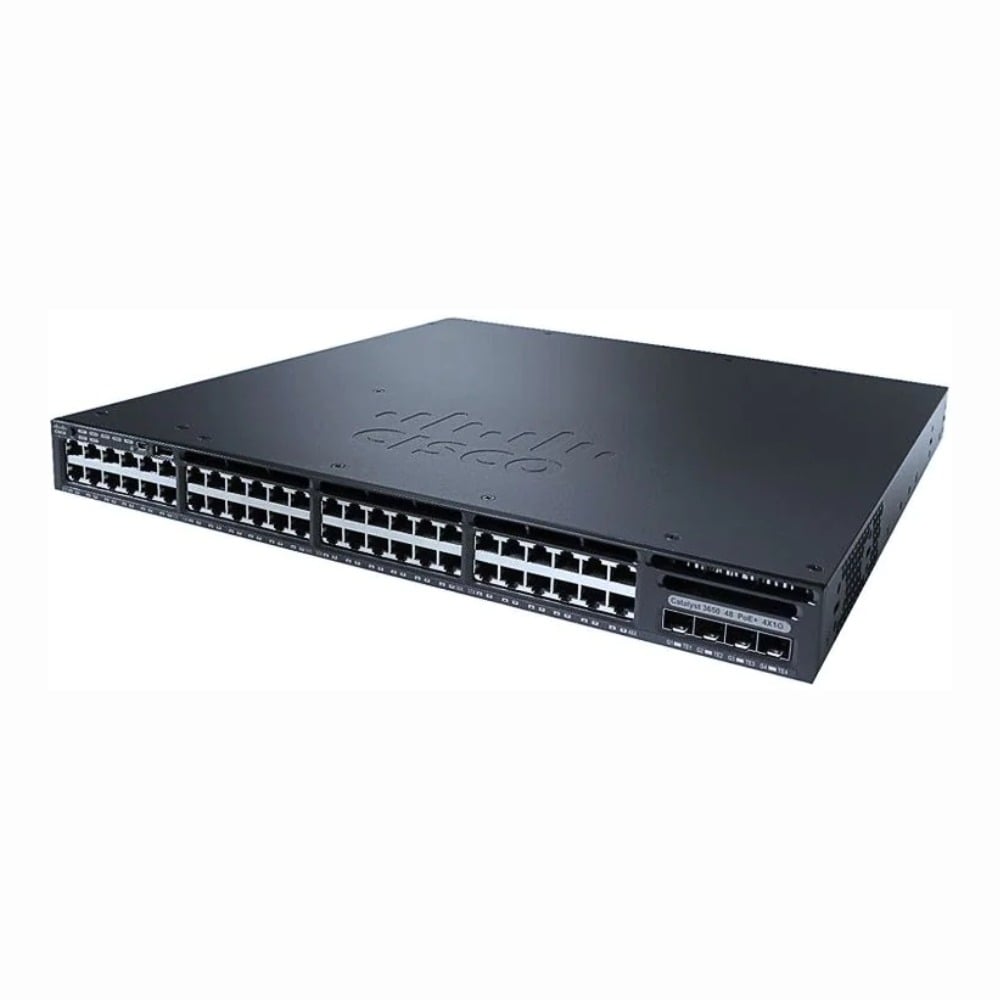

The Cisco Catalyst 3650 Series switch combines a high port density of PoE+ gigabit Ethernet ports with multiple SFP uplinks, serving as a versatile Layer 3 managed switch. It fits into standard 1U rack spaces and supports advanced routing and network management, making it a reliable choice for enterprise campus and branch networks. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | WS-C3650-48FS-L |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 95.24 Mpps |
| DRAM | 2 GB |
| Flash Memory | 4 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, PIM-SM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console),Web UI (GUI),SNMP,SSH,Telnet,NetConf/RESTCONF |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP/HTTPS,NetConf,RESTCONF |
| Routing Protocol | Yes |
| Power & Cooling | |
|---|---|
| Power | AC input 100-240 VAC; PoE budget up to 740W |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.5 in |
| Weight | 5.00 |
| Operating Temperature | 0 to 40 C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X,IEEE 802.3af,IEEE 802.3at |
| Product Description |
|---|
This Cisco Catalyst 3650 switch is built for delivering high-performance connectivity in enterprise networks. It combines 48 PoE+ ports to power devices like IP phones, access points, and cameras, alongside 4 SFP ports for uplinks or fiber connections. Commonly found in medium to large campus environments, it handles data and voice traffic efficiently with its Layer 3 routing features. Network administrators and IT teams rely on this switch for its robust management options and scalable architecture. It's often deployed in wiring closets or data centers where reliable gigabit speeds and network segmentation are essential. Key Features
This switch is typically installed in enterprise campus networks, combining connectivity and power for various endpoints in one device. It helps simplify infrastructure by reducing the need for separate power supplies while maintaining high throughput for demanding network environments. |
| Use Cases |
|---|
The Cisco Catalyst 3650 48-Port PoE+ Gigabit Switch is designed for environments requiring high-density, power-over-Ethernet connectivity combined with integrated Layer 3 routing. Typical deployments include enterprise campus networks and branch offices where reliable data and power delivery to edge devices such as IP phones, wireless access points, and security cameras are essential. How It's Used:
This switch enhances operational efficiency by integrating multilayer switching with PoE support in a compact rack form, simplifying infrastructure while offering scalability to accommodate network growth and evolving application demands. |
