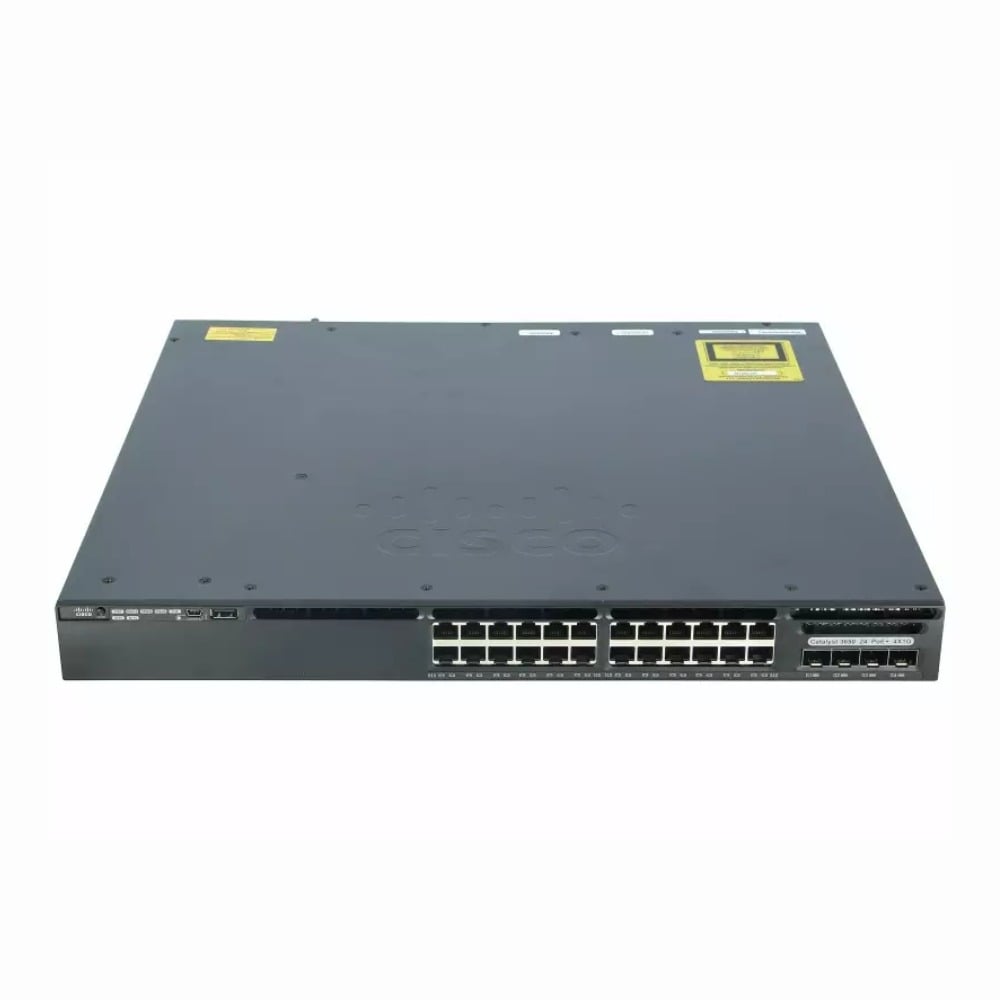

Name: WS-C3650-24TS-E Cisco 24-Port Gigabit Ethernet Layer 3 Switch with 4 SFP
Brand: Cisco
SKU: WS-C3650-24TS-E
Price: 239.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Cisco Catalyst 3650-24TS-E switch offers a blend of wired Gigabit Ethernet ports and fiber uplink options, fitting comfortably into enterprise network infrastructures. It serves well where both switching and basic routing are needed, typically acting as a core or distribution layer device within a rack-mounted setup.

General Information
Brand	Cisco
Part Number	WS-C3650-24TS-E
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T
UpLink Ports	4 SFP
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	77.37 Mpps
DRAM	2 GB
Flash Memory	4 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps
Remote Protocols	Yes
Management Interfaces	CLI (SSH, Telnet), Web UI (HTTP/HTTPS), SNMP, RMON, Cisco Prime
Remote Management Protocol	SSH,Telnet,HTTP,HTTPS,SNMP
Routing Protocol	Yes

Power & Cooling
Power	AC Input 100-240 VAC, 50-60 Hz; Typical ~60W (no PoE)

Physical Characteristics
Dimensions	1.73 x 17.5 x 15.7 in
Weight	10.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s

Product Description
The Cisco Catalyst 3650-24TS is a versatile network switch designed to handle high-performance enterprise networking tasks. It's commonly used in medium to large business environments where reliable Gigabit Ethernet connectivity is necessary for both data and voice traffic. Built for network administrators and IT professionals, this switch offers Layer 3 capabilities allowing routing between different network segments without requiring an external router. Key Features Supports 24 RJ-45 ports delivering 10/100/1000 Mbps connectivity for wired devices Includes 4 SFP ports to add fiber optic uplinks for extended reach and faster backbone connections Offers Layer 3 routing features such as OSPF and EIGRP to manage traffic efficiently Designed for rack mounting to fit standard data center setups Managed switch functionality for configuration and monitoring via Cisco IOS software This switch is typically found in network racks within corporate offices or data centers, providing essential connectivity for servers, workstations, and IP-based phones. Its routing features help streamline internal traffic and improve network performance without extra hardware.

Use Cases
The Cisco WS-C3650-24TS-E switch is ideal for mid-sized enterprise networks requiring integrated Layer 3 routing and high-performance Gigabit Ethernet connectivity. It is particularly suitable for environments that demand a combination of robust wired access and fiber uplinks, such as business campuses and distribution layer implementations within data centers. How It's Used: Deploying in enterprise campus distribution layers to aggregate access switches and route traffic efficiently. Supporting small to medium business networks needing reliable Layer 3 routing without additional hardware. Providing network connectivity in data center edge deployments where fiber uplinks connect to core switches. Facilitating segmented VLAN routing in multi-tenant office environments requiring secure traffic separation. Integrating in remote branch office setups that require consolidated switching and routing with limited IT infrastructure. This switch enhances operational efficiency by consolidating switching and routing functions in a rack-mountable platform, enabling scalable network designs. Its combination of Gigabit Ethernet and SFP ports supports varied connectivity demands while maintaining consistent performance across enterprise and distributed network segments.
