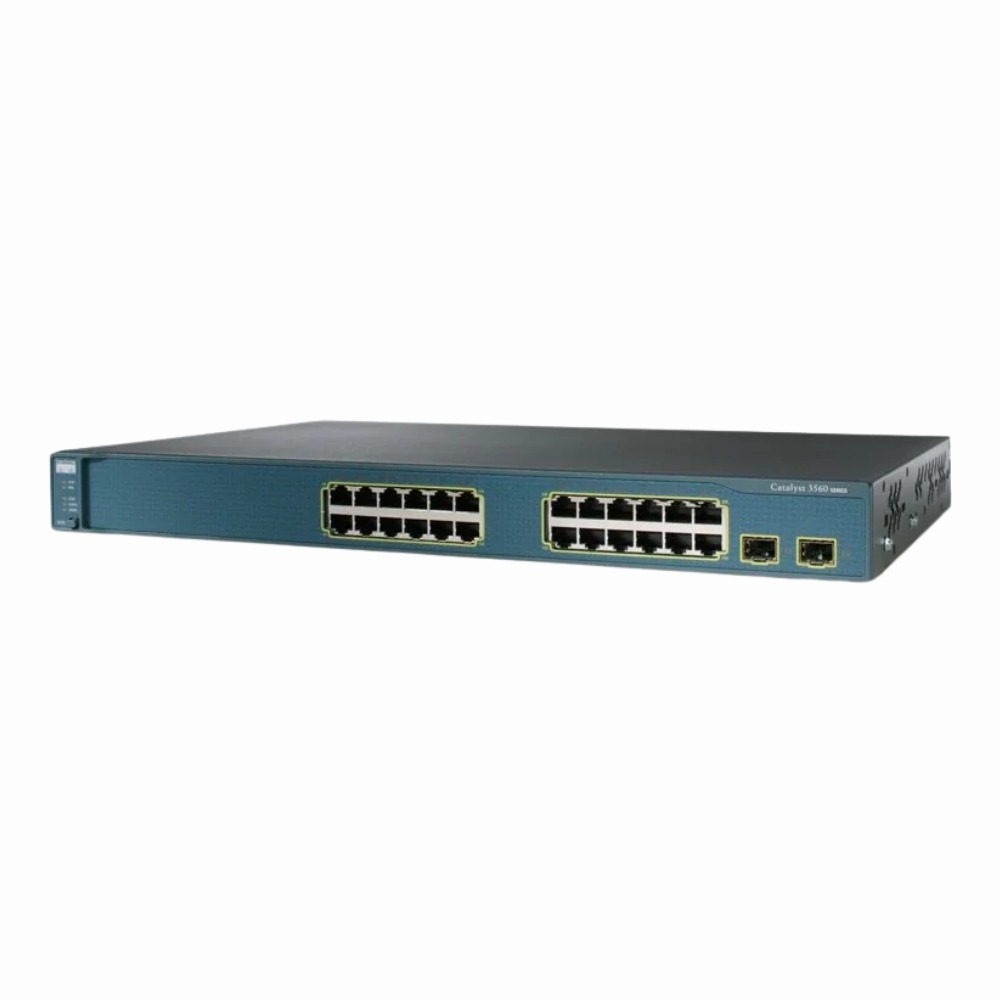

Name: WS-C3560-24TS-E Cisco 24-Port 10/100Base-TX Layer 3 Managed Switch
Brand: Cisco
SKU: WS-C3560-24TS-E
Price: 109.00 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Overview
The Cisco Catalyst 3560-24TS-E is a Fast Ethernet switch that provides both device connectivity and Layer 3 routing within a compact rack-mountable chassis. It fits where reliable network access and basic routing are needed, such as in small enterprise networks or branch offices. The switch balances port density with manageability, making it a practical choice for networks requiring a blend of switching and routing capabilities.

General Information
Brand	Cisco
Part Number	WS-C3560-24TS-E
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100Base-TX, SFP, Serial Console (RJ-45)
Port Speed	10/100Base-TX
UpLink Ports	2
POE Support	No
Switching Capacity	8.8 Gbps
Switch Forwarding Rate	6.55 Mpps
DRAM	64 MB
Flash Memory	32 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP, HSRP, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (Console/SSH),Web GUI (Cisco Network Assistant),SNMP,RMON,HTTP/HTTPS,Telnet
Remote Management Protocol	SNMP,SSH,HTTP/HTTPS,Telnet,RMON
Routing Protocol	Static,RIP,OSPF

Physical Characteristics
Dimensions	1.73 x 17.5 x 14.5 inches
Weight	3.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.1p,IEEE 802.1q,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3x,IEEE 802.1X

Product Description
The Cisco Catalyst 3560-24TS-E is a managed Fast Ethernet switch that combines reliable connectivity with routing features to streamline networks. It's built for small to medium-sized business environments where both wired device connections and routing between VLANs are needed. Often found in enterprise wiring closets or branch offices, this switch supports network administrators in delivering stable and scalable network access. IT teams benefit from its Layer 3 capabilities, which allow better traffic control and segmentation. Key Features Supports 24 Fast Ethernet ports enabling connections to a variety of end devices Includes 2 SFP slots for fiber optic uplink flexibility and longer distances Offers Layer 3 routing functions like static routing to improve traffic flow Designed with a 1U form factor to fit standard rack setups efficiently Managed switch features allow detailed configuration and monitoring This switch typically sits in network racks within office environments or data aggregation points, helping to connect workstations, printers, and servers. Its routing abilities help reduce congestion and improve internal traffic handling, making daily operations smoother for network users.

Use Cases
The Cisco Catalyst 3560-24TS-E switch is optimized for small to medium-sized enterprise environments requiring integrated Layer 3 routing alongside high-density Fast Ethernet connectivity. Its design suits network closets or branch office locations where both device aggregation and inter-VLAN routing are essential for performance and manageability. How It's Used: Connecting user workstations and IP phones in SMB office floors requiring segmented network traffic control. Providing Layer 3 routing capabilities for branch offices needing efficient intra-office data flow without additional routers. Supporting fiber uplinks to core networks or data centers in campus environments via SFP ports. Deploying in rack-mounted network closets to consolidate access layer devices while enabling basic routing and QoS policies. Facilitating network segmentation and management in educational or healthcare institutions with multiple VLANs. This switch supports operational efficiency by reducing the need for separate routing devices while streamlining traffic management in edge networks. Its blend of switching and Layer 3 features allows scalable network designs capable of adapting to growing user demands and evolving infrastructure requirements.
