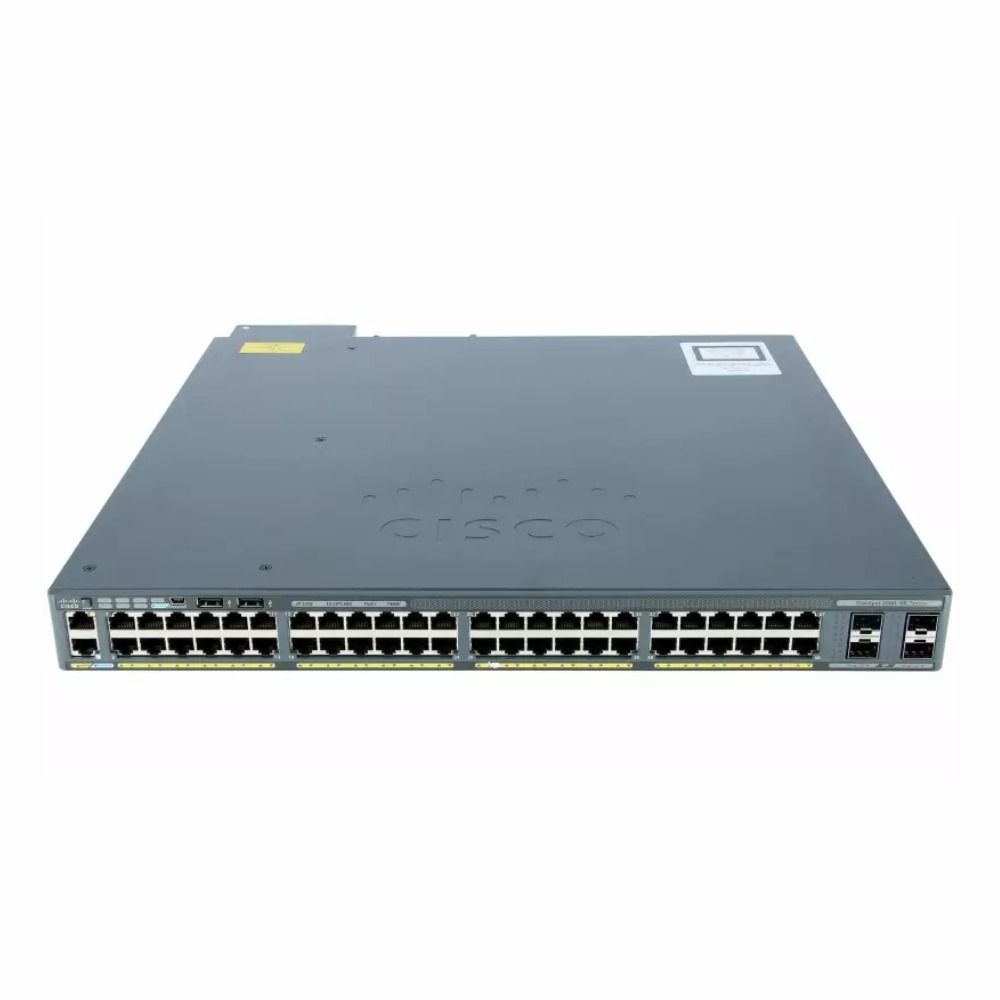

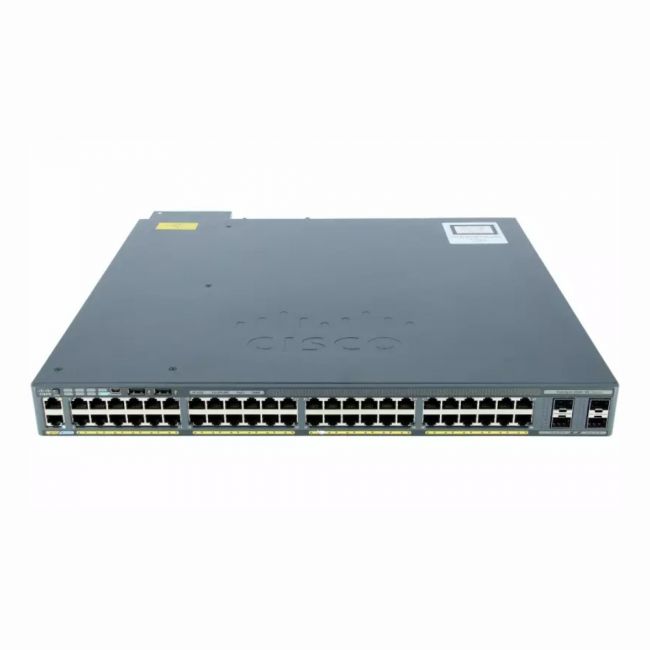

Name: WS-C2960XR-48LPS-I Cisco 48-Port PoE+ Gigabit Layer 3 Switch with 4 SFP
Brand: Cisco
SKU: WS-C2960XR-48LPS-I
Price: 189.00 USD
Availability: InStock
Rating: 4.8 (130 reviews)

Product Overview
The Cisco Catalyst 2960-XR-48LPS-I is a Layer 3 managed switch offering 48 PoE+ Gigabit Ethernet ports and 4 SFP uplinks. It fits into a 1U rack slot and is used to connect, power, and route traffic for network devices in enterprise and campus settings. It's designed to provide reliable, scalable network access with integrated power delivery and flexible uplink options.

General Information
Brand	Cisco
Part Number	WS-C2960XR-48LPS-I
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, RJ-45, SFP, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T
UpLink Ports	4 x SFP
POE Support	PoE+
Switching Capacity	216 Gbps
Switch Forwarding Rate	101.19 Mpps
DRAM	512 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP
Remote Protocols	Yes
Management Interfaces	Web (GUI), CLI (SSH/Telnet/Console), SNMP, RMON
Remote Management Protocol	SSH,Telnet,HTTP,HTTPS,SNMP
Routing Protocol	Static,RIP

Power & Cooling
Fans	1
Power	AC input 100-240VAC, 47-63Hz; PoE budget up to 740W

Physical Characteristics
Dimensions	1.73 x 17.5 x 15.5 in
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at

Product Description
The Cisco Catalyst 2960-XR Series switch is built for high-performance network access and power delivery. It provides 48 PoE+ ports to support devices like IP phones, wireless access points, and security cameras, making it a solid choice for enterprise environments. Often found in campus networks and small to medium data centers, this switch helps streamline network management while delivering reliable connectivity. Key Features Supports Power over Ethernet+ across all 48 ports, enabling device power and data over a single cable Offers 4 SFP uplink ports to connect to fiber networks or aggregation switches Includes Layer 3 capabilities such as static routing and dynamic routing protocols Delivers simplified network management with Cisco IOS Software Designed to fit into standard 1U rack spaces, saving physical installation room Deployments typically include office network access layers and branch office setups, where a combination of fast Ethernet and power is needed. The switch’s routing features help manage traffic efficiently, improving overall network performance. Its robust design makes it a dependable backbone for connecting and powering multiple devices in a consolidated network space.

Use Cases
The Cisco Catalyst 2960-XR-48LPS-I is commonly deployed in enterprise campus networks and large SMB environments where robust PoE+ support and Layer 3 routing are essential. It accommodates high-density device connectivity and uplink flexibility, making it suitable for IT teams managing complex network segments requiring integrated power delivery and advanced traffic management. How It's Used: Providing PoE power and Gigabit connectivity for IP phones and wireless access points across corporate office floors. Serving as a distribution switch within campus LANs to enable inter-VLAN routing and segmentation for departmental traffic isolation. Supporting edge computing deployments by connecting and powering IoT devices in manufacturing or logistics environments. Integrating with fiber backbone infrastructure via SFP uplinks to ensure scalable bandwidth for data center access layers in mid-sized enterprises. Facilitating remote branch office networks requiring reliable Layer 3 switching with centralized power sourcing for network endpoint devices. This switch enhances operational efficiency by consolidating power and data delivery while offering scalable Layer 3 capabilities. Its design supports evolving network demands and simplifies infrastructure management across diverse IT environments.
