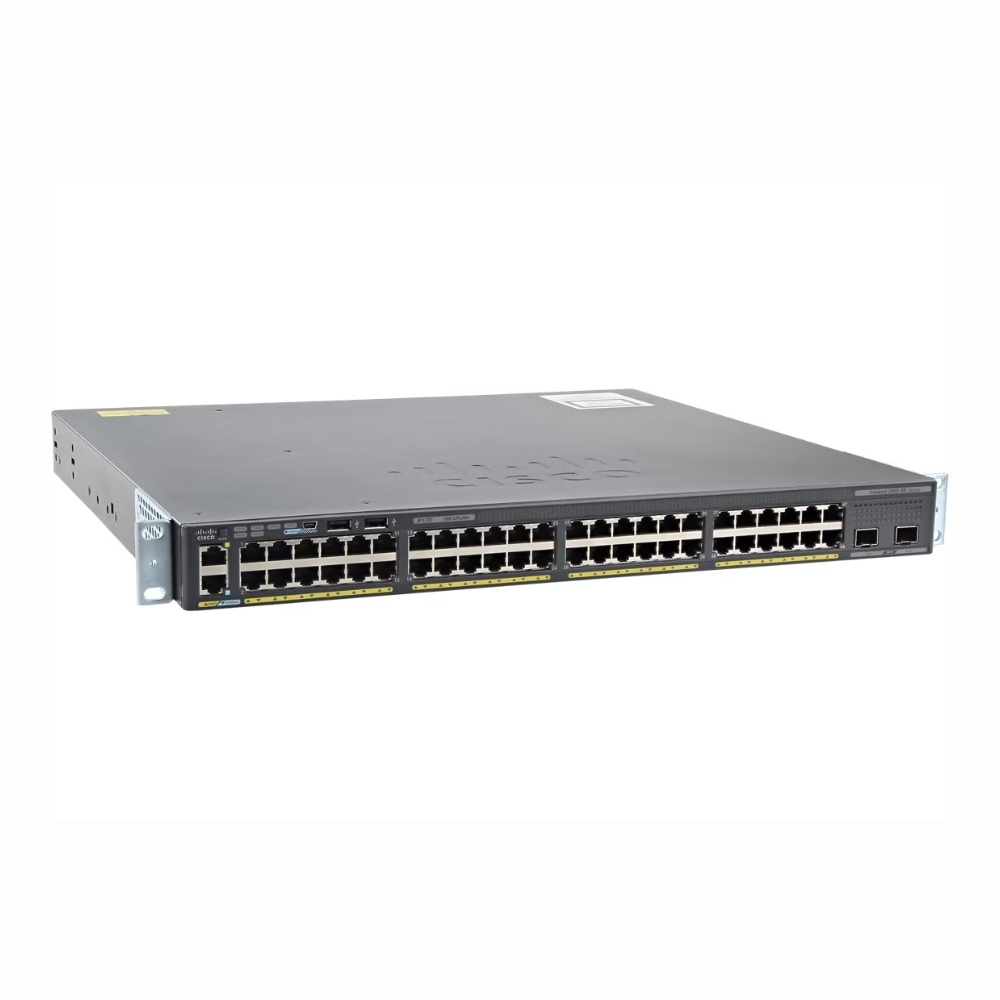

Name: WS-C2960XR-48LPD-I Cisco 48-Port PoE+ Gigabit Switch Layer 3 1U Rack
Brand: Cisco
SKU: WS-C2960XR-48LPD-I
Price: 436.50 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Cisco Catalyst 2960-XR Series switch offers a balance of high port density, Power over Ethernet capabilities, and Layer 3 routing in a compact 1U rack-mountable package. It fits well in enterprise networks where powering devices and managing traffic locally is essential, providing reliable connectivity and straightforward management.

General Information
Brand	Cisco
Part Number	WS-C2960XR-48LPD-I
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 10G SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T
UpLink Ports	2 x SFP+ (10G)
POE Support	PoE+
Switching Capacity	216 Gbps
Switch Forwarding Rate	95.2 Mpps
DRAM	512 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, VRRP, IGMP
Remote Protocols	Yes
Management Interfaces	CLI (Console/SSH),Web (HTTP/HTTPS),SNMP (v1/v2/v3),RMON,USB
Remote Management Protocol	SSH,Telnet,HTTPS,HTTP,SNMPv1/v2/v3,RMON
Routing Protocol	Static,RIP

Power & Cooling
Fans	1 (variable speed, field-replaceable)

Physical Characteristics
Dimensions	1.73 x 17.5 x 14.9 in
Weight	3.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1X

Product Description
The Cisco Catalyst 2960-XR Series switch is built for enterprise networks requiring robust performance and advanced features. It handles data traffic with PoE+ to power devices such as IP phones and access points directly through the Ethernet cables. Often found in medium to large office environments, this switch supports Layer 3 routing protocols, making it suitable for managing internal network traffic efficiently. Network administrators benefit from its reliability and simplified management tools. Key Features 48 ports providing Power over Ethernet Plus for powering devices without separate adapters Two 10 Gbps SFP+ ports for high-speed uplinks or stacking Layer 3 functionality including static routing and advanced security features Compact 1U rack form factor fitting standard network racks Energy-efficient design reducing operational costs This switch is typically deployed in wiring closets or data centers where high port density and reliable PoE support are needed. It plays a critical role in ensuring smooth communication between various networked devices without bottlenecks.

Use Cases
The Cisco Catalyst 2960-XR-48LPD-I switch is ideal for enterprise campus networks and branch offices requiring high port density combined with advanced Layer 3 functionality. Organizations that need to power IP phones, wireless access points, and security cameras while maintaining efficient network segmentation and routing benefit from this switch's capabilities. How It's Used: Deploying in enterprise wiring closets to provide centralized PoE+ support for IP telephony and wireless infrastructure. Supporting medium-sized branch offices with local routing and high-speed uplinks to data centers or WAN connections. Implementing in education campuses to segment network traffic and deliver power to classroom devices and security systems. Serving as an access layer switch in healthcare facilities where reliable connectivity and device powering are critical. Integrating into retail environments that require secure, scalable connectivity for point-of-sale systems and surveillance cameras. Utilizing in edge computing scenarios to aggregate data from IoT devices and perform local routing before forwarding to core networks. This switch enhances network efficiency by consolidating power and data delivery in a single platform while enabling scalable Layer 3 routing and uplinks. Its rack-mountable form factor supports dense deployment scenarios and flexible network topology designs, meeting evolving enterprise connectivity demands.
