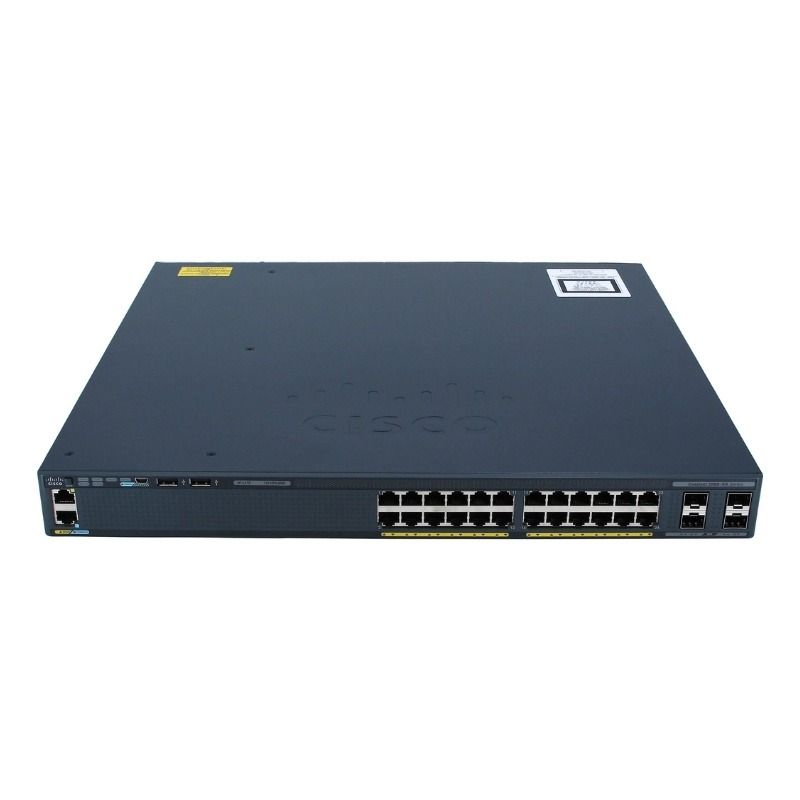

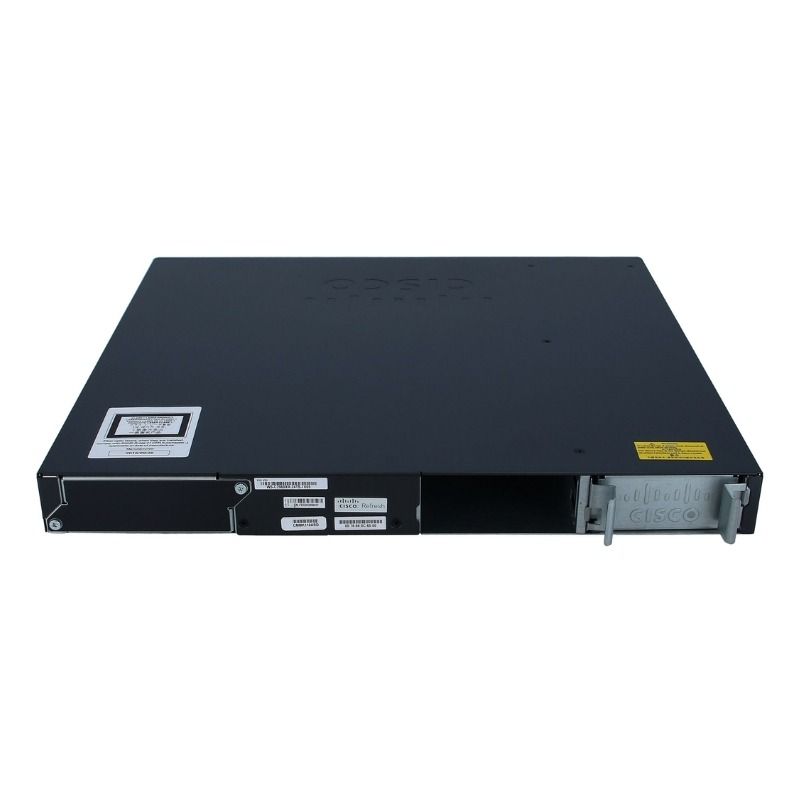

Name: WS-C2960XR-24TS-I Cisco Catalyst 2960-XR Series 2960XR-24TS 24 x Ports 10/100/1000Base-T + 4 x SFP Uplink Ports Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch
Brand: Cisco
SKU: WS-C2960XR-24TS-I
Price: 214.00 USD
Availability: InStock
Rating: 4.8 (115 reviews)

Product Overview
The Cisco Catalyst 2960XR Series Switch (WS-C2960XR-24TS-I) is a high-performance managed L3 stackable switch that provides excellent connectivity and switching capacity. With its advanced security features, robust routing capabilities, and reliable power supply, this switch is a perfect choice for businesses needing to manage and secure their network. Its flexible remote management options and rack-mountable design make it an ideal solution for enterprise-level applications, ensuring optimal network performance and security.

General Information
Brand	Cisco
Part Number	WS-C2960XR-24TS-I
Series	Catalyst 2960XR
Condition	Refurbished

Technical Information
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24 x 10/100/1000 Ethernet
Number of Ports	24-Ports
Switching Capacity	216 Gbps
Switch Forwarding Rate	107.1 Mpps
DRAM	512 MB
Flash Memory	128MB
Connector Type	RJ-45, SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32,000 Entries

Management and Configuration
Security	DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, ACLs, 802.1X authentication, TrustSec
Remote Management Protocol	CLI, SNMP, HTTP/HTTPS, Telnet, SSH, RADIUS, TACACS+
Routing Protocol	Static, RIP, OSPF, EIGRP, PIM, VRRP, HSRP

Power & Cooling
Fans	Fixed Redundant Fans
Power	250W AC
Power Supply	250W AC Power Supply

Physical Characteristics
Dimensions	1.75" x 17.5" x 16"
Weight	10.00

Miscellaneous
Compliant Standards	IEEE 802.1s, 802.1w, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3x, 802.3ab

Product Description
The Cisco Catalyst 2960XR Series Switch (Model: WS-C2960XR-24TS-I) is a high-performance managed Layer 3 switch designed for enterprise network environments. With 24 x 10/100/1000 Ethernet ports, this stackable switch delivers excellent throughput and reliability. It provides a switching capacity of 216 Gbps and a forwarding rate of 107.1 Mpps, ensuring efficient and seamless data transfer across the network. The switch features a 250W AC power supply and is equipped with fixed redundant fans for enhanced cooling and continuous operation. This switch supports advanced security protocols such as DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, and 802.1X authentication, ensuring a secure network environment. It also supports a variety of routing protocols, including static routing, RIP, OSPF, EIGRP, and PIM, providing flexibility for network configuration. With 512 MB of DRAM and 128 MB of flash memory, it offers ample resources for optimal performance. Key Features 24 x 10/100/1000 Ethernet ports for flexible connectivity 216 Gbps switching capacity and 107.1 Mpps forwarding rate for efficient data transfer Advanced security features including DHCP Snooping, Dynamic ARP Inspection, and IP Source Guard Supports routing protocols such as static, RIP, OSPF, EIGRP, and PIM Rack-mountable 1U design for easy installation 250W AC power supply with redundant cooling fans for reliability CLI, SNMP, HTTP/HTTPS, Telnet, SSH, RADIUS, and TACACS+ for remote management VLAN support with 4094 VLAN IDs for network segmentation Fixed redundant fans for enhanced thermal management The WS-C2960XR-24TS-I is ideal for organizations looking to implement a robust, secure, and scalable networking solution. Its combination of advanced features, high-performance specifications, and energy-efficient design makes it a valuable asset for both small and medium-sized enterprise networks.

Use Cases
The Cisco Catalyst 2960XR-24TS-I switch is predominantly deployed in medium to large enterprise network environments where reliable Layer 3 routing and high port density are critical. It is especially suited for IT infrastructures requiring robust security and seamless scalability, such as corporate campuses, branch offices, and data aggregation points. How It's Used: Facilitating core network switching and routing in enterprise campus networks, supporting high user densities and diverse traffic types. Serving as an aggregation switch in branch office locations to consolidate multiple access points and simplify network management. Enabling secure network segmentation and routing between departmental VLANs in corporate data centers. Supporting virtualization environments by providing reliable connectivity and advanced Layer 3 capabilities for server clusters. Integrating with remote network management tools to allow centralized configuration and monitoring across distributed enterprise sites. This switch enhances operational efficiency by consolidating switching and routing functions in a single device, reducing network complexity. Its stackable design and advanced security features enable scalable, manageable network growth while maintaining performance standards required in demanding IT environments.
