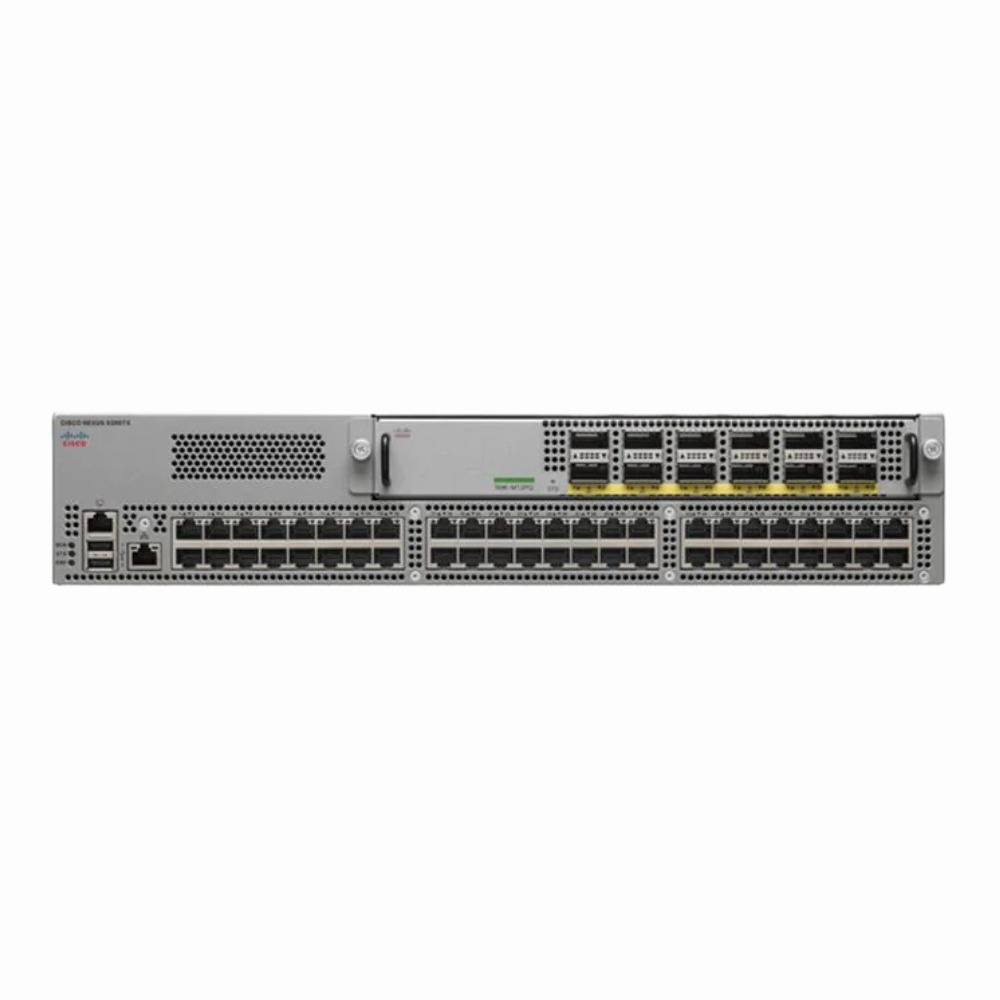

N9K-C9396TX Cisco Nexus 9000 48x10GBase-X 12xQSFP+ Layer 3 Switch
SKU:
N9K-C9396TX
Weight: 3.00 lbs
Condition: Refurbished
- 48 x 10GBase-X ports for high-speed connectivity
- 12 x QSFP+ ports supporting 40Gbps uplinks
- Layer 3 managed switch with advanced routing features
- 2U rack-mountable design optimized for data centers
In stock
$219.00
Product Overview |
|---|
The Cisco Nexus 9000 Series N9K-C9396TX is a versatile Layer 3 managed switch designed for data centers and enterprise networks. It combines high-density 10GBase-X ports with QSFP+ uplinks to deliver scalable, high-speed connectivity. The switch fits well into rack environments, offering robust routing capabilities and seamless integration with Cisco’s network operating system for efficient management. |
General Information |
|
|---|---|
| Brand | Cisco |
| Part Number | N9K-C9396TX |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Ports | 48 x 10GBase-X SFP+,12 x QSFP+ (40G) |
| Number of Ports | 48-Ports |
| Port Type | SFP+, QSFP / QSFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10GBase-X,40G |
| UpLink Ports | 12 x QSFP+ (40G) |
| POE Support | No |
| Switching Capacity | 1.92 Tbps |
| Switch Forwarding Rate | 2.856 Bpps (1.428 Bpps per direction / ~1,428 Mpps) |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP+,RJ-45 (Console),USB |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | Approximately 32,000 MAC entries |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console/SSH), SNMP, NX-API, RESTCONF/NETCONF, HTTPS (Web UI), Telnet (legacy), USB |
| Security Features | 802.1X,ACLs,SSH,TACACS+,RADIUS,Port Security,Storm Control,Control Plane Policing,Secure Boot |
| Remote Management Protocol | SSH,HTTPS,SNMP,NX-API,RESTCONF,NETCONF,Telnet |
Power & Cooling |
|
|---|---|
| Fans | Front-to-back redundant, hot-swappable fans |
| Power | AC 100-240V, 50/60 Hz |
| Power Supply | Redundant, hot-swappable AC power supplies (field-replaceable) |
Physical Characteristics |
|
|---|---|
| Dimensions | 2U rack-mountable (approximately 3.5 x 17.5 x 24 in / 8.9 x 44.5 x 61.0 cm) |
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
Miscellaneous |
|
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ad,IEEE 802.3x |
Product Description |
|---|
N9K-C9396TX | Cisco Nexus 9396TX 48-Ports 10GBase-T RJ-45 Manageable Layer3 Rack-mountable 2U Switch with 1x Uplink Module Expansion Slot |
