Name: IE-4010-4S24P Cisco Industrial Ethernet 4010 Series 24 x Ports PoE+ 1000Base-T + 4 x SFP Ports Uplink Layer 3 Managed 1U Rack-mountable Fast Ethernet Network Switch
Brand: Cisco
SKU: IE-4010-4S24P
Price: 1999.00 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview

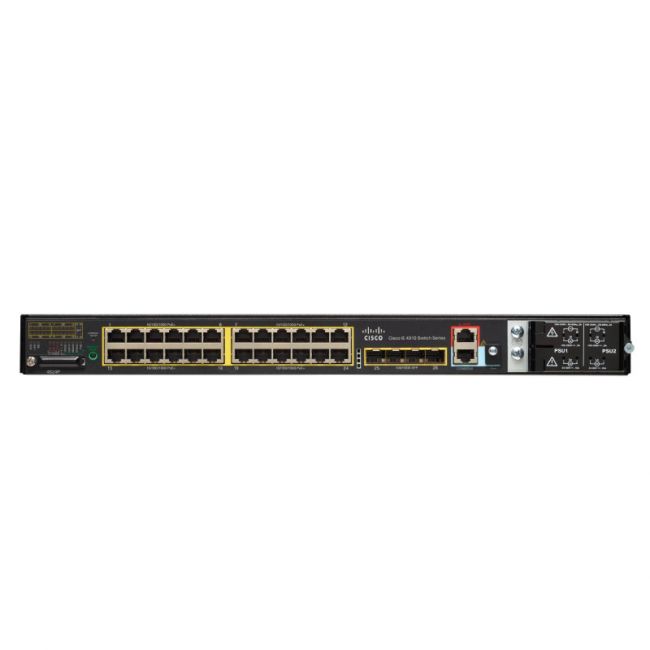

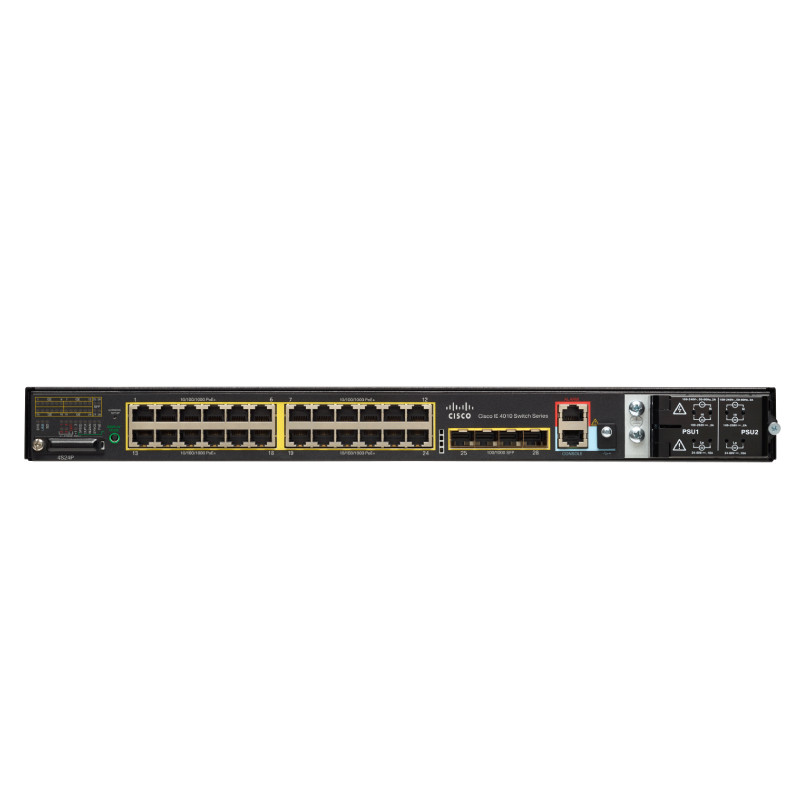

The IE‑4010‑4S24P Cisco Industrial Ethernet 4010 Series switch delivers 24 PoE/PoE+ copper and 4 SFP uplink ports in a rugged, fanless 1 RU rack enclosure, offering 56 Gbps non‑blocking switching and Layer 2/3 resilience for industrial networks.

General Information
Brand	Cisco
Part Number	IE-4010-4S24P
Condition	Refurbished

Technical Information
Switch Type	Industrial Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Number of Ports	28-Ports
Port Type	RJ-45, SFP
Port Speed	10/100/1000 Mbps
UpLink Ports	4× 1 GbE SFP
POE Support	PoE+
Switching Capacity	56 Gbps
Switch Forwarding Rate	41.67 Mpps
DRAM	1 GB
Flash Memory	128 MB onboard + 1 GB removable SD card
Max VLANs Supported	4096 VLANs
Stackable	No
Layer Support	Layer 2, Layer 3
Connector Type	RJ‑45, SFP, mini‑USB console, alarm dry‑contacts

Management and Configuration
Remote Protocols	Cisco Catalyst Center, web GUI, CLI, SNMP, Cisco Industrial Network Director
Management Interfaces	RJ‑45 Ethernet, mini‑USB console, optional SD card swap
Security Features	Cisco IOS security, ACLs, 802.1X, TrustSec, FIPS 140‑2 support

Power & Cooling
Power Supply	Cisco PWR‑RGD‑AC‑DC‑H (150 W) / PWR‑RGD‑LOW‑DC‑H (150 W) / PWR‑RGD‑AC‑DC‑250 (250 W)

Physical Characteristics
Dimensions	1.75″ × 17.5″ × 14.0″
Weight	12.00

Product Description
The IE‑4010‑4S24P is a rugged, fixed 1 RU industrial Layer 2/3 rack switch engineered for harsh environments, delivering high-density PoE and resilient networking. Key Features 28 total Gigabit ports: 24 copper PoE/PoE+ and 4 SFP uplinks Supports IEEE 802.3af/at, with up to 385 W PoE budget using redundant PSUs Fanless convection-cooled chassis and -40 °C to +75 °C rating Advanced resiliency via REP, MRP, PRP, HSR, EtherChannel, FlexLink 1 GB DRAM, 128 MB flash + 1 GB SD card, VLAN and Layer 3 IP features Deploy it in industrial sites—factories, substations, transport hubs—where you need reliable inline power, hardened design and security-grade network control. Ideal for powering IP cams, Wi‑Fi nodes and industrial gear with minimal maintenance overhead.

Use Cases
The Cisco IE-4010-4S24P switch is well-suited for industrial and manufacturing environments requiring reliable, high-performance networking with Power over Ethernet capabilities. It benefits network engineers and IT administrators managing harsh conditions such as factory floors, transportation systems, and utility networks where consistent connectivity and rugged hardware are essential. How It's Used: Connecting industrial automation equipment on factory floors where PoE+ is needed to power devices like IP cameras and sensors. Deploying in transportation control centers to provide resilient fiber uplinks and PoE support for communication and monitoring devices. Supporting utility substations that require robust, rack-mountable switches capable of enduring extreme environmental factors. Implementing edge computing nodes in smart city infrastructure to facilitate low-latency data aggregation and device management. Integrating with enterprise IT networks in remote or outdoor sites that demand fanless, ruggedized switches for continuous operation. This switch enhances operational efficiency by delivering scalable, high-throughput connectivity with PoE power delivery in environments where uptime and durability are critical. Its Layer 3 features and fanless design contribute to simplified network management and reduced maintenance in demanding industrial settings.
