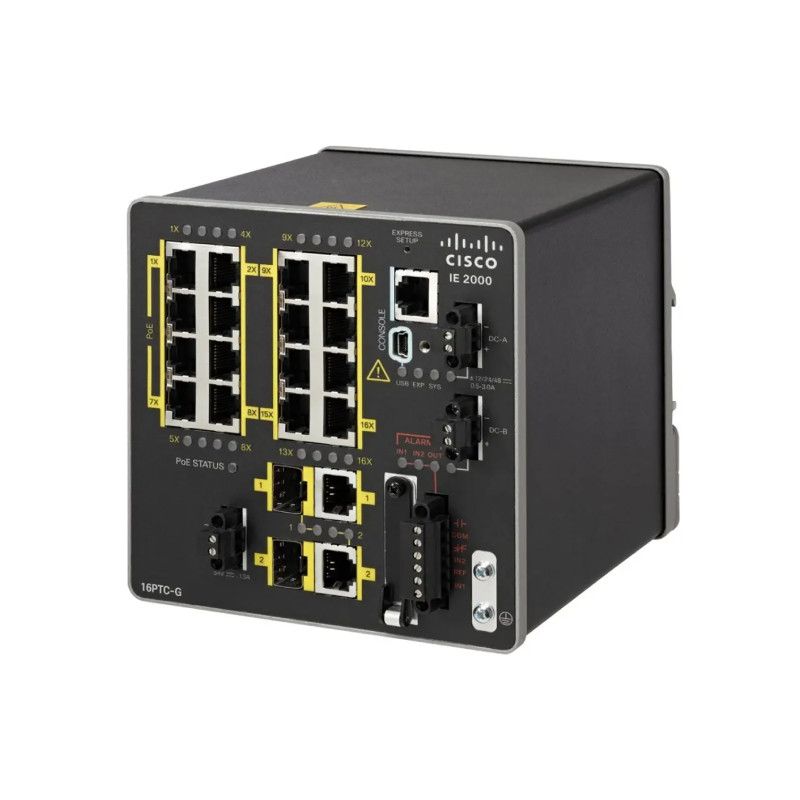

Name: IE-2000-16TC-G-E Cisco IE 2000 16-Port Fast Ethernet Managed DIN Rail Switch
Brand: Cisco
SKU: IE-2000-16TC-G-E
Price: 424.00 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Overview
The Cisco IE-2000-16TC-G-E is a 20-port managed switch designed for industrial applications, featuring 16 x 10/100Base-TX fast Ethernet ports and dual gigabit ports for versatile connectivity. With a switching capacity of 7.6 Gbps and a forwarding rate of 5.66 Mpps, it efficiently handles data traffic while supporting up to 4,096 VLAN IDs and an 8,000-entry MAC address table. Advanced QoS capabilities provide 4 egress queues per port for traffic prioritization, while robust security features, including 802.1X authentication and port security, protect the network from unauthorized access. Resiliency protocols such as REP, STP, RSTP, and MSTP ensure network reliability, and various management interfaces—including web device manager and CLI—simplify configuration and monitoring.

General Information
Brand	Cisco
Part Number	IE-2000-16TC-G-E
Condition	Refurbished

Technical Information
Switch Type	Managed Switch
Switch Ports	2 x 10/100/1000Base-T or 2 x 100/1000Base-X SFP Combo Ports
Number of Ports	20-Ports
Switching Capacity	7.6 Gbps
Switch Forwarding Rate	5.66 Mpps
Max VLANs Supported	4096

Performance
MAC Address Table Size	8000 Entries

Management and Configuration
Security	802.1X Authentication, Port Security, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection
Remote Management Protocol	Web Device Manager, Command-Line Interface (CLI), Simple Network Management Protocol (SNMP), Cisco Network Assistant

Power & Cooling
Power Supply	Dual Redundant DC Inputs (18-60V DC)

Physical Characteristics
Dimensions	5.4 x 6.1 x 4.9 inches (137 x 155 x 124 mm)
Weight	6.00

Product Description
The Cisco IE-2000-16TC-G-E is a versatile managed switch designed for industrial environments, providing reliable connectivity and advanced network management capabilities. With a total of 20 ports, including 16 x 10/100Base-TX fast Ethernet ports and 2 x 10/100/1000Base-T or 2 x 100/1000Base-X SFP combo ports, this switch is optimized for a wide range of applications. Offering a switching capacity of 7.6 Gbps and a forwarding rate of 5.66 million packets per second (Mpps), the IE-2000-16TC-G-E ensures efficient data handling and low latency for demanding industrial applications. It supports up to 4,096 VLAN IDs, enhancing network segmentation and management capabilities, while the MAC address table can accommodate 8,000 entries. The switch features advanced Quality of Service (QoS) capabilities, providing 4 egress queues per port to prioritize critical traffic. Security is paramount, with features such as 802.1X authentication, port security, DHCP snooping, IP source guard, and dynamic ARP inspection to protect the network against unauthorized access and attacks. Resiliency protocols, including Cisco Resilient Ethernet Protocol (REP), Spanning Tree Protocol (STP), Rapid STP (RSTP), and Multiple STP (MSTP), ensure network reliability and redundancy. Management is made simple with a variety of interfaces, including a web device manager, command-line interface (CLI), Simple Network Management Protocol (SNMP), and Cisco Network Assistant. Key Features: Total Ports: 20 ports including 16 x 10/100Base-TX and dual gigabit ports. Switching Capacity: 7.6 Gbps for efficient data handling. Forwarding Rate: 5.66 Mpps for quick packet processing. VLAN Support: Up to 4,096 VLAN IDs for network segmentation. MAC Address Table Size: 8,000 entries for managing network devices. Quality of Service (QoS): 4 egress queues per port to prioritize traffic. Resiliency Protocols: Supports REP, STP, RSTP, and MSTP for network reliability. Security Features: Includes 802.1X authentication, port security, and more. Management Interfaces: Web Device Manager, CLI, SNMP, and Cisco Network Assistant. The Cisco IE-2000-16TC-G-E Industrial Ethernet switch is an excellent choice for organizations seeking a robust, secure, and efficient networking solution in industrial environments.

Use Cases
The Cisco IE-2000-16TC-G-E switch is primarily utilized in industrial and manufacturing settings where rugged and reliable network infrastructure is critical. It suits environments requiring secure, real-time data transmission with flexible port configurations, particularly benefiting network engineers managing complex edge deployments. How It's Used: Deploying resilient network backbones in factory automation systems to ensure uninterrupted data flow between control devices and monitoring stations. Integrating with intelligent transportation systems for managing communication between traffic sensors and centralized control units. Supporting remote monitoring and control operations in utilities and energy sectors, where stable Ethernet connectivity is essential. Enhancing network segmentation and security in building management systems within commercial properties to isolate critical subsystems. Facilitating data aggregation and edge computing in oil and gas field sites with harsh environmental conditions. This switch enhances operational efficiency by delivering dependable connectivity with advanced security and network resiliency features, enabling scalable and manageable infrastructure in diverse industrial deployments. Its support for multiple VLANs and robust QoS ensures optimized traffic handling tailored to demanding workloads.
