| Product Overview |
|---|

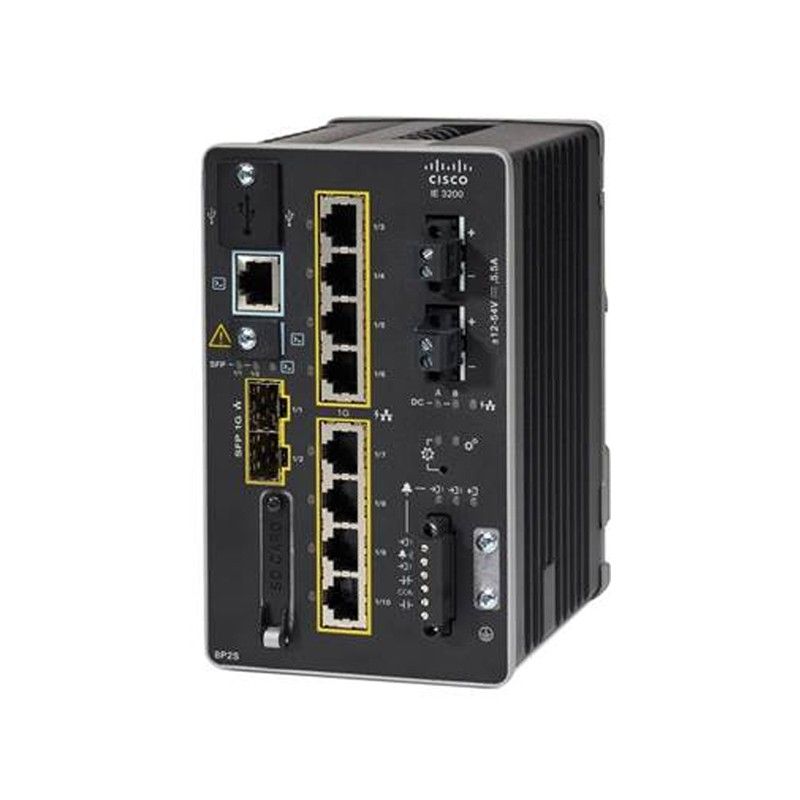

The Cisco Catalyst IE3200-8P2S-E is a Layer 3 managed switch designed to deliver robust Gigabit Ethernet connectivity with built-in PoE+ support and flexible fiber options. It fits industrial environments that require reliable, durable networking hardware capable of powering devices and managing complex network traffic efficiently. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | IE-3200-8P2S-E |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 8 |
| Number of Ports | 8-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, RJ-45, SFP |
| Port Speed | 10/100/1000Base-T,1000Base-X |
| UpLink Ports | 2 x SFP (1000Base-X) |
| POE Support | PoE+ |
| Switching Capacity | 20 Gbps |
| Switch Forwarding Rate | 39.06 Mpps |
| DRAM | 256 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4096 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, HSRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI,Web UI,HTTP/HTTPS,SNMPv1/v2c/v3,SSH,Telnet,Console (RJ-45),USB Console |
| Remote Management Protocol | SNMP,SSH,HTTPS,HTTP,Telnet |
| Routing Protocol | Static,RIP,OSPF |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Power | 48 V DC input (industrial DC), 802.3at PoE+ with up to ~240W PoE budget |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | -40C to 75C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3af,IEEE 802.3at |
| Product Description |
|---|
The Cisco Catalyst IE3200-8P2S-E is a rugged managed switch engineered to provide reliable Gigabit Ethernet connectivity in demanding industrial settings. It's built for environments where durability and consistent network performance matter, such as manufacturing floors, transportation hubs, and outdoor industrial sites. Often found in industrial automation and IoT deployments, this switch supports both power delivery and data transfer over Ethernet, enabling streamlined setups with fewer cables. Network administrators, engineers, and technicians benefit from its Layer 3 features and management capabilities to efficiently control traffic and maintain secure communication. Key Features
This switch is typically deployed in industrial networks where reliable power and data transport are critical, such as in automated manufacturing lines or remote monitoring stations. Its rugged build helps maintain stable operation amid harsh conditions, ensuring fewer disruptions in vital network services. |
