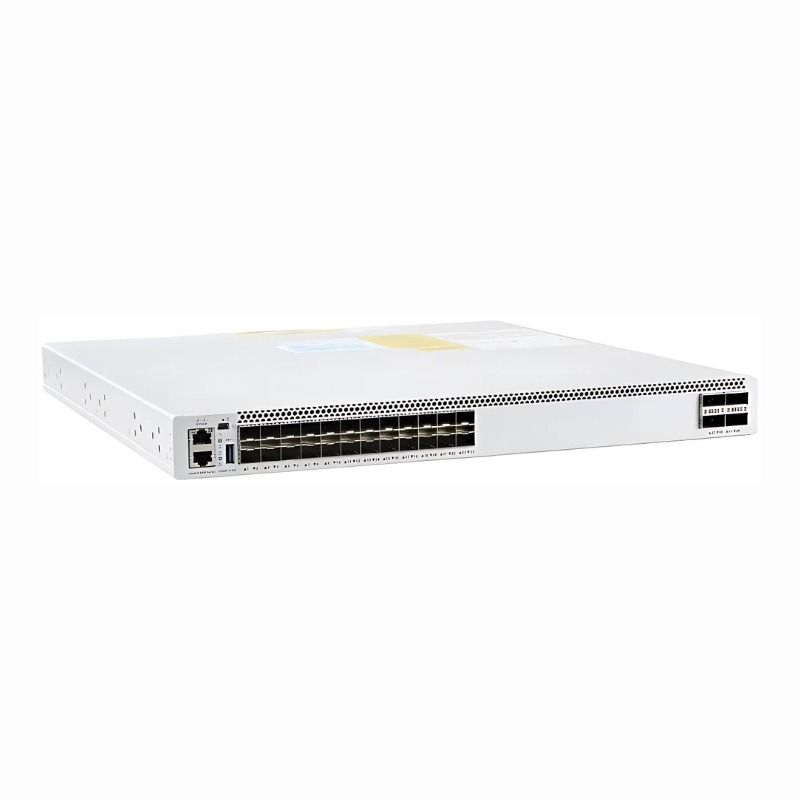

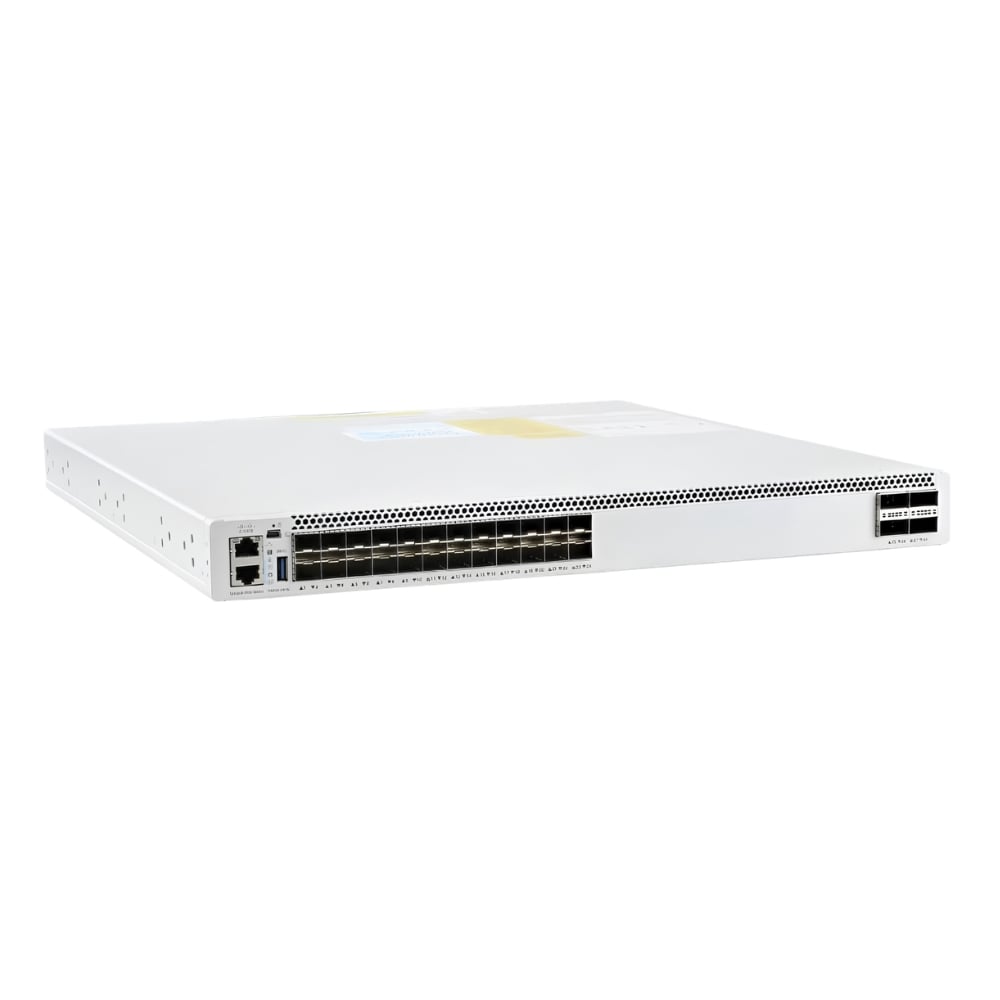

Name: C9500-24Y4C-E Cisco Catalyst 9500 Series C9500-24Y4C 24 x SFP28 Ports 25GBase-X + 4 x QSFP28 Ports Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch
Brand: Cisco
SKU: C9500-24Y4C-E
Price: 7600.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Cisco Catalyst 9500-24Y4C-E is a high-performance Layer 3 switch designed for enterprise network cores and aggregation points. It offers a mix of 25G and 100G ports to handle demanding traffic loads, making it suitable for data centers and campus networks that need reliable and scalable connectivity.

General Information
Brand	Cisco
Part Number	C9500-24Y4C-E
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	25G SFP28, 100G QSFP28, USB Console, Serial Console (RJ-45)
Port Speed	25G
UpLink Ports	4
POE Support	No
Switching Capacity	2 Tbps
Switch Forwarding Rate	3.9 Bpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	SFP28,QSFP28,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, EIGRP, BGP, IS-IS, VRRP, HSRP, PIM-SM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps
Remote Protocols	Yes
Management Interfaces	Console (RJ-45),USB Console,SSH,Telnet,Web UI,SNMP,NETCONF,RESTCONF
Security Features	802.1X,MACsec,ACL,SSH,Role-Based Access Control (RBAC),Control Plane Policing (CoPP)
Remote Management Protocol	SNMP,SSH,Telnet,NETCONF,RESTCONF

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 45°C (32°F to 113°F)

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1w,IEEE 802.1s,IEEE 802.3ad

Product Description
The Cisco Catalyst 9500 Series C9500-24Y4C-E is built for enterprise network cores and aggregation layers, offering high-performance connectivity with a mix of 25G and 100G ports. It’s commonly found in data centers and large campus networks where scalable, efficient traffic management is essential. Network engineers and IT administrators rely on this switch for its Layer 3 capabilities and robust hardware to support demanding applications and heavy workloads. Key Features Provides 24 ports of 25G SFP28 for high-density device connections Includes 4 QSFP28 ports allowing 100G uplink flexibility Supports advanced Layer 3 routing protocols for efficient traffic handling Delivers a compact 1U form factor for space-saving rack deployment Equipped with Cisco’s IOS XE software for enhanced network management This switch is typically deployed in core and aggregation layers of enterprise networks, helping manage large volumes of data with minimal latency. Its combination of port speeds and routing features makes it a dependable choice for growing infrastructures.

Use Cases
The Cisco Catalyst 9500-24Y4C-E is optimized for high-density environments where robust Layer 3 routing and high-speed connectivity are essential. This switch is ideal for enterprise network cores and aggregation layers requiring reliable and scalable infrastructure to manage heavy data traffic and diverse workloads. How It's Used: Core switch deployments in large enterprise campuses supporting high-volume user and device connectivity. Aggregation layer in data centers handling virtualization and storage cluster traffic with 25G and 100G interfaces. Service provider edge networks requiring advanced routing and multi-gigabit uplinks for demanding workloads. High-performance environments leveraging rack-mounted switches to consolidate network infrastructure and optimize space. Enterprise IT environments deploying scalable, managed Layer 3 switches to support cloud applications and edge computing. By integrating 25G and 100G ports with advanced Layer 3 features, this switch helps streamline network operations while supporting growth in bandwidth requirements. Its rack-mountable form factor and management capabilities enable efficient deployment and scaling within complex network topologies.
