| Product Overview |
|---|

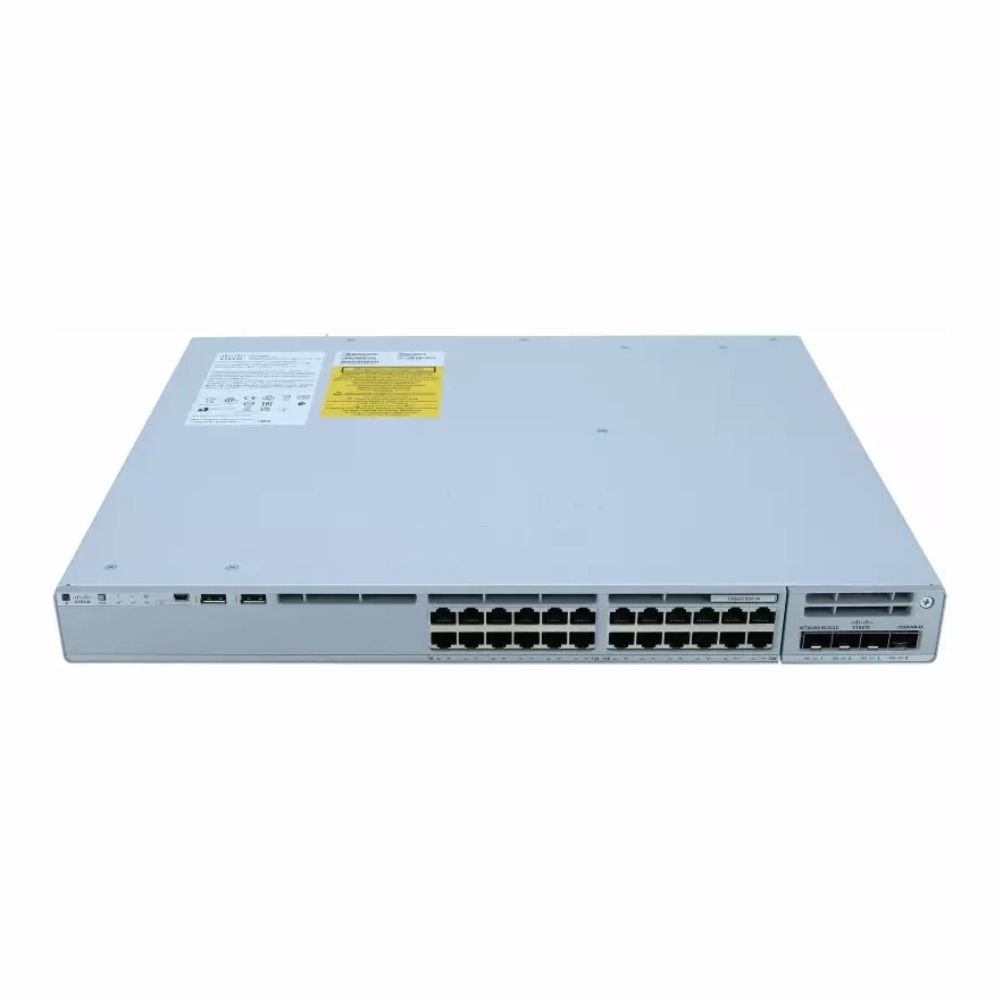

The Cisco Catalyst 9200-24T-E switch offers 24 Gigabit Ethernet ports designed for enterprise-grade networking. It fits into network infrastructures that need effective Layer 3 switching with comprehensive security and management capabilities. This device serves as a solid backbone for connecting multiple devices and routing traffic efficiently within business environments. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | C9200-24T-E |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 2 (modular uplink slots, supports SFP/SFP+ modules) |
| POE Support | No |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 95.24 Mpps |
| DRAM | 4 GB |
| Flash Memory | 4 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| NIM Slot | 2 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (Console/SSH), Web UI, SNMP, RESTCONF, NETCONF |
| Remote Management Protocol | SSH,Telnet,HTTP/HTTPS,SNMP,RESTCONF,NETCONF |
| Routing Protocol | Static,RIP,OSPF,EIGRP,BGP,VRRP,HSRP |
| Power & Cooling | |
|---|---|
| Fans | Variable-speed front-to-back fans (field-replaceable) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 14.6 in (44 x 445 x 371 mm) |
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, UL |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X,IEEE 802.3ad,IEEE 802.3ae |
| Product Description |
|---|
The Cisco Catalyst 9200-24T-E is a versatile network switch built for businesses requiring reliable and scalable connectivity. Often found in enterprise networks, it manages traffic efficiently with Layer 3 routing and supports a full gigabit speed across its 24 ports. This switch is commonly used in wiring closets or network aggregation points where fast, secure, and manageable connections are essential. It fits well for network administrators and IT teams who need a robust foundation for expanding network infrastructure with flexibility and security. The switch is designed to handle diverse workloads, accommodating both small and medium-sized network environments with ease. Key Features
This switch is typically deployed in office buildings, data centers, or campus environments where stable and secure network performance is critical. It plays a key role in ensuring smooth communication between devices and reduces network downtime, making it a dependable choice for growing networks. |
| Use Cases |
|---|
The Cisco Catalyst 9200-24T-E switch is primarily deployed in enterprise network environments where robust Layer 3 routing and high port density are required. It is well-suited for IT teams managing medium to large-scale LANs that demand secure, efficient traffic segmentation and connectivity for diverse business-critical applications. How It's Used:
This switch contributes to operational efficiency by consolidating Layer 2 and Layer 3 capabilities within a scalable platform, allowing IT administrators to optimize traffic routing and security policies. Its Gigabit Ethernet interfaces support high-throughput workloads, ensuring consistent performance as network demands grow. |
