A9K-4X100GE-TR

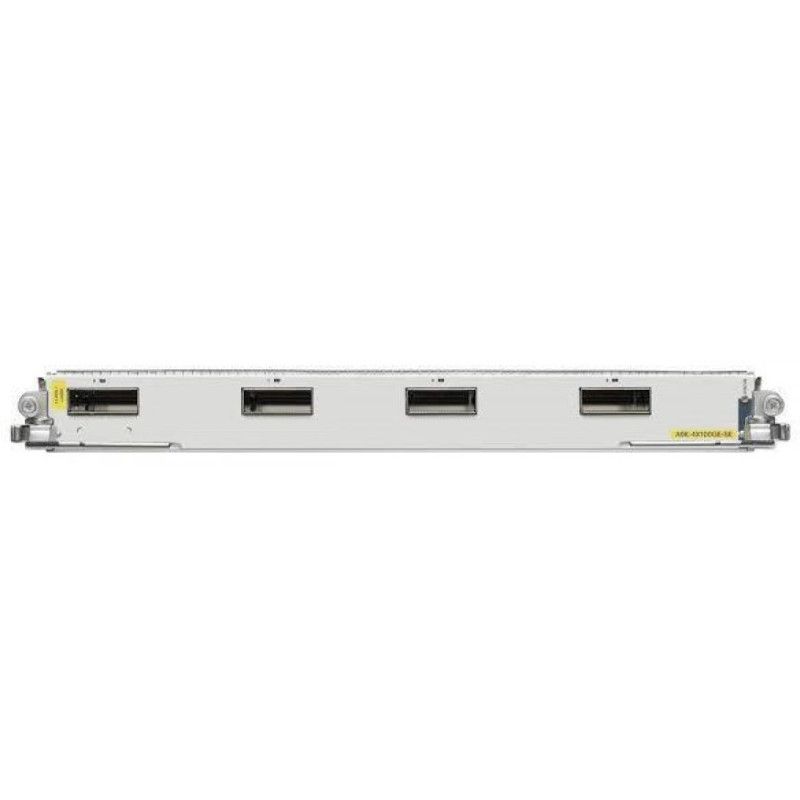

The Cisco ASR 9000 Series A9K-4X100GE-TR Line Card Module is engineered for high-performance networking, providing four 100 Gigabit Ethernet ports optimized for packet transport. This line card is designed to integrate seamlessly into the Cisco ASR 9000 Series chassis, including compatibility with ASR 9006, ASR 9010, ASR 9904, ASR 9906, ASR 9910, ASR 9912, and ASR 9922 models.

Featuring Cisco CPAK pluggable interfaces, this line card supports various optics, including CPAK-100G-LR4, CPAK-100G-SR10, and CPAK-10X10G-LR, ensuring versatility for different network deployments. It delivers a line-rate throughput of 100 Gbps per port, making it ideal for bandwidth-intensive applications and high-density environments.

Supporting both Layer 2 and Layer 3 services, the A9K-4X100GE-TR provides comprehensive networking capabilities, including IP, MPLS, Ethernet, Layer 2 VPN (L2VPN), and Layer 3 VPN (L3VPN). Operations and maintenance are simplified with support for NetFlow, IEEE 802.1ag, IEEE 802.3ah, ITU Y.1731, IP SLA, VCCV, ping, and traceroute.

Built to ensure reliability and availability, this line card supports Online Insertion and Removal (OIR), allowing for maintenance without impacting system performance. It operates with Cisco IOS® XR Software and is compliant with various standards, including EN300 386, EN55022, and UL/CSA/IEC/EN 60950-1.

Key Features:

• Port Density: 4 x 100 Gigabit Ethernet ports for high-density connectivity.
• Interface Type: Cisco CPAK pluggable interfaces for flexible optics deployment.
• Supported Optics: Compatible with CPAK-100G-LR4, CPAK-100G-SR10, and CPAK-10X10G-LR.
• Chassis Compatibility: Works with ASR 9006, ASR 9010, ASR 9904, ASR 9906, ASR 9910, ASR 9912, and ASR 9922.
• Performance: 100 Gbps line-rate throughput per port.
• Layer Support: Offers Layer 2 and Layer 3 services, including IP and MPLS.
• Operations and Maintenance: Supports NetFlow, IEEE 802.1ag, ITU Y.1731, and more.
• Operating System: Cisco IOS® XR Software for advanced routing capabilities.
• Reliability: Supports Online Insertion and Removal (OIR) for maintenance without disruption.
• Compliance Standards: Complies with EN300 386, EN55022, FCC Class A, and others.

The Cisco ASR 9000 Series A9K-4X100GE-TR Line Card Module is an essential component for organizations looking to enhance their network performance with high-density, reliable connectivity solutions.
