| Product Overview |
|---|

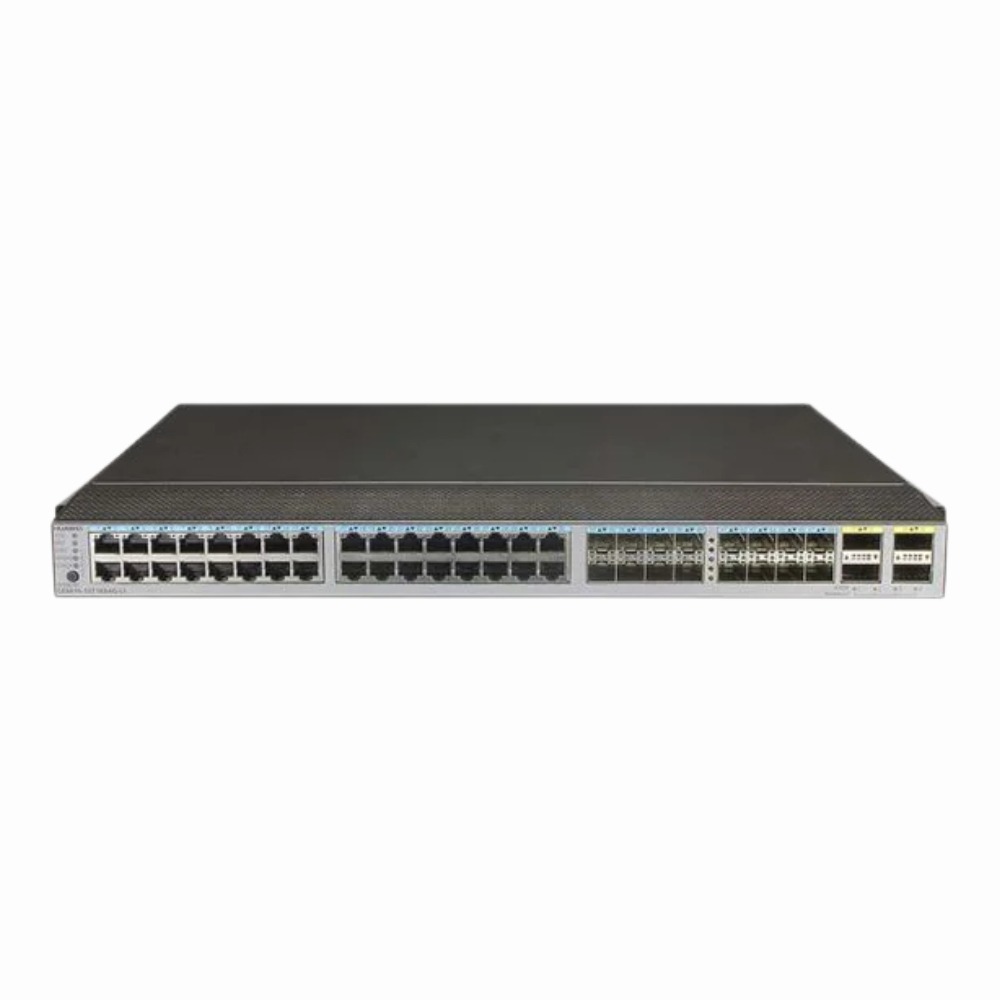

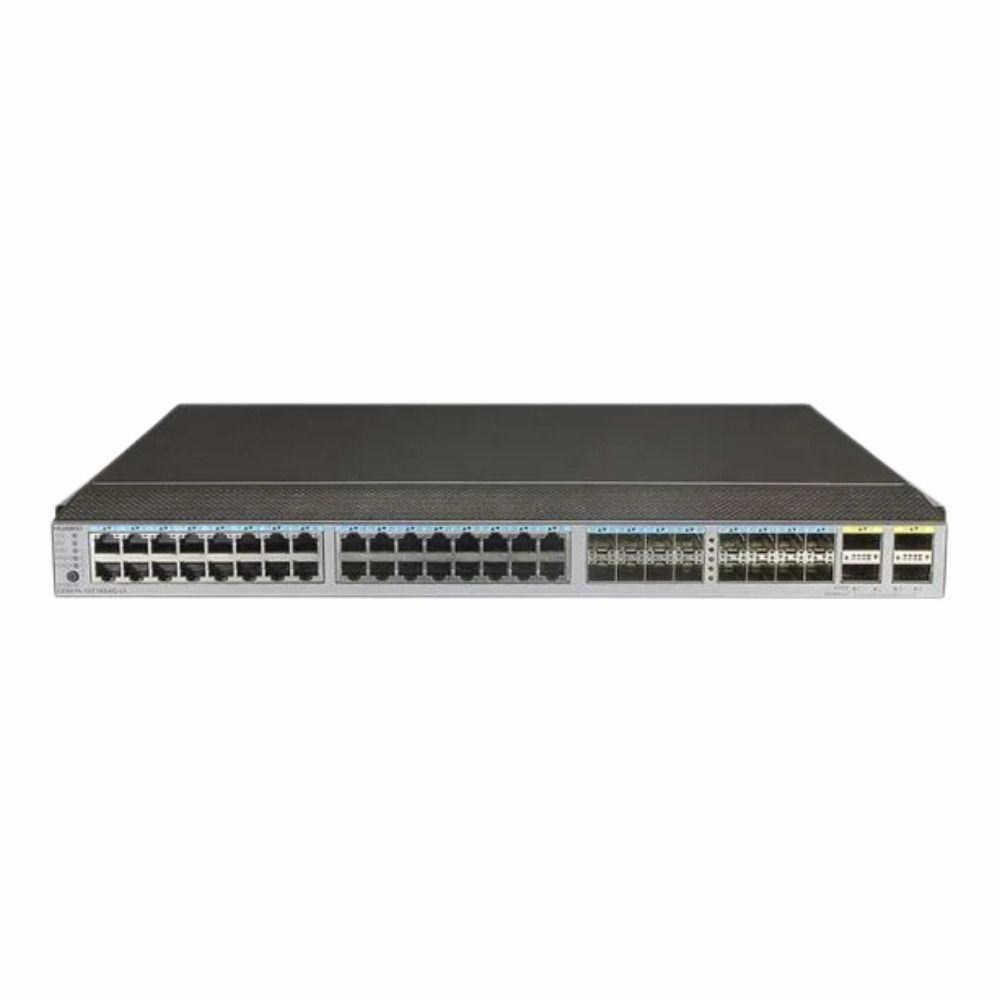

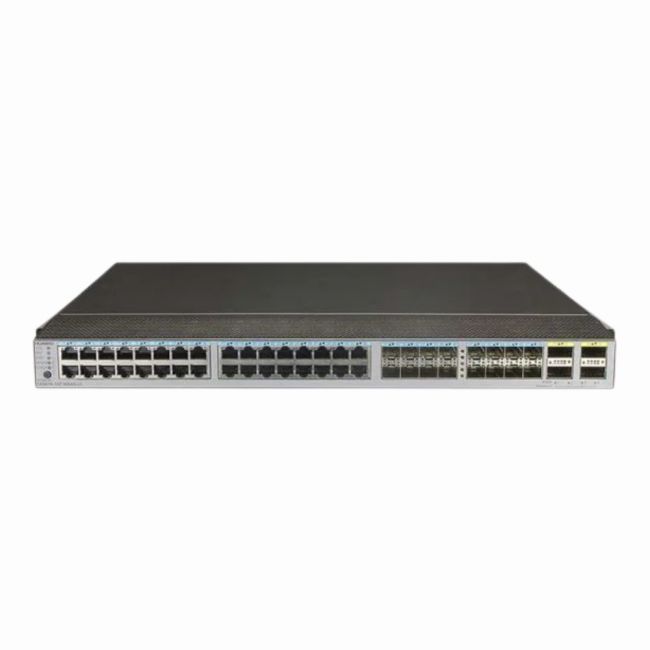

The Huawei CE6810-32T16S4Q-LI switch combines multiple Gigabit Ethernet and 10Gbps fiber ports to serve networks where both standard and high-speed connections are necessary. It fits well in enterprise and campus settings, managing traffic efficiently at the access or aggregation layer. |
| General Information | |
|---|---|
| Brand | Huawei |
| Part Number | CE6810-32T16S4Q-LI |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Managed Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 32 x 10/100/1000Base-T,16 x 10G SFP+,4 x 40G QSFP+ |
| Number of Ports | 32-Ports |
| Port Type | RJ-45, SFP+, QSFP / QSFP+ |
| Port Speed | 10GE for all RJ‑45 & SFP+, 40GE for QSFP+ |
| UpLink Ports | 4×40GE QSFP+ (can split to 4×10GE) |
| POE Support | No |
| Switching Capacity | 1.28 Tbps |
| Switch Forwarding Rate | 960 Mpps |
| DRAM | 2 GB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | Up to 4,094 VLAN |
| Stackable | Yes |
| Layer Support | Layer 2 |
| Connector Type | RJ-45, SFP+, QSFP+, USB, RJ-45 console & ETH management |
| Performance | |
|---|---|
| Latency | < 3 µs (typical, 64-byte frame) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32K |
| Management and Configuration | |
|---|---|
| Routing Protocols | VRRP |
| Remote Protocols | SSH, Telnet, Web, SNMPv1/2c/3, RMON, ZTP |
| Management Interfaces | CLI (VRP8), Web GUI, USB, Console, ETH management port |
| Security Features | 802.1X, ACLs, Storm/DoS protection, AAA, RADIUS, TACACS+, port security, ARP/ICMP defenses |
| Management Type | CLI,Web GUI (HTTP/HTTPS),SNMP (v1/v2c/v3),SSH,Telnet |
| Remote Management Protocol | SNMPv1/v2c/v3,SSH,Telnet,HTTP/HTTPS,Syslog,RMON,sFlow |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable redundant fans (2) |
| Power | AC 100-240V, 50/60Hz; typical ~120W, max ~200W |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.72×17.4×16.5 inches |
| Weight | 19.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, CCC |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1W,IEEE 802.1s,IEEE 802.1X,IEEE 802.3ad |
| Product Description |
|---|
The Huawei 6810 Series Switch CE6810-32T16S4Q-LI offers reliable network connectivity with a combination of copper and fiber interfaces. It's often found in enterprise campus networks and data center access layers where a mix of high-speed and standard ports is needed. Built for IT professionals managing medium to large networks, this switch provides robust Layer 2 management features to streamline network traffic and improve reliability. Network administrators appreciate its flexibility combining Gigabit Ethernet and 10Gbps uplink capabilities. Key Features
Typically deployed in enterprise wiring closets and smaller data centers, this switch handles mixed traffic loads with ease. Its combination of port types and Layer 2 capabilities help maintain smooth operation without complexity. |
