| Product Overview |
|---|

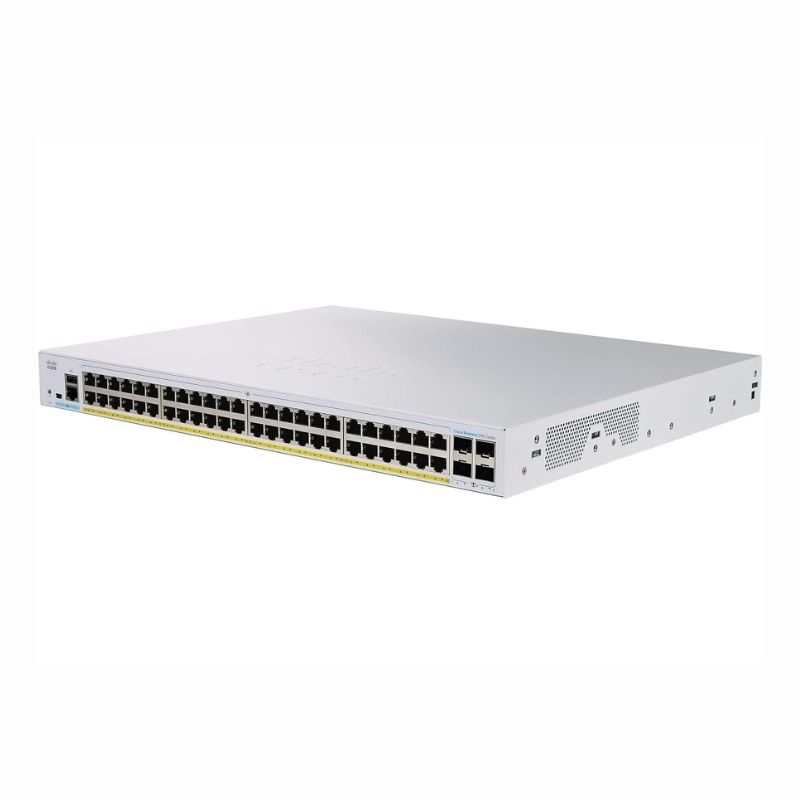

The Cisco Business 350 Series CBS350-48FP-4X combines robust PoE+ support with advanced Layer 3 management, making it a reliable choice for business networks requiring both power delivery and efficient traffic routing. It fits well in network racks and serves as a backbone device for medium-sized enterprise environments. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | CBS350-48FP-4X |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x SFP+ (10G) |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 344 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 MAC addresses |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, VRRP |
| Remote Protocols | Yes |
| Management Interfaces | Web-based GUI (Cisco Business Dashboard), Command Line Interface (CLI), SNMP v1/v2c/v3, SSH, Telnet, RMON, Syslog |
| Security | Yes |
| Remote Management Protocol | HTTP/HTTPS, SSH, Telnet, SNMP v1/v2c/v3 |
| Routing Protocol | Static,RIP,OSPF,VRRP |
| Power & Cooling | |
|---|---|
| Power | AC 100-240 V, 50-60 Hz; PoE budget: 740 W |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The Cisco Business 350 Series CBS350-48FP-4X is a versatile network switch designed to handle demanding business environments. Often found in medium to large office networks, it combines high port density with Power over Ethernet capabilities, enabling it to power devices like IP phones and wireless access points directly through the network cable. Built for IT professionals managing complex networks, this switch offers Layer 3 features such as static routing and DHCP snooping, making it suitable for more advanced traffic management and segmentation. It is commonly used in network closets or data centers where reliable and scalable connectivity is essential. Key Features
This switch typically appears in office networks where diverse devices need both power and data connectivity over a single cable. Its Layer 3 capabilities help reduce network complexity by handling routing internally. Overall, it plays a key role in maintaining a stable and scalable business network infrastructure. |
