Product Overview |
|---|

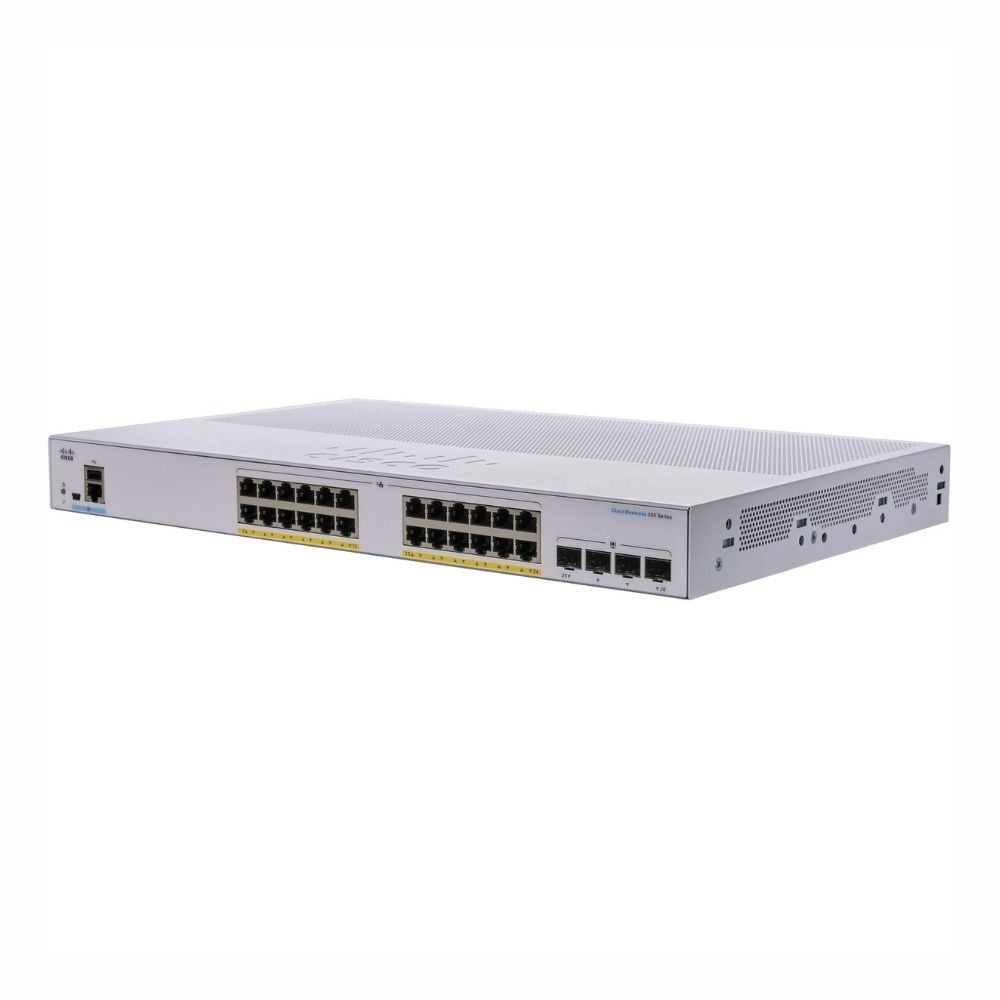

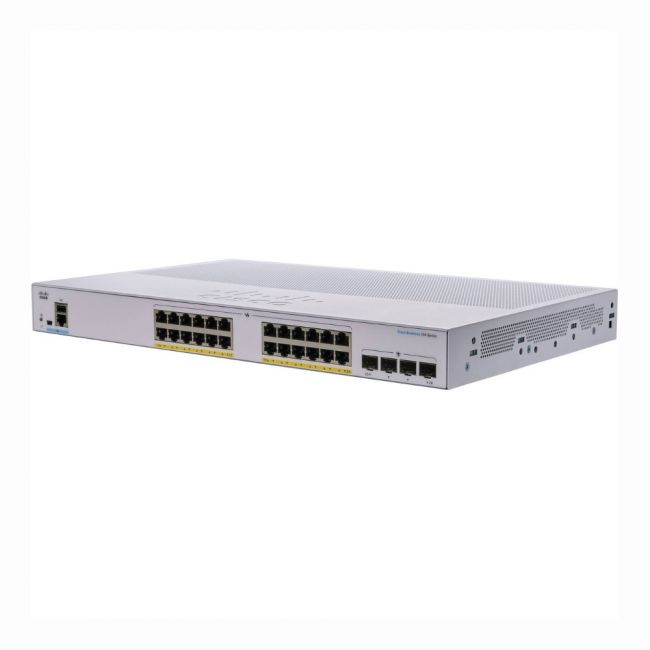

The Cisco Business 350 Series CBS350-24P-4G switch offers a versatile solution for managing wired networks with integrated power delivery. It fits into small to medium business networks by combining multiple gigabit ports and fiber connectivity options with Layer 3 routing features, making it a solid choice for organizations needing a dependable and flexible managed switch. |
General Information |
|
|---|---|
| Brand | Cisco |
| Part Number | CBS350-24P-4G |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 56 Gbps |
| Switch Forwarding Rate | 41.67 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTPS), CLI (SSH, Console), SNMP v1/v2/v3, RMON, HTTP, Telnet, USB |
| Security | Yes |
| Remote Management Protocol | SNMPv1/v2/v3,SSH,HTTPS,HTTP,Telnet,RMON |
| Routing Protocol | Static,RIP |
Power & Cooling |
|
|---|---|
| Power | Max PoE Budget: 195W; AC input: 100-240V, 50-60Hz |
Physical Characteristics |
|
|---|---|
| Dimensions | 1.72 x 17.32 x 10.24 inches |
| Weight | 5.00 |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
Miscellaneous |
|
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X,IEEE 802.3x |
Product Description |
|---|
The Cisco Business 350 Series CBS350-24P-4G is a managed network switch designed to handle multiple devices with power over Ethernet capabilities. It’s often found in small to medium business environments where reliable wired connections and power to devices like IP phones and cameras are essential. Built for network administrators needing control over traffic and security, this switch supports Layer 3 features that allow routing between different network segments. Key Features
This switch is typically deployed in office networks, retail stores, and other settings that require both data and power delivery over Ethernet. It simplifies infrastructure by combining switching and power in one unit, reducing the need for additional equipment. With its mix of ports and management tools, the CBS350-24P-4G helps maintain network performance and supports growth as more devices connect. |
Use Cases |
|---|
The Cisco Business 350 Series CBS350-24P-4G switch is ideal for small to medium-sized enterprises requiring reliable, high-performance networking with integrated power for connected devices. It is particularly suited for environments where both wired connectivity and power over Ethernet are essential, such as campus networks, branch offices, and professional workspaces with diverse device demands. How It's Used:
This switch enhances operational efficiency by combining flexible port configurations with Layer 3 routing, allowing IT teams to scale network segments and maintain performance under diverse workloads. Its PoE capabilities simplify device deployment, reducing cabling complexity and power requirements in dynamic office or industrial settings. |
