| Product Overview |
|---|

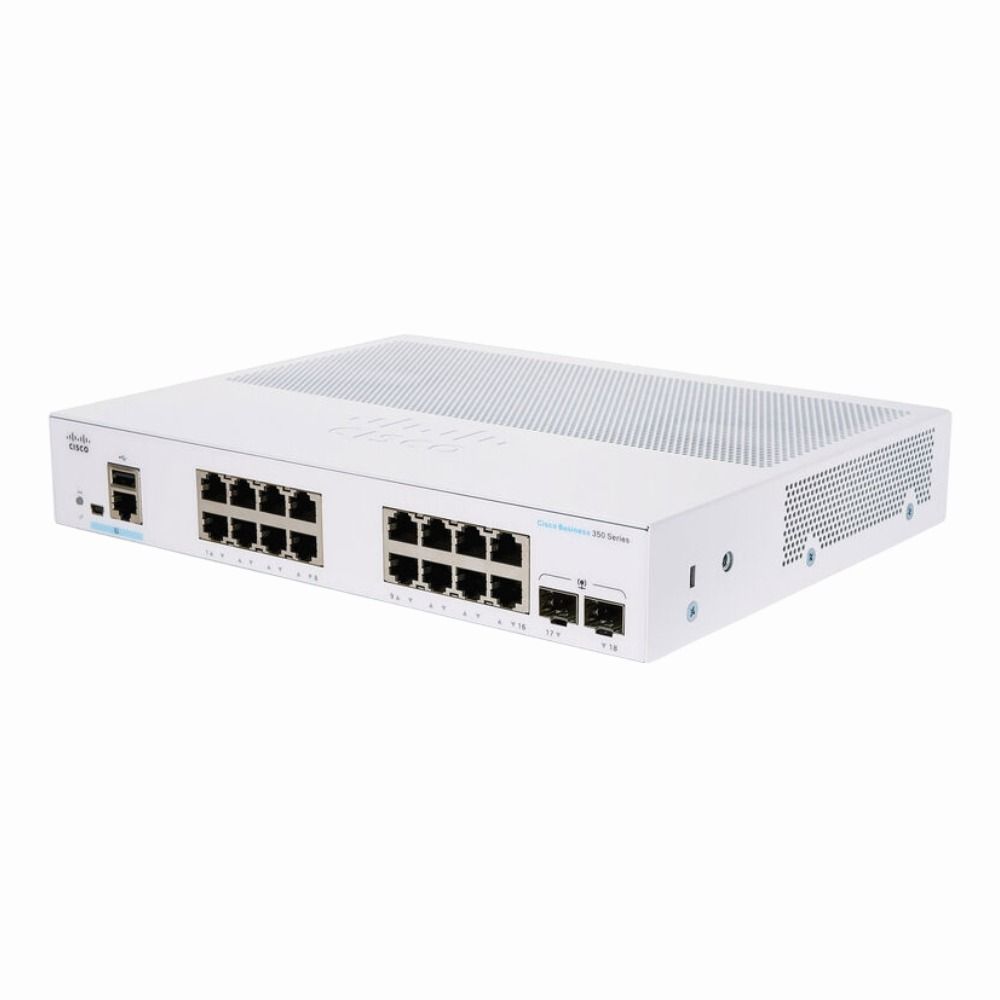

The Cisco CBS350-16T-2G is a Layer 3 managed switch that combines 16 gigabit Ethernet ports with 2 SFP slots, making it a versatile choice for small business networks. It fits well in rack-mounted setups and supports routing and management functions that help organize traffic and maintain network stability. This switch is commonly integrated into office networks where dependable performance and control are important. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | CBS350-16T-2G |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 16 |
| Number of Ports | 16-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 2 (SFP) |
| POE Support | No |
| Switching Capacity | 36 Gbps |
| Switch Forwarding Rate | 70.31 Mpps |
| DRAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8K |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, VRRP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, CLI (SSH/Telnet), SNMPv1/v2/v3, RMON, HTTP/HTTPS |
| Remote Management Protocol | HTTP,HTTPS,SSH,Telnet,SNMP |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 10.24 in (H x W x D) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1X |
| Product Description |
|---|
The Cisco Business 350 Series CBS350-16T-2G is a Layer 3 managed switch designed for small to midsize networks. It provides fast and reliable wired connectivity with 16 Gigabit ports, along with 2 SFP slots to enable fiber connections or network stacking. This switch is commonly found in office environments, retail locations, and small data centers where dependable network performance and management flexibility are essential. Built for IT professionals and network administrators, it helps manage traffic efficiently and supports routing functions that keep business networks running smoothly. The rack-mountable form factor makes it easy to integrate into existing server rooms or network closets. Key Features
This switch is typically deployed in wired networks where reliability and scalability matter. Its routing capabilities allow businesses to segment and secure their networks while maintaining fast data transfer rates. Many organizations rely on this switch for connecting workstations, servers, and other network devices without compromising performance. Overall, the Cisco CBS350-16T-2G serves as a solid backbone in environments that demand steady gigabit connections and manageable network features. |
