| Product Overview |
|---|

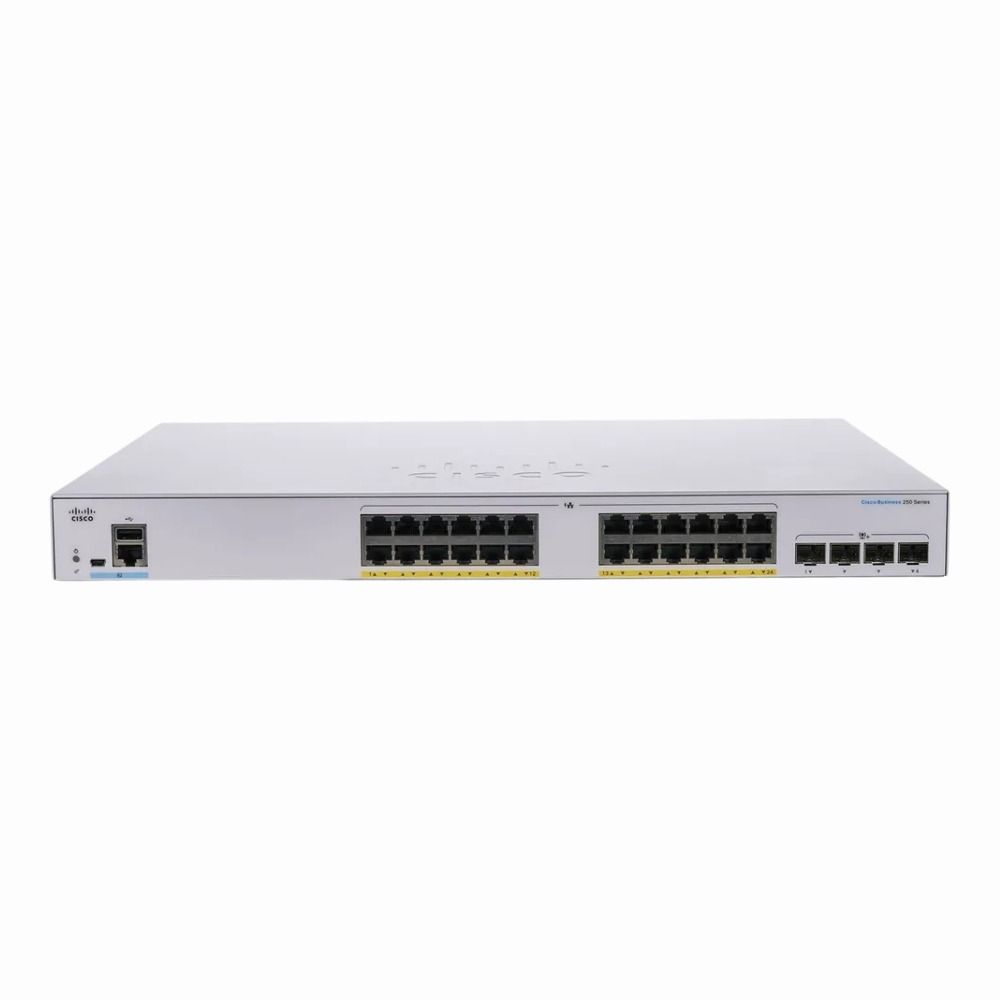

The Cisco Business 250 Series CBS250-24FP-4G is a gigabit Ethernet switch designed to provide both data connectivity and power for network devices. It fits well in small to mid-size business networks where managed features and PoE+ support are important, offering a balance between straightforward management and essential layer 3 capabilities. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | CBS250-24FP-4G |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x SFP |
| POE Support | PoE+ |
| Switching Capacity | 56 Gbps |
| Switch Forwarding Rate | 109.375 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web UI (HTTP/HTTPS), CLI (Console/SSH), SNMPv1/v2c/v3, RMON, Syslog |
| Security | 802.1X, RADIUS, TACACS+ |
| Remote Management Protocol | SNMP, SSH, HTTPS, HTTP, RADIUS |
| Routing Protocol | Static, RIP |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.75 x 17.32 x 8.46 inches |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The Cisco Business 250 Series switch offers a reliable and flexible networking solution for small to medium-sized businesses. It is often found in office networks and retail environments where power over Ethernet and robust management are required. Built for network administrators and IT professionals, this switch combines easy configuration with essential layer 3 capabilities, making it ideal for managing multiple devices and traffic efficiently. Key Features
The switch is typically deployed in office networks, branch locations, and other environments needing reliable data and power delivery. It helps streamline network infrastructure by combining connectivity and power in one device, making setup and maintenance more straightforward. |
