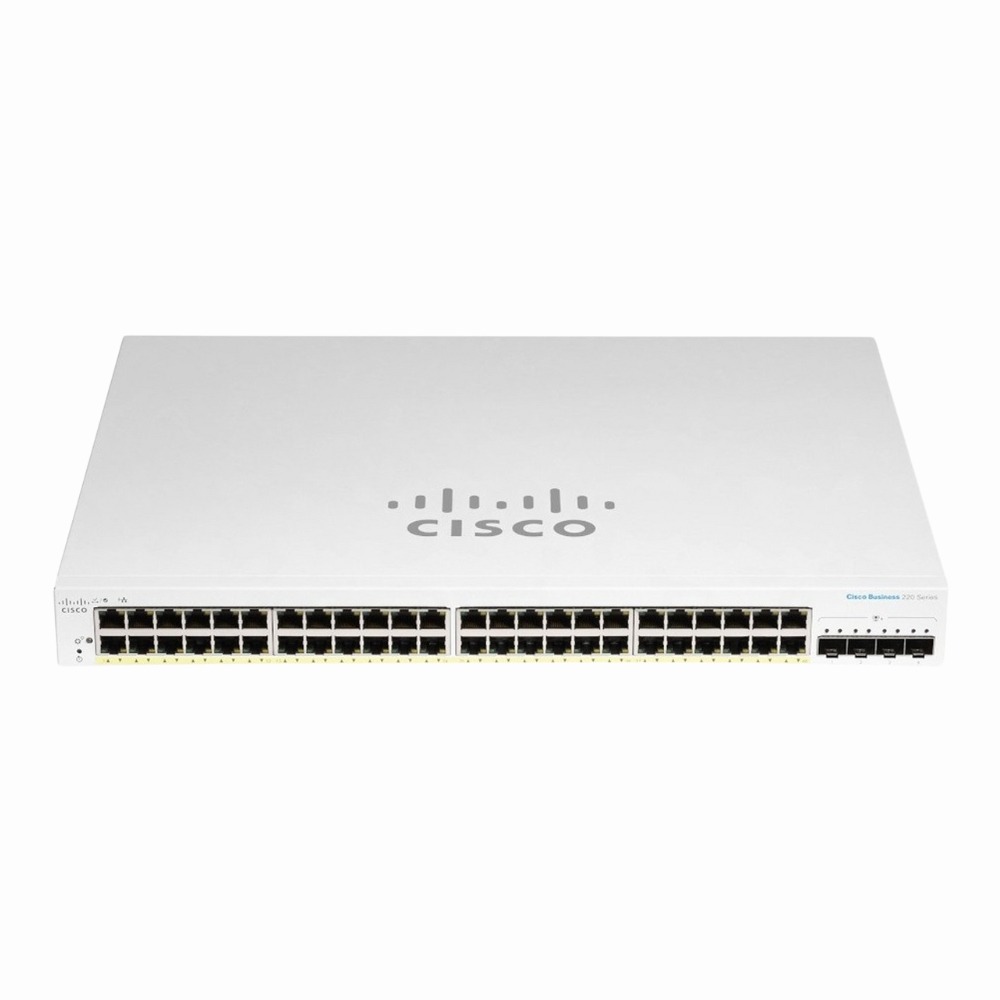

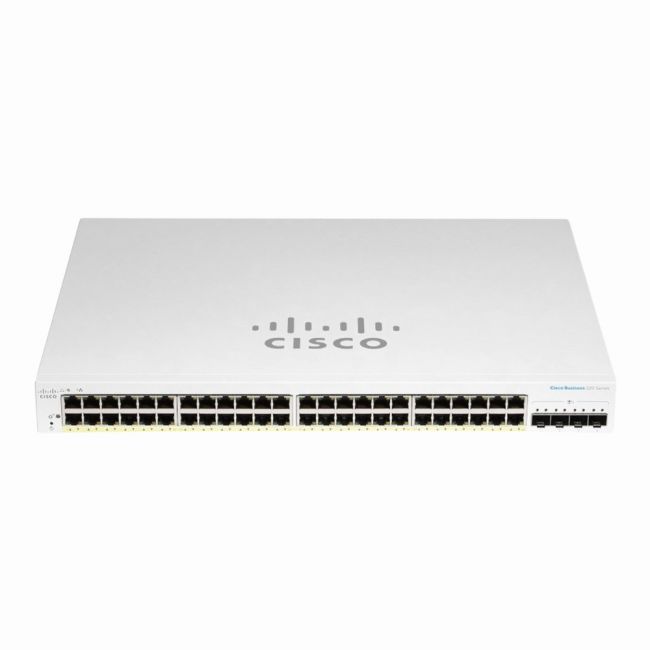

Name: CBS220-48P-4G Cisco 48-Port PoE+ Gigabit Switch with 4 SFP Layer 2 Managed
Brand: Cisco
SKU: CBS220-48P-4G
Price: 319.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Cisco Business 220 Series CBS220-48P-4G is a versatile managed switch designed to provide both network connectivity and power to devices in business environments. It fits well into networks requiring multiple Gigabit Ethernet connections with PoE+ support, combined with fiber uplinks for scalability and performance.

General Information
Brand	Cisco
Part Number	CBS220-48P-4G
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T
UpLink Ports	4
POE Support	PoE+
Switching Capacity	104 Gbps
Switch Forwarding Rate	203.125 Mpps
DRAM	512 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 2
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8000

Management and Configuration
Remote Protocols	Yes
Management Interfaces	Web GUI (Cisco Business), CLI (console/SSH), SNMP v1/v2/v3, RMON, REST (if supported)
Security	Yes
Remote Management Protocol	HTTP,HTTPS,SSH,SNMPv1/v2/v3,REST (if supported)

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, LLDP

Product Description
The Cisco Business 220 Series CBS220-48P-4G switch provides reliable network connectivity with Power over Ethernet capabilities, enabling both data and power delivery over a single cable. It’s commonly found in small to medium-sized business networks where efficient network management and device powering are essential. Built for IT managers and network administrators, this switch helps simplify network setups by combining multiple functions into one device. It’s often used to connect IP phones, wireless access points, and security cameras within office and retail environments. Key Features Supports 48 PoE+ ports delivering up to 30W per port for powering network devices Offers 4 SFP ports to expand fiber-based connections, enhancing flexibility Incorporates Layer 2 features such as VLANs, QoS prioritization, and link aggregation Provides easy-to-use web management interface for configuring and monitoring Rack-mountable design fits standard network racks, saving physical space This switch is typically deployed in office networks and small data centers where multiple powered devices need efficient management without complex infrastructure. It helps maintain organized network traffic and reliable power delivery, supporting daily operations smoothly.

Use Cases
The CBS220-48P-4G switch is commonly deployed in mid-sized business networks that require a reliable combination of data connectivity and power delivery over Ethernet. It suits environments where centralized management of network traffic and device power is critical, such as corporate offices, educational institutions, and retail locations with multiple PoE-enabled devices. How It's Used: Supporting VoIP phone systems in enterprise office environments with centralized power and network management. Providing network connectivity and power to wireless access points in educational campuses to ensure seamless coverage. Facilitating surveillance camera installations in retail or manufacturing settings, combining data and power in one infrastructure. Enabling fiber uplinks in data closets to connect distributed office floors or remote buildings with high-speed links. Deploying in small data centers or server rooms where scalable Layer 2 switching with PoE+ is required for network devices. This switch enhances operational efficiency by consolidating power and data over a single infrastructure, while its managed features support scalability and network segmentation. Its rack-mount design and fiber connectivity options enable integration into complex network topologies typical of business environments.
