C9800-L-F-K9

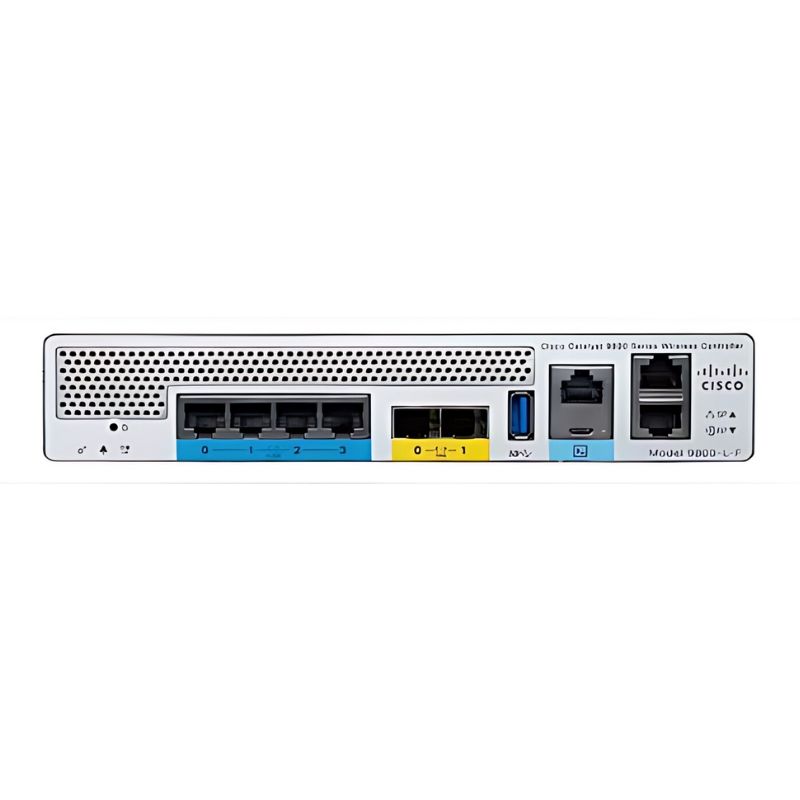

The Cisco Catalyst 9800-L C9800-L-F-K9 Wireless Controller is designed to provide reliable and scalable wireless network management for enterprises. This wireless LAN controller features a compact, rack-mountable design in a 1RU half-width chassis, making it ideal for space-constrained environments.

Equipped with two 10G/Multigigabit SFP+ fiber uplink ports and four 2.5G/1G Multigigabit Ethernet ports, the 9800-L supports high-speed connectivity to ensure seamless wireless performance. With a switching capacity of 5 Gbps, it can be upgraded to 10 Gbps with a performance license, making it adaptable to growing network demands. The controller has a forwarding rate of 7.44 Mpps, enabling efficient data processing for high-volume traffic.

Security is paramount in the Catalyst 9800-L, featuring Secure Boot, runtime defenses, image signing, and integrity verification. Additional capabilities include Encrypted Traffic Analytics (ETA) and Software-Defined Access (SD-Access), providing comprehensive security for enterprise networks.

The 9800-L supports extensive routing capabilities, with 32,000 IPv4 routing entries and 16,000 IPv6 routing entries. It also supports a large MAC address table of 32,000 entries and up to 4096 VLAN IDs, ensuring robust network segmentation and management. The fanless design enhances reliability and reduces noise, making it suitable for a variety of environments.

Key Features:

• Device Type: Wireless LAN Controller for enterprise wireless networks.
• Enclosure Type: Rack-mountable, 1RU half-width chassis for efficient space usage.
• Switch Ports: 2x 10G/Multigigabit SFP+ fiber uplink ports; 4x 2.5G/1G Multigigabit Ethernet ports.
• Switching Capacity: 5 Gbps (upgradable to 10 Gbps with performance license).
• Switch Forwarding Rate: 7.44 Mpps for high-speed data handling.
• Power Supply: 110W AC/DC adapter (C9800-AC-110W) for efficient power management.
• IPv4 Routing Entries: Supports up to 32,000 routes.
• IPv6 Routing Entries: Supports up to 16,000 routes.
• Jumbo Frame Support: Up to 9198 bytes for improved data transfer efficiency.
• Security Features: Secure Boot, runtime defenses, AES encryption, and SD-Access for comprehensive protection.
• DRAM: 8 GB for robust performance.
• Flash Memory: 16 GB for data storage.
• Compliant Standards: Supports IEEE 802.11ax, 802.11ac Wave 1 and Wave 2, 802.11n, 802.11a/b/g.
• Routing Protocols: Static, OSPF, BGP, PIM-SM for flexible networking.
• MAC Address Table: Supports 32,000 MAC addresses.
• VLAN IDs: Supports up to 4096 VLANs for network segmentation.
• Switch Power: 86.9W (with 4.5W USB load) for efficient energy consumption.
• Fans: Fanless design for quieter operation.
• Connector Type: SFP+ for fiber uplinks; RJ-45 for Ethernet ports.
• Remote Management Protocols: Cisco DNA Center, Cisco Prime Infrastructure, third-party open standards APIs.

The Cisco Catalyst 9800-L Wireless Controller is an exceptional choice for organizations looking to implement a robust, secure, and scalable wireless networking solution, ensuring reliable connectivity and management for demanding environments.
