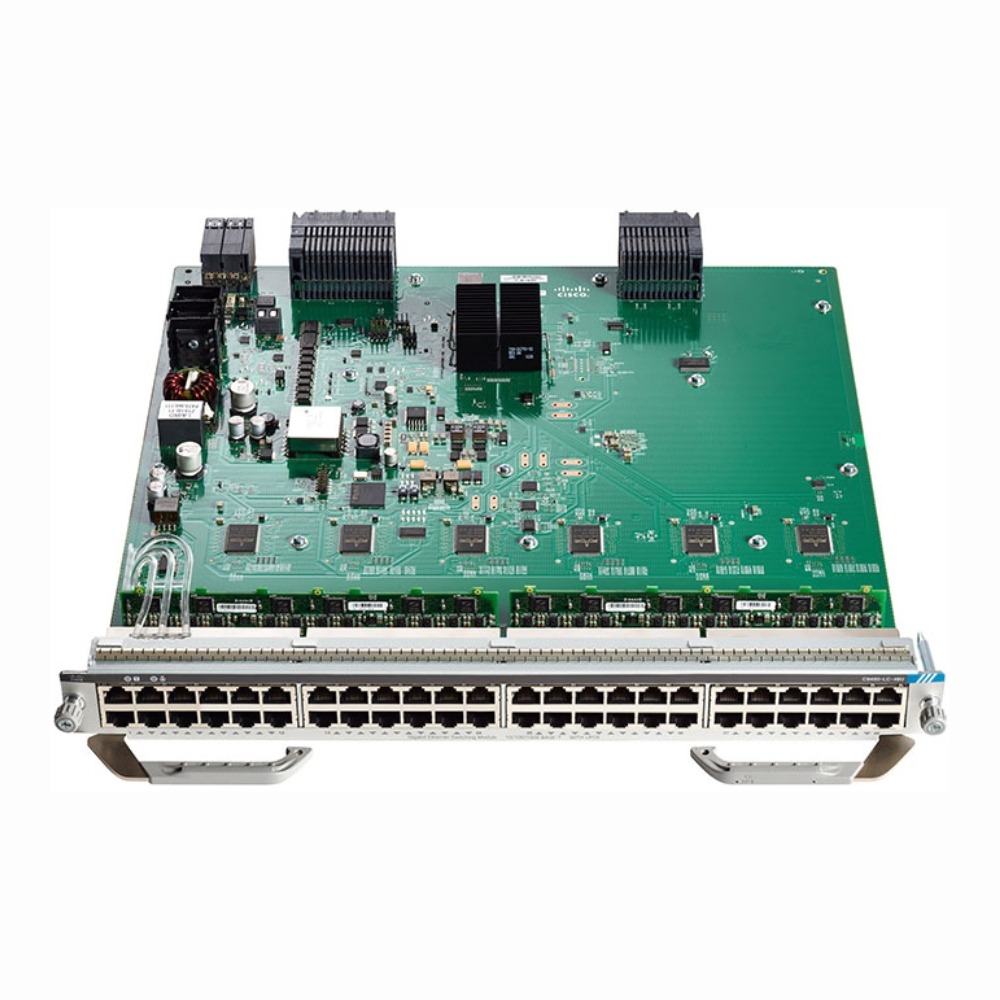

Name: C9400-LC-48H Cisco Catalyst 9400 Series 48 x RJ-45 Ports UPoE+ 10/100/1000Base-T Gigabit Ethernet Line Card
Brand: Cisco
SKU: C9400-LC-48H
Price: 3299.00 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Overview
The Cisco Catalyst 9400 Series 48-port UPoE+ line card delivers robust gigabit Ethernet connections and power over Ethernet capabilities within the modular 9400 chassis. It fits well in enterprise access networks where both high port counts and reliable power delivery are needed, helping to connect and power a variety of network devices efficiently.

General Information
Brand	Cisco
Part Number	C9400-LC-48H
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, RJ-45
Port Speed	10/100/1000Base-T
POE Support	PoE++
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	RJ-45

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, IS-IS, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps
Management Interfaces	CLI, Web UI, SSH, Telnet, Serial Console (RJ-45), USB Console, SNMP
Management Type	CLI, Web UI, SNMP, RESTCONF
Remote Management Protocol	SSH, SNMP, RESTCONF, NETCONF, HTTPS
Routing Protocol	Static,RIP,RIPng,OSPF,OSPFv3,EIGRP,BGP,IS-IS,VRRP,HSRP,GLBP,PIM-SM,PIM-DM,IGMP,MLD,Policy-Based Routing (PBR),Route Maps

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt

Product Description
The Cisco Catalyst 9400 Series 48-port line card provides high-performance connectivity for large enterprise networks. It is built for Cisco's modular 9400 chassis and is commonly used in access layer switches to connect devices requiring power and data via Ethernet. Often found in environments such as corporate campuses, data centers, and branch offices, this line card supports Power over Ethernet Plus (UPoE+) to power devices like IP phones, wireless access points, and security cameras directly through network cables. Key Features Delivers up to 60W power per port supporting a wide range of PoE devices Handles gigabit speeds with 10/100/1000Base-T Ethernet ports Integrates seamlessly with Cisco Catalyst 9400 chassis for flexible network expansion Offers high port density to streamline network infrastructure Supports advanced Cisco software features for enhanced security and management This line card is typically deployed in enterprise access layers where reliable, high-capacity network connections are essential. Its ability to supply power and data makes it a key component for powering edge devices without additional cabling. By combining power delivery and gigabit connectivity, it simplifies installations and supports growing network demands effectively.

Use Cases
The Cisco Catalyst 9400 Series 48-port UPoE+ line card is commonly deployed in large enterprise campus networks where high-density access and reliable power delivery are critical. It suits environments that demand scalable, resilient connectivity for a wide array of endpoints including IP phones, wireless access points, and security devices. Network architects and IT administrators in sectors such as education, healthcare, and corporate offices benefit from its modular design within the Catalyst 9400 chassis. How It's Used: Supporting high-density, wired access in university campus networks to power and connect thousands of devices across multiple buildings. Providing reliable power and connectivity to IP surveillance cameras and access control systems in large healthcare facilities requiring continuous operation. Enabling scalable port density for corporate office buildings with extensive VoIP phone deployments and wireless APs. Facilitating edge computing deployments by delivering power and data to IoT devices in smart manufacturing plants. Serving as a modular line card in data center access layers, connecting rack servers and storage clusters with consistent power and gigabit throughput. This line card enhances operational efficiency by consolidating power and data delivery over a single infrastructure, reducing cabling complexity. Its modularity within the Catalyst 9400 chassis supports network scalability and maintenance flexibility, meeting evolving enterprise access requirements without significant downtime.
