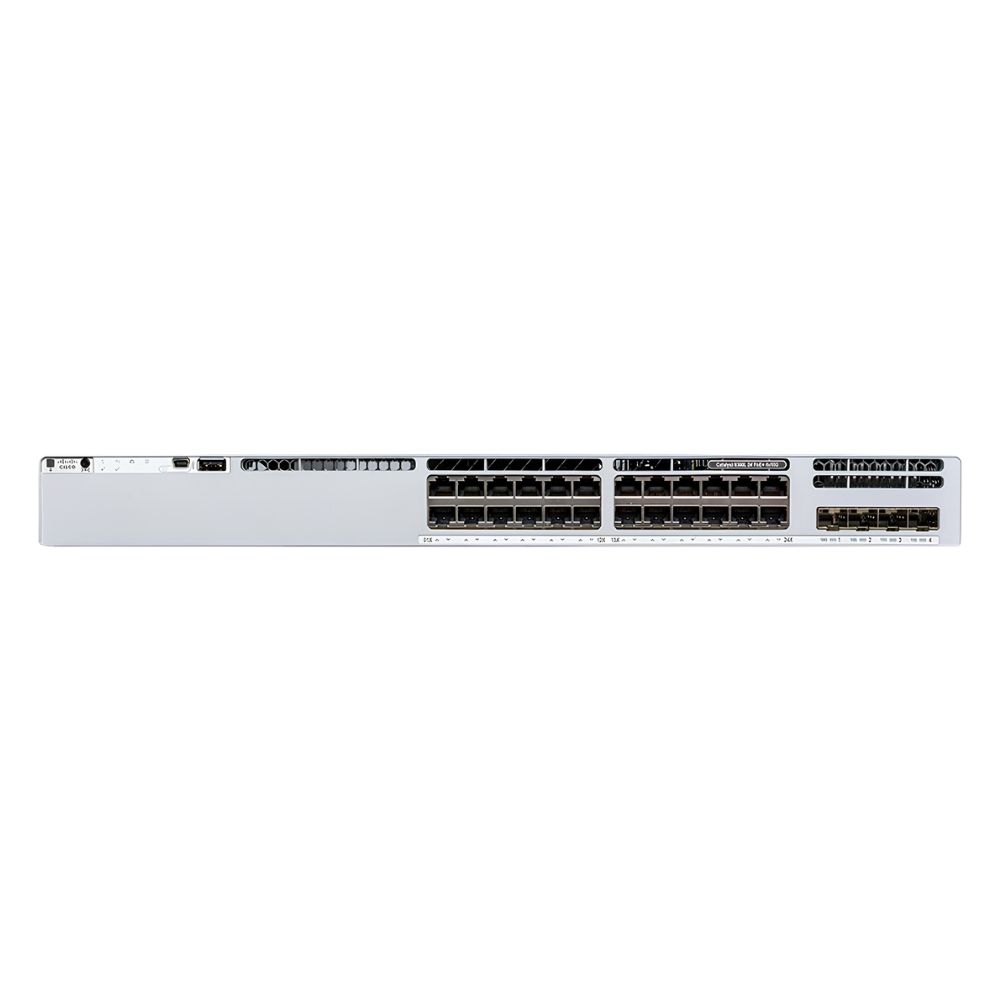

Name: C9300L-24UXG-4X-M Cisco Catalyst 9300L 24-Port Multigigabit Switch
Brand: Cisco
SKU: C9300L-24UXG-4X-M
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (125 reviews)

Product Overview
The Cisco Catalyst 9300L 24-Port Multigigabit Switch offers 24 Multigigabit Ethernet ports with diverse speed support and 4x 10 Gigabit SFP+ uplink ports, making it suitable for network access layers. It features integration with the Cisco Meraki platform, facilitating cloud-based network management within enterprise environments.

General Information
Brand	Cisco
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	24
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 10G SFP+, 2.5GBase-T, 5GBase-T
Port Speed	1G,2.5G,5G,10G
UpLink Ports	4 x 10G SFP+
POE Support	No
DRAM	4 GB
Flash Memory	16 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps
Remote Protocols	Yes
Management Interfaces	Console (RJ-45), USB Console, SSH, HTTP/HTTPS, SNMP v1/v2c/v3, RMON, NETCONF, RESTCONF, Cisco DNA Center
Security Features	802.1X, TACACS+/RADIUS, ACLs, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Control Plane Policing, MACsec (platform-dependent)
Management Type	CLI, Web GUI, SNMP, Cisco DNA Center
Security	Yes
Remote Management Protocol	SSH,HTTPS,SNMPv1/v2c/v3,NETCONF,RESTCONF

Power & Cooling
Fans	Variable-speed, front-to-back, field-replaceable fans
Power Supply	Internal fixed AC power supply

Physical Characteristics
Dimensions	1.73 x 17.5 x 17.5 inches (H x W x D)
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X

Product Description
The Cisco Catalyst 9300L 24-Port Multigigabit Switch (C9300L-24UXG-4X-M) is engineered to deliver scalable network access with enhanced throughput. It provides 24 Multigigabit Ethernet ports capable of supporting diverse speed requirements on a single network platform. The device includes four 10 Gigabit SFP+ uplink ports, enabling robust uplink connectivity suitable for aggregation or core connections. This switch is typically deployed in enterprise and campus networks where a high density of network access ports is needed, and integration with Cisco Meraki management is desired for streamlined operations. Network administrators and IT professionals use this switch to manage wired access while benefiting from flexible speed configurations. Key Features 24 Multigigabit Ethernet ports supporting various speeds for versatility. Four 10 Gigabit SFP+ uplink ports for extended network reach and performance. Integration with Cisco Meraki for centralized cloud-based management. Part of the Catalyst 9300L series tailored for access layer deployment. Supports advanced network protocols and features inherent to Cisco Catalyst switches. Overall, this switch addresses the needs of modern enterprise networks requiring adaptable port speeds and management flexibility. It plays a key role in enabling scalable, manageable, and high-performance wired access connectivity.

Use Cases
This switch is commonly used in enterprise campus networks and branch offices where adaptable wired connectivity and centralized management are required. It supports environments with mixed device speed demands and benefits IT teams managing network access at scale. How It's Used: Providing network access for offices with mixed-speed device requirements. Serving as an aggregation point with uplink connections to core networks. Enabling cloud-based management through Cisco Meraki for simplified network operations. Supporting high-density wired deployments in campus or branch locations. Integrating with existing Cisco Catalyst infrastructure for consistent network policies. In typical deployments, this switch functions as a scalable and manageable access layer device, enabling organizations to adapt port speeds according to device needs while benefiting from centralized management.

FAQ's
What speeds do the Multigigabit ports support? The 24 Multigigabit Ethernet ports support multiple speeds, including standard 1G and up to 10G, accommodating various device requirements on a single switch. What type of uplink ports does the C9300L-24UXG-4X-M have? It includes four 10 Gigabit SFP+ uplink ports designed for high-speed connectivity to aggregation or core network layers. Is this switch compatible with Cisco Meraki management? Yes, the switch is compatible with Cisco Meraki's cloud-based management platform, allowing centralized network administration. Which network layer is this switch intended for? The Catalyst 9300L 24-Port switch is designed primarily for network access layer deployments in enterprise and campus environments. Does this model support advanced Cisco network features? As part of the Catalyst 9300L series, it supports various advanced network protocols and features typical of Cisco Catalyst switches. Can it connect to existing Cisco Catalyst infrastructure? Yes, this switch integrates with existing Cisco Catalyst devices to maintain consistent network policies and configurations.
