| Product Overview |
|---|

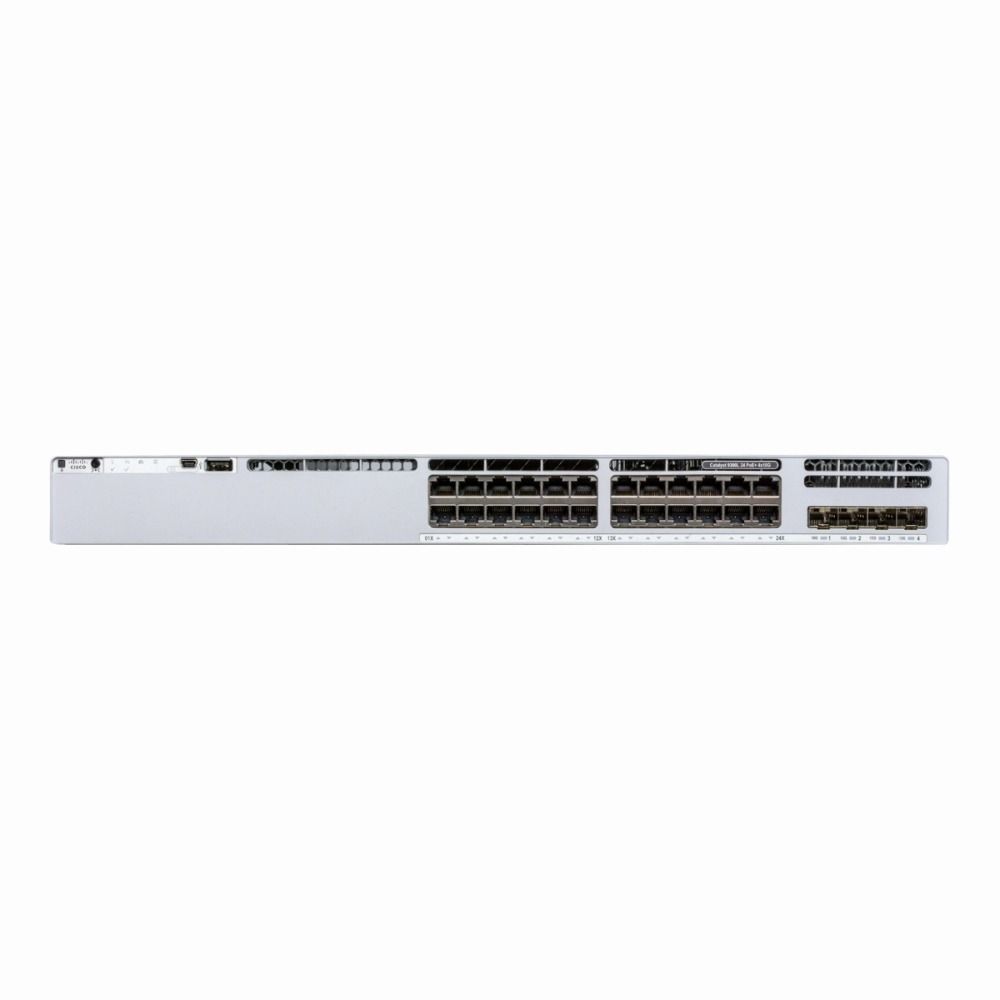

The Cisco Catalyst 9300L-24P-4X-E switch is a managed Layer 3 network device that combines 24 PoE+ Gigabit Ethernet ports with 4 SFP uplinks, providing both power and high-speed connectivity. It fits well in enterprise networks where powering edge devices and effective routing are important without adding complexity. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | C9300L-24P-4X-E |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x SFP (1G) |
| POE Support | PoE+ |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| NIM Slot | 1 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (SSH, Telnet), Web UI, SNMP, NETCONF, RESTCONF, USB, Console (RJ-45) |
| Security | Yes |
| Remote Management Protocol | SSH,Telnet,HTTPS,HTTP,SNMPv2c,SNMPv3,NETCONF,RESTCONF |
| Routing Protocol | Yes |
| Power & Cooling | |
|---|---|
| Fans | Redundant, field-replaceable variable-speed fans |
| Power | AC 100-240V, 50-60Hz |
| Power Supply | 1 x 715W AC |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 16.1 in (44 x 445 x 410 mm) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The Cisco Catalyst 9300L switch is built for enterprise networks requiring reliable power and data delivery. It’s often found in office buildings and campus environments where PoE+ is needed for devices like IP phones, wireless access points, and security cameras. Network administrators benefit from its Layer 3 features that enhance routing and traffic management within the LAN. Key Features
This switch is typically deployed in medium to large enterprise networks where stable PoE power and routing capabilities are critical. It plays a key role in simplifying network infrastructure by combining power delivery and advanced switching in a single unit, reducing the need for additional equipment. |
