| Product Overview |
|---|

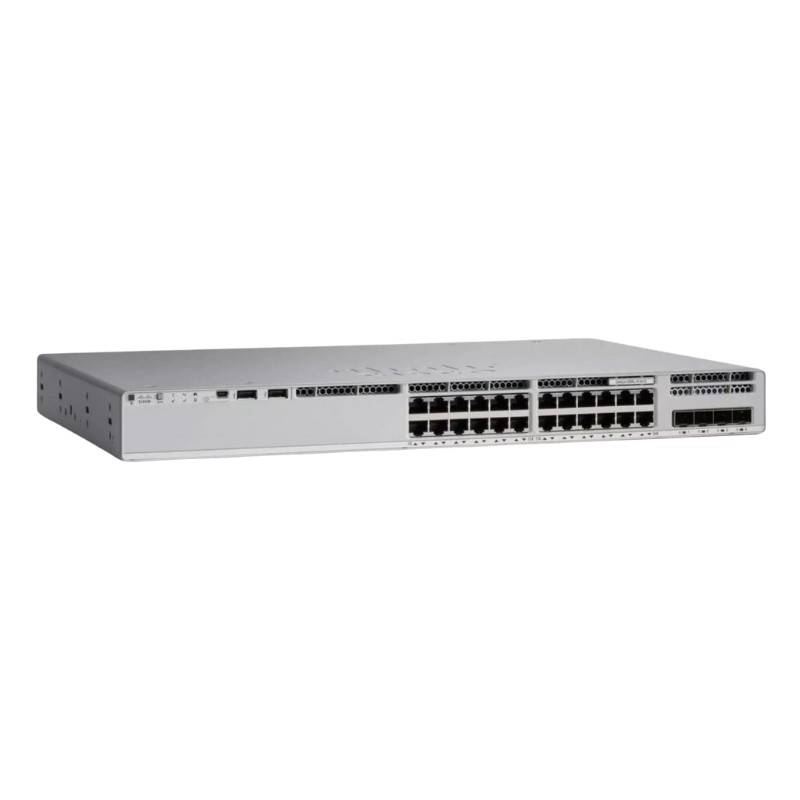

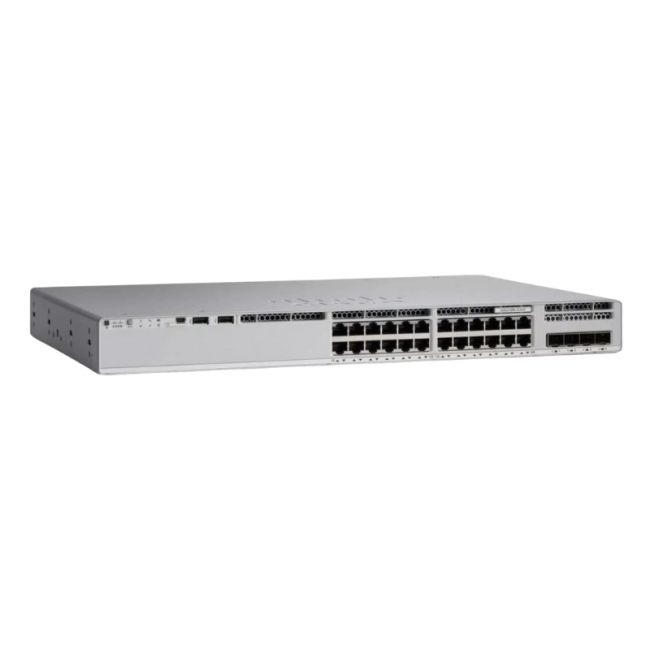

The Cisco Catalyst 9300L-24P-4G-A switch combines 24 PoE+ ports with 4 SFP uplinks, offering a versatile solution for businesses that need both power delivery and advanced networking. It fits into access layer deployments and smaller aggregation points, providing essential Layer 3 routing alongside managed switch features to keep enterprise networks running efficiently. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | C9300L-24P-4G-A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP |
| Port Speed | 10/100/1000 |
| UpLink Ports | 4 x SFP (1G) |
| POE Support | PoE+ |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,768 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, EIGRP, BGP, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (SSH),Web UI (HTTP/HTTPS),Serial Console (RJ-45),USB Console |
| Management Type | Local (CLI, Web UI),Remote (SSH, SNMP) |
| Security | 802.1X, MAB, RADIUS, TACACS+, MACsec (license-dependent) |
| Remote Management Protocol | SSH,HTTPS,Telnet,SNMP,NETCONF,RESTCONF |
| Routing Protocol | Layer 3: Static routing, RIP, OSPF, EIGRP, BGP (feature availability dependent on IOS/XE license), multicast support (PIM) |
| Power & Cooling | |
|---|---|
| Fans | Variable-speed, field-replaceable fan(s) (front-to-back airflow) |
| Power | Integrated AC power with PoE+ (802.3at) on 24 ports; PoE budget up to 370W (model/configuration dependent) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 in x 17.5 in x 17.5 in (4.4 cm x 44.5 cm x 44.5 cm) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3x |
| Product Description |
|---|
The Cisco Catalyst 9300L-24P-4G-A is a reliable network switch designed to deliver efficient power and data connectivity in enterprise environments. It is often found in office networks, data centers, and campus infrastructures where both power over Ethernet and advanced network management are required. Built for network administrators and IT teams, this switch offers an effective balance of performance and flexibility, handling both Layer 2 switching and Layer 3 routing tasks. It's commonly used to connect devices like IP phones, wireless access points, and computers, simplifying network deployment and management. Key Features
This switch is typically deployed in medium to large business networks where reliability and scalability are important. It helps maintain smooth network operations while supporting power needs for connected devices. |
