| Product Overview |
|---|

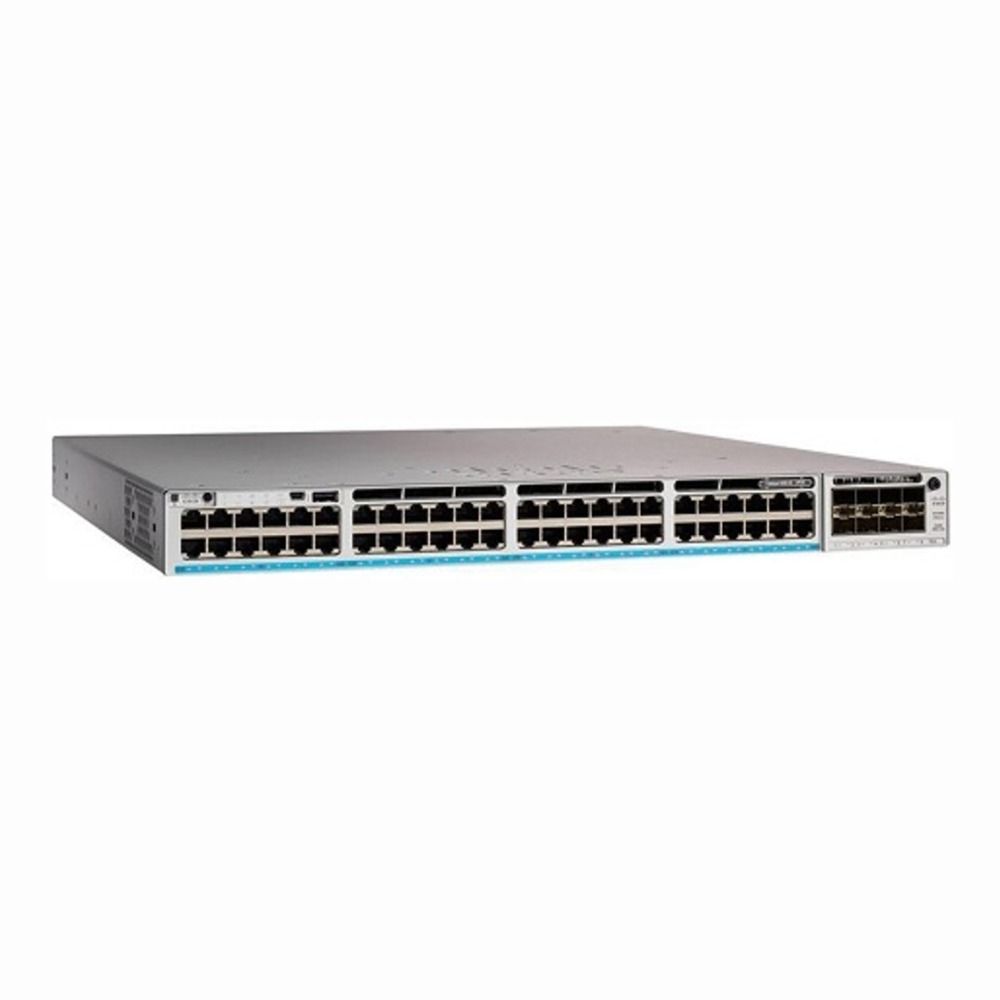

The Cisco Catalyst 9300L Series C9300-48UN switch integrates high-speed gigabit Ethernet with UPoE support, making it suitable for enterprise networks that demand both power delivery and advanced routing. It fits well in environments such as corporate data centers and office networks where space and performance are key considerations. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | C9300-48UN-A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 2.5GBase-T, 5GBase-T, RJ-45, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T,2.5GBase-T,5GBase-T |
| UpLink Ports | 4 |
| POE Support | PoE++ |
| Switching Capacity | 160 Gbps (non-blocking switching capacity), 480 Gbps (StackWise-480 stack bandwidth) |
| Switch Forwarding Rate | 95.24 Mpps |
| DRAM | 4 GB |
| Flash Memory | 16 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| NIM Slot | 1 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, IS-IS, VRRP, HSRP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Security | RADIUS, TACACS+, 802.1X, MACsec |
| Remote Management Protocol | SSH, SNMPv1/v2c/v3, NETCONF, RESTCONF, HTTP/HTTPS (Web UI), Telnet (legacy) |
| Routing Protocol | IPv4/IPv6 static routing, OSPF, EIGRP, BGP, RIP, Policy-Based Routing (PBR) |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable variable-speed fans (redundant, front-to-back or back-to-front) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.5 in (4.45 x 44.5 x 44.5 cm) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3,802.3u,802.3ab,802.3bz,802.3af,802.3at,802.3bt,802.1Q,802.1p,802.1X,802.3ad |
| Product Description |
|---|
The Cisco Catalyst 9300L Series switch provides a robust solution for high-speed network connectivity with advanced power over Ethernet capabilities. It's commonly used in enterprise environments where reliable and fast data transfer is essential for daily operations. Built for network administrators and IT professionals, this switch supports Layer 3 features to help manage complex network traffic efficiently. You’ll often find it deployed in data centers, large office networks, and environments requiring scalable, secure connections. Key Features
This switch is typically deployed in medium to large-scale networks where both power delivery and high data throughput are critical. It helps maintain stable network connections while supporting a variety of devices without extra power infrastructure. In practice, the Cisco Catalyst 9300L makes managing network traffic straightforward and reliable, which is vital for businesses that rely on consistent connectivity and secure data handling. |
