| Product Overview |
|---|

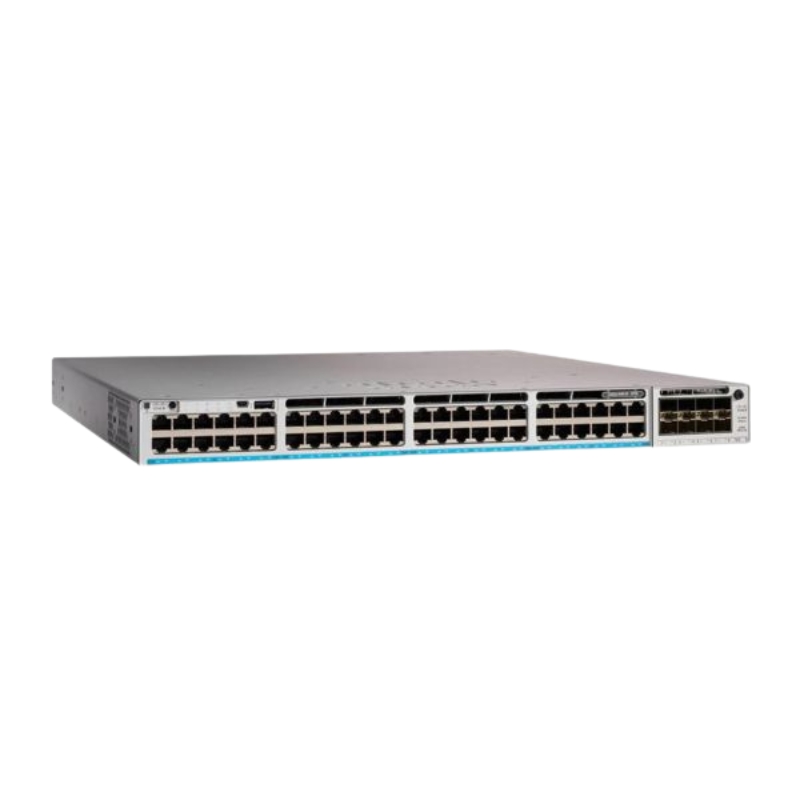

The Cisco Catalyst 9300 Series 48-port switch combines high-speed gigabit connectivity with the ability to supply power over Ethernet for connected devices. It fits neatly into standard racks and is designed to support complex network setups, especially in enterprise environments where managing data and device power over a single platform is essential. |
| General Information | |
|---|---|
| Brand | Cisco |
| Part Number | C9300-48H-E |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x 10G SFP+ |
| POE Support | PoE++ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 8 GB |
| Flash Memory | 16 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 (4094 VLANs) |
| NIM Slot | 1 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32,000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, PIM-DM, IGMP, MLD, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | Console (RJ-45), USB, Web UI, SSH, SNMP, RMON, RESTCONF |
| Security | 802.1X, MACsec, ACLs, Port Security |
| Remote Management Protocol | SNMP, SSH, HTTPS, RESTCONF, NETCONF |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.5 x 17.5 inches |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Product Description |
|---|
The Cisco Catalyst 9300 Series switch offers robust network connectivity with 48 ports capable of delivering both data and power through UPoE+. It's commonly used in enterprise networks to handle high traffic and support a variety of connected devices. Built for network administrators and IT professionals, this switch provides reliable performance and flexibility in managing network traffic and security. Often found in wiring closets or server rooms, it supports complex environments requiring Layer 3 routing. Key Features
This switch is typically installed in medium to large enterprise networks where both power delivery and network speed are critical. It plays a key role in keeping the network infrastructure efficient and scalable without needing extra cabling or power sources. |
