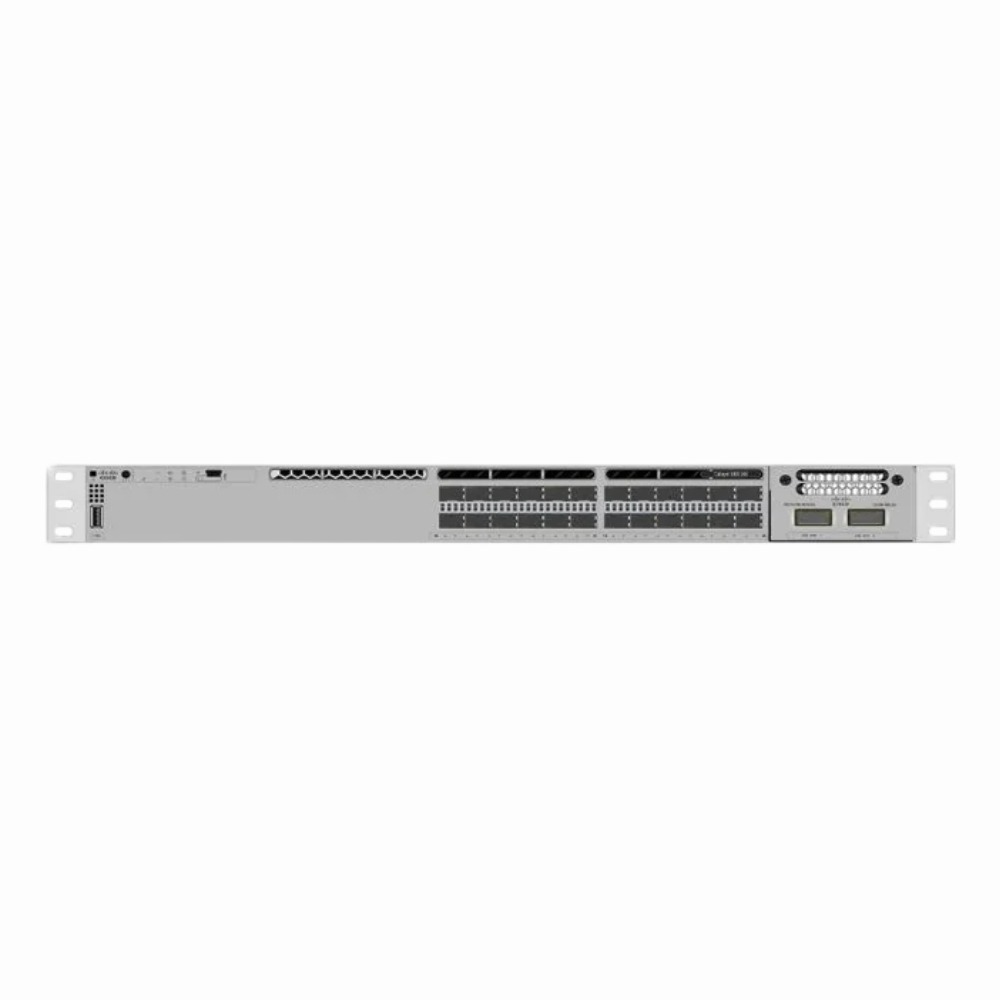

Name: C9300-24S-E Cisco Catalyst 9300 Series 24 x SFP Ports 10/100/1000Base-T Layer 3 Managed Rack-Mountable Gigabit Ethernet Network Switch
Brand: Cisco
SKU: C9300-24S-E
Price: 11200.00 USD
Availability: InStock
Rating: 4.8 (130 reviews)

Product Overview
The Cisco Catalyst 9300 Series 24 SFP switch provides fiber connectivity and Layer 3 managed capabilities, fitting well within enterprise network setups. It is suited to environments where flexible routing and robust, rack-mounted hardware are essential for maintaining efficient network communication.

General Information
Brand	Cisco
Part Number	C9300-24S-E
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	24-Ports
Port Type	SFP, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	1 Gbps (SFP ports), 10 Gbps (SFP+ uplinks)
UpLink Ports	4
POE Support	No
Switching Capacity	160 Gbps
Switch Forwarding Rate	95.23 Mpps
DRAM	4 GB
Flash Memory	16 GB
VLAN Support	Yes
Max VLANs Supported	4096
NIM Slot	1
Stackable	Yes
Layer Support	Layer 3
Connector Type	SFP,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, EIGRP, BGP, IS-IS, VRRP, HSRP, PIM-SM, IGMP, MLD
Remote Protocols	Yes
Management Interfaces	CLI (console/SSH), Web UI (GUI), SNMP v2/v3, Netconf, RESTCONF, RMON, Syslog
Remote Management Protocol	SSH,SNMP( v2/v3),HTTPS,NETCONF,RESTCONF
Routing Protocol	Static,RIP,RIPng,OSPF,OSPFv3,EIGRP,BGP,IS-IS,VRRP,HSRP,PIM-SM,IGMP

Power & Cooling
Fans	2 (front-to-back, field-replaceable)
Power Supply	350W AC

Physical Characteristics
Dimensions	1.73 x 17.5 x 17.5 inches
Weight	5.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1p, IEEE 802.1X, IEEE 802.1D, IEEE 802.1w

Product Description
The Cisco Catalyst 9300 Series switch offers reliable and scalable network performance with 24 SFP ports for fiber connections. It's commonly used in enterprise environments to handle high-speed data traffic and provide flexible network management. Built for IT teams managing medium to large networks, this switch is often found in wiring closets or central network hubs. It supports advanced Layer 3 features, allowing for efficient routing between different subnets and improving overall network efficiency. Key Features Provides 24 fiber SFP ports for versatile uplink options Includes Layer 3 capabilities to support routing protocols Designed for mounting in standard 19-inch racks Offers high throughput with gigabit Ethernet speeds Enables network segmentation and improved traffic management This switch is typically deployed in enterprise campuses, data centers, or large office networks where reliable fiber connections and routing features are needed. It helps in maintaining a stable network infrastructure and simplifies management tasks for IT professionals.

Use Cases
The Cisco Catalyst 9300 Series 24 SFP switch is typically deployed in enterprise environments requiring robust fiber connectivity and advanced Layer 3 routing capabilities. It is particularly beneficial for IT teams managing scalable network infrastructures where high availability and flexible routing are critical. How It's Used: Supporting enterprise campus networks with high-density fiber uplinks for seamless aggregation and distribution layers. Deploying in data center access layers to connect virtualization clusters with reliable gigabit fiber links. Enabling remote office connectivity with Layer 3 routing to simplify WAN edge management and traffic segmentation. Integrating into storage area networks (SAN) requiring stable fiber interfaces and low-latency transport. Implementing network segmentation and security zones within large organizations through advanced routing features. This switch enhances operational efficiency by consolidating fiber-based connectivity and routing functions into a single platform, facilitating scalable network growth and simplified management in demanding enterprise settings.
