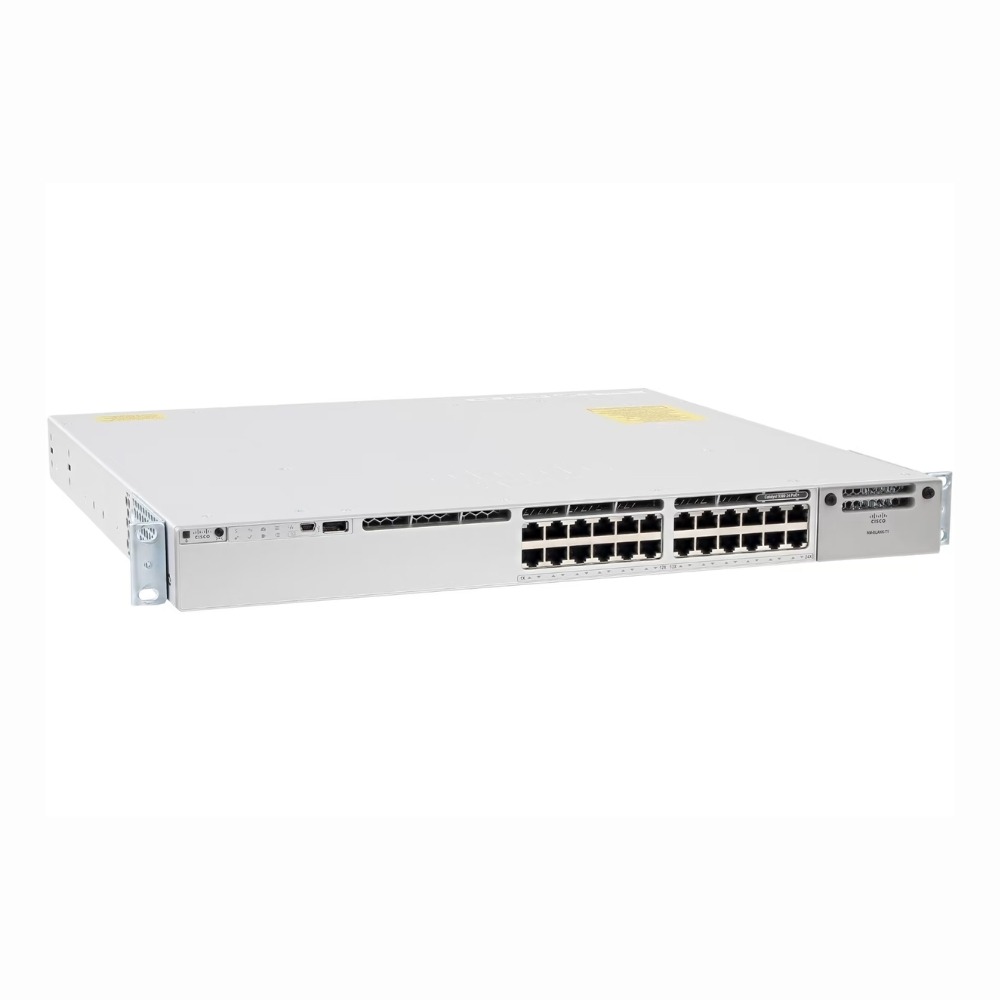

C9300-24P-E Cisco 24-Port PoE+ Gigabit Layer 3 Managed Network Switch

SKU:
C9300-24P-E
Weight: 5.00 lbs
Condition: Refurbished
  • 24 PoE+ ports delivering up to 30W each for powering devices
  • Supports Gigabit Ethernet speeds for fast, reliable connectivity
  • Layer 3 managed switch with advanced routing capabilities
  • Rack-mountable design for easy integration into network cabinets
In stock

$1,949.00

Product Overview

The Cisco Catalyst 9300-24P-E is a managed Ethernet switch designed to provide reliable network connectivity with power delivery over Ethernet. It fits well in enterprise and campus network environments where powering devices directly through the switch and managing traffic with Layer 3 routing is needed. Its rack-mount design allows easy installation in network closets or data centers.

General Information

Brand Cisco
Part Number C9300-24P-E
Condition Refurbished

Technical Information

Switch Ports 24
Number of Ports 24-Ports
Port Type 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45)
Port Speed 10/100/1000 Mbps
UpLink Ports 4 x SFP (1G)
POE Support PoE+
Switching Capacity 160 Gbps
Switch Forwarding Rate 95.23 Mpps
DRAM 4 GB
Flash Memory 16 GB
VLAN Support Yes
Max VLANs Supported 1-4094
NIM Slot 2
Stackable Yes
Layer Support Layer 3
Connector Type RJ-45,SFP,USB Console,Serial Console (RJ-45)

Performance

Jumbo Frame Support Up To 9216 Bytes
MAC Address Table Size 32768

Management and Configuration

Routing Protocols Static, RIP, OSPF, OSPFv3, EIGRP, BGP, VRRP, HSRP, GLBP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps
Remote Protocols Yes
Management Interfaces CLI (Console, SSH),Web UI,SNMP,NETCONF,RESTCONF
Remote Management Protocol SSH,HTTPS,HTTP,SNMP,NETCONF,RESTCONF
Routing Protocol OSPFv2/v3, EIGRP, BGP, RIP, Policy-Based Routing (PBR), VRF

Power & Cooling

Fans Front-to-back variable-speed fans (field-replaceable fan trays)

Physical Characteristics

Dimensions 1.73 x 17.5 x 16.9 in (4.4 x 44.5 x 43.0 cm)
Weight 5.00
Operating Temperature 0°C to 40°C (32°F to 104°F)

Miscellaneous

Eco Friendly Yes
Compliance Standards WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3az


Product Description

The Cisco Catalyst 9300 Series switch offers a robust foundation for network connectivity, providing 24 PoE+ gigabit ports designed to power devices like IP phones, wireless access points, and cameras directly through the network cable. Often found in enterprise environments, this switch is built for demanding settings that require both high performance and flexibility.

Typically deployed in campus networks, branch offices, or data centers, it helps network administrators manage traffic efficiently with Layer 3 features and enhanced security options. IT professionals benefit from its reliability and scalability, streamlining network operations and device management.

Key Features

  • Power over Ethernet Plus on all 24 ports to support connected devices without extra cabling
  • Gigabit Ethernet connectivity ensuring smooth data transfer and reduced bottlenecks
  • Advanced Layer 3 routing capabilities for managing complex network traffic
  • Compact rack-mountable form factor suitable for standard network racks
  • Comprehensive management options enabling easy configuration and monitoring

This switch is commonly seen in enterprise networks where powering edge devices and high throughput are essential. It plays a key role in supporting unified communications and network security, making daily operations more efficient and reliable.


Use Cases

The Cisco Catalyst 9300-24P-E is commonly deployed in enterprise campus networks and medium to large office environments where high-density, power-over-Ethernet connectivity is required. IT teams managing wireless access points, IP telephony, and security cameras benefit from its integrated Layer 3 routing and PoE capabilities.

How It's Used:

  • Providing PoE+ power and Gigabit connectivity to IP phones and wireless access points in corporate branch offices.
  • Enabling secure, segmented traffic routing within campus LANs for different departments or user groups.
  • Supporting edge computing devices and IoT sensors in smart building deployments requiring centralized power management.
  • Integrating with wireless controllers and network management systems in educational institutions to streamline network operations.
  • Facilitating network expansion in data closet rack deployments where scalable Layer 3 switching improves traffic handling.

This switch enhances operational efficiency by delivering consistent power and fast data throughput to connected devices while supporting advanced routing protocols. Its rack-mount form factor and enterprise features enable scalable network architectures that can adapt as organizational needs evolve.
